Garmin GPSMAP 9213xsv Premium Chartplotter and Sonar Combo with Navionics+

GPSMAP 9213xsv Premium Chartplotter/Sonar Combo with Garmin Navionics+

PARADISE STARTS HERE

Its the integrated 4K touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Features:

• Premium 4k IPS sunlight-readable touchscreen display


• Up to 7 times faster processing power than previous generations


• See fish like never before with our best sonar ever


• Supports Garmin Navionics+ charts with Auto Guidance+ technology¹



• Gigabit speeds on the Garmin Bluenet network


• Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The 4K IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

High-Definition Sonar

Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin RapidReturn sonar. Excellent target separation helps you see crisp and clear fish targets all around.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars and enjoy gigabit-speed

EntertainmentOptions

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Garmin Sailassist Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.

Connect

• Software Updates: Get wireless software updates via the ActiveCaptain app with your compatible smartphone or tablet.


• Engine Monitoring: Keep tabs on engine performance with extensive engine integration.


• Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).


• Premium Charts: Get support for Garmin Navionics Vision+ charts with premium relief shading and satellite imagery.


• Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.


•
  Autopilot:Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.


• Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.


• Wireless Connectivity: Connect compatible devices with integrated Bluetooth and ANT technologies.


• Fish Mapping: Get comprehensive fishing data with the Fish Mapping feature from SiriusXM Radio (accessory purchase and subscription required).


• Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix smartwatch.


• Weather-Resistant:


• The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

Whats In The Box

• GPSMAP 9213xsv premium chartplotter


• Power cable


• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network


• Bail mount with knobs


• Flush mount kit


• Protective cover


• Trim piece snap covers


• Documentation

Specifications:

General:

• Dimension: 13.2 x 9.19 x 3.56


• Weight: 9.1 lbs


• Water Rating: IPX7


• Touchscreen: Yes


• Display Type: 4K, IPS; Mini LED (Local Dimming) backlight


• Display Size: 11.57 x 6.50 x 13.27 diagonal


• Display Resolution: 3840 x 2160 pixels


• Mounting Options: Bail, flat, or flush


• Input: Touchscreen


• Polarized Lens Viewability: Yes

Maps Memory:

• Accepts Data Cards: 2 microSD cards (on rear of product)


• Supports USB Card Reader: Yes


• Waypoints: 5,000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALILEO: Yes


• BEIDOU: Yes


• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GCV Black Box Sonar Support: Yes


• Activecaptain Compatible: Yes


• Supports Voice Commands: Yes


• GRID (Garmin Remote Input Device) Compatible: Yes


• GRID 20 Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc


• Typical Current Draw at 12Vdc: 3.6A


• Maximum Current Draw at 12Vdc: 4.14A


• Maximum Power Usage at 10Vdc: 44w

Sonar Features:

• Display Sonar: Yes


• Power Output: 1 kW


• Traditional Sonar (Dual Frequency/Beam): yes (dual 1 kW)


• Supports Built-In xCHIRP: Yes


• Supports Built-In RapidReturn: Yes (up to 2x)


• Clearv: Yes


• Sidev: Yes


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (RX) Ports: 1


• NMEA 0183 Output (TX) Ports: 1

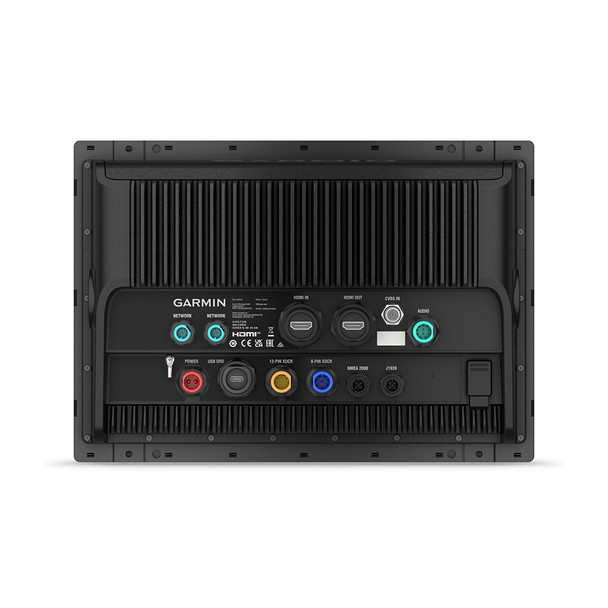

• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• J1939 Ports: 1


• Garmin Bluenet Networks Ports: 2


• USB Ports: yes (1x USB-C)


• Bluetooth Pairing: Yes


• ANT (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes


• Wi-Fi Frequency Bands: 2.4 GHz 5 GHz


• Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 9213xsv is a high-performance marine chartplotter and sonar system designed for serious anglers and vessel captains. Featuring an 11.6-inch 4K IPS sunlight-readable touchscreen with edge-to-edge display, it offers crystal-clear visuals and intuitive operation in all lighting conditions. Its advanced processing speeds—up to seven times faster than previous models—allow for rapid chart rendering, real-time sonar imaging, and quick route calculations using Auto Guidance+ technology when paired with a Garmin Navionics+ subscription. This premium device supports multiple mapping options, including Garmin Navionics Vision+ charts with satellite imagery and relief shading, ensuring navigational precision in diverse marine environments.

Built-in high-definition sonar capabilities include a 1 kW xCHIRP transducer, Garmin RapidReturn, and support for Panoptix and Livescope sonar systems, enabling detailed underwater imaging and target separation. The device’s network capabilities extend to Garmin Bluenet, facilitating gigabit-speed connections for integrating multiple chartplotters, cameras, radars, and other compatible devices across your vessel. Additionally, the GPSMAP 9213xsv offers extensive entertainment options, including audio and video streaming throughout your network, providing a seamless onboard multimedia experience.

Sailing and navigational features are enhanced with Garmin Sailassist tools such as laylines, race start guidance, wind rose, tide, and current data, along with a comprehensive polar table for optimizing sail trim. The system supports extensive system integration via NMEA 2000, allowing connection with engine monitors, autopilots, and other accessories. Wireless updates, Bluetooth, ANT, and Wi-Fi connectivity enable remote control, software updates, and device pairing, while the IPX7 water resistance rating ensures durability in harsh marine conditions. The package includes a robust set of mounting options, power and backbone cables, and a protective cover, making it ready for installation on a variety of vessels.

Designed with user convenience and durability in mind, the Garmin GPSMAP 9213xsv offers advanced navigation, sonar, and network features wrapped in a sleek, modern interface. Whether for fishing, cruising, or racing, this premium chartplotter delivers reliable performance and detailed insights to enhance your marine experience.

Features:

• Premium 4K IPS sunlight-readable touchscreen display for clear visibility

• Processing speeds up to 7 times faster than previous models for quick charting and routing

• High-definition sonar with 1 kW xCHIRP, Garmin RapidReturn, and support for Livescope and Panoptix sonar systems

• Supports Garmin Navionics+ and Vision+ charts with Auto Guidance+ technology for precise navigation

• Garmin Bluenet network compatibility for connecting multiple chartplotters, cameras, and radars at gigabit speeds

• Advanced sailing features including laylines, race guidance, wind rose, tide, and polar data for competitive sailing

• Built-in dual-frequency 10 Hz GPS for accurate positioning and navigation

• Extensive connectivity options including Bluetooth, ANT, Wi-Fi, HDMI, and NMEA 2000/0183 compatibility

• Supports wireless software updates, remote control via compatible Garmin devices, and voice commands

• Durable IPX7 water-resistant design suitable for harsh marine environments

• Includes mounting hardware, power cable, backbone/drop cable, protective cover, and documentation for installation
