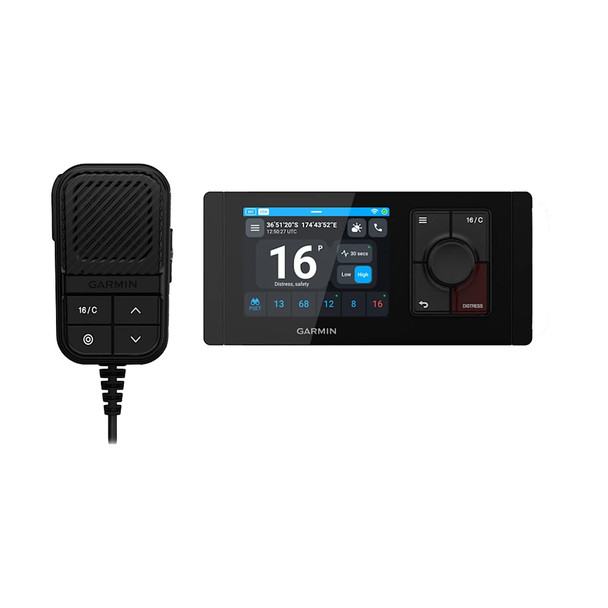

Garmin Signal 220 VHF Radio with Built-In AIS Receiver – Marine Communication and Navigation

Signal 220 VHF Radio with Built-In AIS Receiver

Built-In AIS

Stay aware of the water with built-in AIS receive capabilities. This feature shows you range, course, speed, and the crossing situation of other AIS-equipped vessels around you to help you navigate.

Sleek Design

The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.

Clear Simple Communication

Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.

Stay Connected

Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels; simply select the vessel on the AIS plotter view, and call them with a tap of a button.

Easy To Update

Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain smartphone app via built-in Wi-Fi connectivity.

Installation Is A Breeze

Installation is simple since VHF/DSC/AIS features only require a single VHF antenna, and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000 network and Garmin BlueNet Network.

VHF Features:

• All U.S., Canadian, and International marine channels, NOAA weather channels
• Adaptive noise cancellation
• Audio record and playback
• Auto squelch
• Dual/Tri watch
• Presets watch
• NOAA weather alert
• NOAA weather watch
• Loud hailer
• Loudhailer listen back
• Intercom support
• AIS target display
• AIS collision and MOB alarms

Specifications:

• Unit size: Head Unit: 75 x 160 x 104 mm (3.0 x 6.3 x 4.1)
• Fist Mic: 100 x 60 x 31 mm (3.9 x 2.4 x 1.2)
• Weight: Head Unit: 655 g (1.45 lbs), Fist Mic: 245 g (0.54 lbs)
• VHF transmit power (max): 25 W, 1 W (high, low)
• Operating voltage: 9.6 - 32 VDC
• Water rating: IPX7
• Display Type: color IPS LCD, capacitive touch
• Display Size: 3.5 (89 mm)
• Display resolution: 640 x 480 pixels
• Operating temperature: 20 to 55 C (4 to 131 F)
• Inland waterways (ATIS): yes
• Backlight: 1,000 nits
• Multi-language interface: yes

In the Box:

• Garmin Signal VHF 220 head unit
• Fist mic
• Sun cover
• Head unit power and external audio cable with fuse (2 m)
• Fist mic power cable with fuse (2 m)
• Drop cable for NMEA 2000 network (2 m)
• Mounting hardware
• Mounting template
• Documentation

The Garmin Signal 220 VHF Radio with Built-In AIS Receiver is an essential communication device designed for modern mariners seeking reliable and integrated vessel communication. Featuring a compact, sleek design with edge-to-edge glass, this radio minimizes helm clutter while offering advanced features to enhance safety and navigation. Its built-in AIS receiver provides real-time data on surrounding vessels, including range, course, speed, and crossing situations, helping you make informed navigational decisions in busy waterways. The integration of AIS allows for enhanced situational awareness, reducing the risk of collisions and improving overall voyage safety.

This VHF radio offers clear and simple communication with automated squelch, audio playback for missed messages, and advanced watch modes that allow you to monitor multiple channels efficiently. The quick access distress button, utilizing Class D DSC, allows for automatic transmission of crucial information during emergencies, while the intuitive DSC controls facilitate rapid contact initiation with AIS-equipped vessels at the tap of a button. The device’s Wi-Fi connectivity enables straightforward configuration, MMSI programming, and over-the-air software updates via the Garmin ActiveCaptain app, ensuring your radio remains up-to-date and fully functional.

Installation is simplified with a single VHF antenna connection and a built-in GPS receiver, eliminating the need for multiple external components. Seamless integration with chartplotters is possible through NMEA 2000 and Garmin BlueNet networks, providing a unified navigation experience. The Garmin Signal 220 features a color IPS LCD touchscreen with high brightness and resolution for easy operation even in bright sunlight. Its robust IPX7 water rating guarantees durability in harsh marine environments, while features like NOAA weather alerts, adaptive noise cancellation, loud hailer, and intercom support enhance onboard communication. This comprehensive VHF radio is ideal for vessel owners who prioritize safety, connectivity, and ease of use in their marine communication systems, making it a versatile addition to any boat's navigation suite.

Features:

• Built-In AIS receiver for real-time vessel tracking and collision avoidance

• Edge-to-edge glass touchscreen display for intuitive control

• Automated squelch and audio playback for clear communication

• Class D DSC with quick distress button for emergency signaling

• Seamless Wi-Fi connectivity for updates and MMSI programming via the ActiveCaptain app

• Simple installation with integrated GPS receiver and single VHF antenna connection

• NMEA 2000 and Garmin BlueNet network compatibility for chartplotter integration

• High-brightness color display with capacitive touch interface

• Waterproof design with IPX7 rating for durability in marine environments

• Includes microphone, sun cover, mounting hardware, and comprehensive documentation
