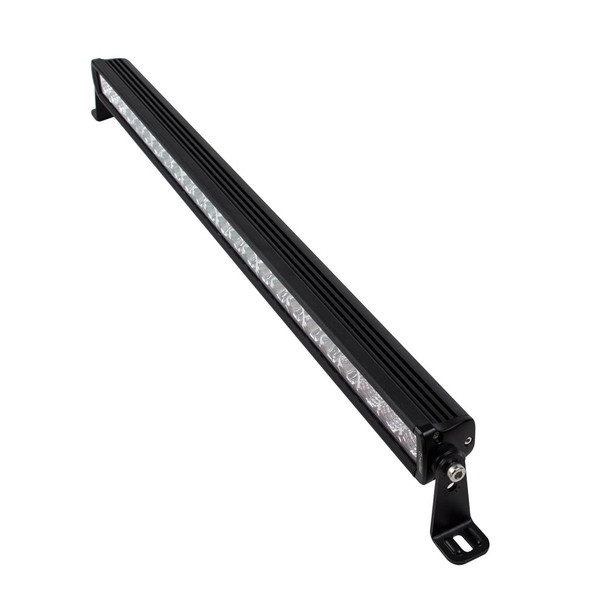

HEISE LED Lighting Systems 32-Inch Single Row Slimline LED Light Bar - Bright Combo Beam

Single Row Slimline LED Light Bar - 32"

SPECS

• Input Voltage: 1030V DC


• Wattage: 72W (243W OSRAM LEDs)


• Raw Lumens: 5760


• LUX @ 10M: 2200


• Color Temperature: 6000K


• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum


• Housing Color: Black


• Membrane: Gore


• Lens Material: PC


• Mounting Bracket: Diecast Aluminum


• Mounting: Side and Bottom


• Hole Dimensions:

• Brackets turned inward 31.75"


• Brackets turned outward 33.75"


• Mounting Bolt Drill .25"

• Height of Light Bar Itself: 2"


• Depth of Light Bar Itself: 2"


• Electronics: IntegratedEpoxy Encapsulated


• Hardware: Stainless 316

OPERATION

• Operating Temperature: 40C to +60C


• Current Consumption: 4 amps @ 13.8 volts


• IP Rating: IP67


• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-SL32 32-inch single row slimline LED light bar is designed to deliver powerful illumination for a variety of vehicle applications. Constructed with a durable powder-coated aluminum housing and a PC lens, this light bar offers excellent resistance to harsh environmental conditions. Its sleek black finish complements any vehicle setup while providing a robust protective enclosure with Gore membrane and stainless steel hardware for long-lasting performance. Equipped with OSRAM LEDs consuming 72W and generating a raw lumen output of 5760, the light bar ensures bright, wide coverage with a combination beam pattern that includes flood (90°) and spot (8°) modes. The integrated electronics are epoxy encapsulated for added protection, and the entire unit is rated IP67, making it suitable for demanding off-road and work site conditions. The mounting brackets, made of diecast aluminum, allow versatile side and bottom mounting options, with bolt holes designed for 0.25-inch drill sizes and adjustable bracket angles, turning inward or outward for optimal positioning. This light bar operates efficiently within a temperature range of 40°C to +60°C, drawing only 4 amps at 13.8 volts, and includes reverse polarity protection for added safety. Whether for off-road adventures, work trucks, or emergency vehicles, the HEISE 32-inch LED light bar offers high-performance illumination with a professional-grade build quality. Please note that this product contains chemicals known to the State of California to cause reproductive harm, as detailed at P65Warnings.ca.gov. Proper installation and use are recommended to maximize lifespan and lighting performance.

Features:

• Powerful combination beam pattern for versatile illumination (Flood 90°, Spot 8°)

• Durable powder-coated aluminum housing with Gore membrane for weather resistance

• High-efficiency OSRAM LEDs generating 5760 lumens at 72W

• IP67 rated for water and dust resistance in demanding environments

• Flexible mounting options with side and bottom brackets made of diecast aluminum

• Integrated epoxy-encapsulated electronics for enhanced durability

• Stainless steel hardware ensures corrosion resistance and long-lasting performance

• Operating temperature range from 40°C to +60°C for reliable use in various climates

• Reverse polarity protection for safer operation
