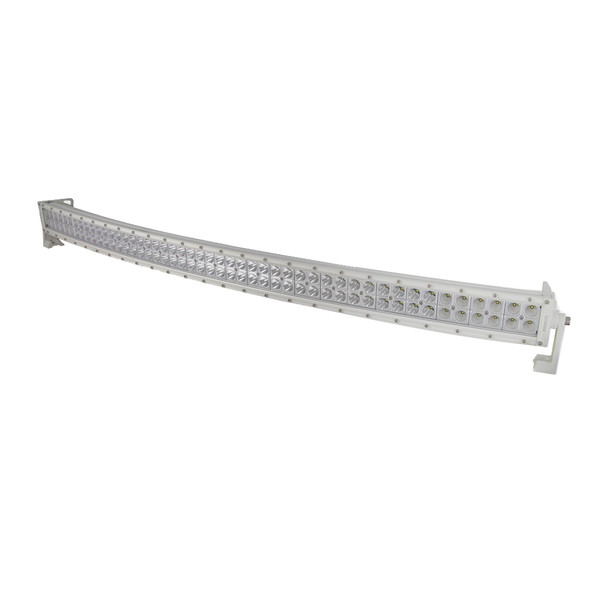

HEISE LED Lighting Systems Dual Row Marine Curved 42-Inch LED Light Bar

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC


• Wattage: 240 W


• (80-3WCREELEDs)


• Raw Lumens: 19200


• LUXat 10M: 780


• Color Temperature: 6000K


• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing


• Housing Color: White Coating with UV Inhibitors


• Membrane: Gore


• Lens Material: PC


• Mounting Bracket: Die-Cast Aluminum


• Hole Dimensions:

• Brackets Turned Inward 41 inches


• Brackets Turned Outward 43.5 inches


• Mounting Bolt Drill 25 inches

• Height of Light Bar Itself: 3 inches


• Depth of Light Bar Itself: 3.5 inches


• Electronics: Integrated-Epoxy Encapsulated


• Hardware: Stainless 316

Operation

• Operating Temperature: 40 degrees C to +60 degrees C


• Current Consumption: 12 Amps at 13.8 Volts


• IP Rating: IP67


• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-MDRC42 is a 42-inch dual-row marine LED light bar designed to provide powerful illumination for boats and marine applications. Featuring a die-cast aluminum housing with a durable white UV-inhibiting coating, this light bar is built to withstand harsh marine environments. The high-performance PC lens and Gore membrane ensure optimal light output and weather resistance. With an integrated epoxy-encapsulated electronics system, the light bar offers reliable operation across a wide temperature range, from 40°C to +60°C. The stainless steel 316 hardware further enhances durability, making it suitable for demanding marine conditions. The light bar's versatile beam pattern includes a combo/flood (90 degrees) and a spot (8 degrees), delivering a combined raw lumen output of 19,200 for excellent visibility and safety during night-time or low-light conditions. Its compact height of 3 inches and depth of 3.5 inches allow for flexible mounting options on boats, while the adjustable brackets accommodate different mounting widths from 41 to 43.5 inches. Operating at 10-30V DC and consuming approximately 12 amps at 13.8 volts, this LED light bar is energy-efficient yet highly effective. It also features reverse polarity protection and an IP67 rating, ensuring protection against water and dust ingress. Whether for navigation, docking, or off-road adventures, the HEISE HE-MDRC42 provides robust illumination and reliable performance in marine environments.

Features:

• Input Voltage: 10-30V DC for versatile power compatibility

• Wattage: 240W with high-efficiency LED chips

• LED Count: 80 three-watt Cree LEDs for bright illumination

• Raw Lumens: 19,200 for maximum brightness

• Lux at 10 meters: 780 for intense beam intensity

• Color Temperature: 6000K providing bright white light

• Beam Pattern: Combo/flood (90 degrees) and spot (8 degrees) for versatile lighting

• Housing Material: Die-cast aluminum with UV-inhibiting coating for durability

• Lens Material: Polycarbonate designed to withstand impacts and UV exposure

• Mounting Bracket: Die-cast aluminum for secure installation

• Adjustable Mounting Width: Inward brackets 41 inches, outward brackets 43.5 inches

• Height and Depth: Compact profile at 3 inches high and 3.5 inches deep

• Electronics: Epoxy-encapsulated for enhanced protection

• Hardware: Corrosion-resistant stainless steel 316

• Operating Temperature: -40°C to +60°C for reliable operation in various conditions

• Current Consumption: Approx. 12 amps at 13.8 volts for energy efficiency

• IP Rating: IP67 waterproof and dustproof for marine use

• Protections: Reverse polarity protection for safe installation
