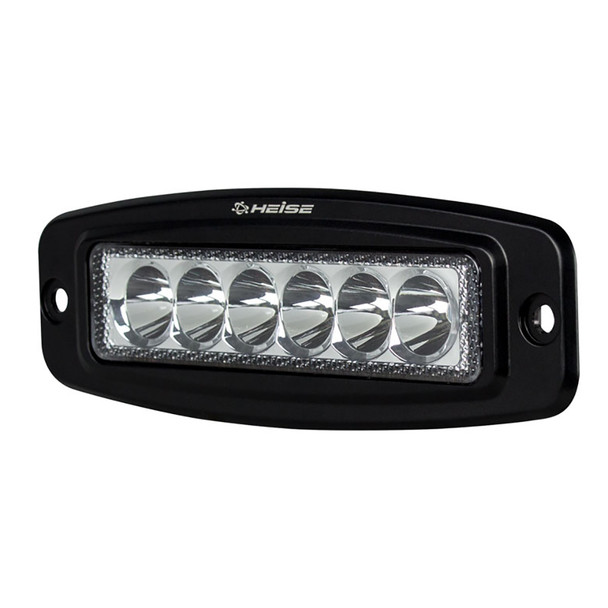

HEISE LED Lighting Systems HE-FMDL1 6 LED Single Row Flush Mount Driving Light

6 LED Single Row Driving Light - Flush Mount

SPECS

• Input Voltage: 10-30V DC


• Wattage: 18W (6-3WOSRAMLEDs)


• Raw Lumens: 1440


• Color Temperature: 6000K


• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing


• Housing Color: Black


• Lens Material: PC


• Mounting Bracket: Stainless Steel


• Electronics: Integrated-Epoxy Encapsulated


• Hardware: Stainless 316 and includes a gasket and a cut-out template

OPERATION

• Operating Temperature: -40degC to +60degC


• Current Consumption: .9 amps at 13.8 volts


• IP Rating: IP67


• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-FMDL1 is a high-performance 6 LED single row driving light designed for optimal visibility and durability. With a sleek flush mount design, this light features a die-cast aluminum housing with a black finish, ensuring robust construction and resistance to harsh environments. The lens is made of durable PC material, and the stainless steel mounting bracket provides secure installation. This driving light operates on a voltage range of 10-30V DC, making it suitable for various vehicle applications. It consumes only 18 watts, delivering a raw luminous flux of 1440 lumens with a 6000K color temperature, ideal for clear, bright illumination. The 25-degree spot beam pattern offers focused lighting for enhanced visibility during night driving or off-road adventures. The integrated electronics are epoxy encapsulated, providing protection against dust and water, with an IP67 rating for superior ingress protection. It also features reverse polarity protection to prevent damage from incorrect wiring, and can operate in temperatures ranging from -40°F to +140°F. The package includes stainless steel hardware, a gasket, and a cut-out template for easy installation. This product is engineered for durability and reliable performance in demanding conditions, making it an excellent choice for trucks, SUVs, and off-road vehicles seeking powerful, focused illumination.

Features:

• Input Voltage: 10-30V DC for versatile vehicle compatibility

• Wattage: 18W with 6 high-quality OSRAM LEDs for efficient lighting

• Lumens: 1440 raw lumens for bright, focused illumination

• Color Temperature: 6000K for crisp, white light

• Beam Pattern: 25-degree spot for concentrated lighting

• Housing Material: Die-cast aluminum with black finish for durability

• Lens Material: Polycarbonate for impact resistance

• Mounting: Stainless steel brackets with gasket for secure installation

• Electronics: Epoxy encapsulated for protection against dust and moisture

• IP Rating: IP67 for waterproof and dustproof operation

• Operating Temperature: -40°F to +140°F for all-weather use

• Protections: Reverse polarity safeguard to prevent electrical damage
