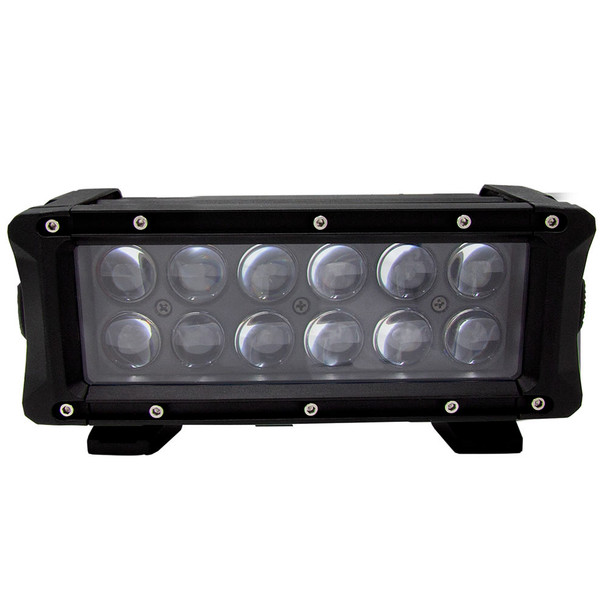

HEISE LED Lighting Systems Infinite Series 8-Inch RGB Backlit Dual-Row LED Light Bar - 12 LEDs

Infinite Series 8" RGB Backlite Dualrow Bar - 12 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise's popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC


• Wattage: 18W


• Raw Lumens: 2280


• LUX @ 10M: 235


• Color Temperature: 6000K


• Beam Pattern: Spot(8)

Construction:

• Housing Material: Diecast Aluminum Housing


• Housing Color: Black


• Lens Material: PC


• Mounting Bracket: Diecast Aluminum


• Hole Dimensions: Brackets turned inward - 7.25"


• Brackets turned outward - 9.5"


• Mounting Bolt Drill - .25"


• Height of Light Bar Itself: 4.8"


• Depth of Light Bar Itself: 3.50"


• Electronics: Integrated-Epoxy Encapsulated


• Hardware: Stainless 316

Operation:

• Operating Temperature: -40C to +60C


• Current Consumption: 1.3 amps @ 13.8 volts


• IP Rating: IP67


• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems Infinite Series 8-inch RGB Backlit Dual-Row LED Light Bar combines high performance illumination with customizable colors, making it ideal for demanding environments. Featuring 12 high-intensity LEDs, this light bar provides powerful illumination with a raw lumen output of 2,280 lumens and a beam pattern of spot (8 degrees). Its advanced RGB backlighting offers 16 million color options, controllable via a dedicated mobile app, allowing users to synchronize multiple lights and achieve dynamic lighting effects. The integrated epoxy-encapsulated electronics ensure durability and reliable operation across a wide temperature range from -40°C to +60°C. The light bar's design includes a diecast aluminum housing with a durable black finish, a virtually unbreakable polycarbonate lens, and stainless steel hardware, making it resistant to harsh conditions and vibrations. The military breather port facilitates moisture escape, maintaining optimal performance in wet environments. Mounting is straightforward with inward or outward turned brackets that accommodate different installation needs, with mounting holes sized at 0.25 inches. Powering this light bar requires a voltage input between 10 and 30 volts DC, with a typical current draw of 1.3 amps at 13.8 volts. The IP67 rating guarantees protection against dust and water ingress, ensuring reliable operation in all weather conditions. The product is compatible with the HE-CBRGB controller (sold separately), enabling seamless RGB control through a single mobile app, streamlining installation and operation for users seeking versatile lighting solutions. Please note that this product contains chemicals recognized by California law to cause reproductive harm; more information is available at P65Warnings.gov.

Features:

• RGB Backlighting with 16 million color options controlled via mobile app

• Powerful 12 LED configuration providing 2,280 lumens

• Spot beam pattern with 8-degree focus for targeted illumination

• Durable diecast aluminum housing with black finish

• Virtually unbreakable polycarbonate lens for tough environments

• Integrated epoxy-encapsulated electronics for reliable operation

• Military breather port for moisture management

• Mounting brackets with inward and outward options for flexible installation

• Water and dust resistant with IP67 rating
