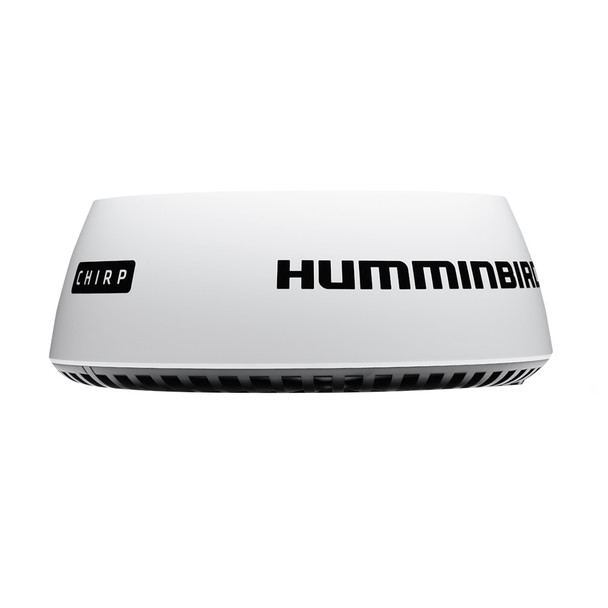

Humminbird HB2124 CHIRP Radar - Compact Marine Radar with Superior Imaging and Networking Compatibility

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome




• Antenna Type - Patch Array




• Peak Power Output - 20W




• Transmit Frequency - 9354 to 9446 MHz




• Beam width (nominal) - 4.9 Horizontal and 20 Vertical




• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)




• Networking - Ethernet




• Maximum Range Scale - from 1/16 to 24 nautical miles




• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W




• Duplexer - Circulator




• Pulse Widths @ 3 dB - 40 ns to 14.7s




• CHIRP Lengths - 400 ns to 20s




• CHIRP Bandwidth - Up to 32 MHz




• IF Bandwidth - 26 MHz




• Noise - Less than 4 dB




• Polarization - Horizontal




• Waterproofing - IPX6




• Weight - 12.3 lbs (5.6 kg)




• Compatibility Networking HELIX models and all ONIX models

The Humminbird HB2124 CHIRP Radar offers advanced radar imaging capabilities designed for marine environments. Compatible with select HELIX and ONIX models, this radar features CHIRP pulse compression technology that provides clear and detailed imaging across both long and short ranges. Its 21-inch enclosed dome antenna employs a patch array design, ensuring reliable performance in various weather conditions. The radar's peak power output of 20W and transmit frequency range of 9354 to 9446 MHz contribute to its impressive range and resolution, making it an essential tool for navigation and situational awareness. Whether tracking weather patterns, vessels, or identifying obstacles, the HB2124 delivers high-definition visuals that enhance safety and decision-making on the water. Its Ethernet networking capability allows seamless integration with compatible fish finders and navigation systems, simplifying setup and operation. The radar's maximum range scale extends from 1/16 to 24 nautical miles, providing flexibility for different cruising environments. With a power consumption of 17W during transmit mode and a waterproofing rating of IPX6, this radar is built to withstand harsh marine conditions. The unit weighs approximately 12.3 pounds, making it manageable for installation on a variety of vessels. For detailed installation instructions and user guidance, refer to the owner’s manual available online.

Features:

• Antenna Dimension: 21-inch enclosed dome

• Antenna Type: Patch array

• Peak Power Output: 20W

• Transmit Frequency: 9354 to 9446 MHz

• Beam Width: 4.9° horizontal and 20° vertical

• Input Voltage: 12 or 24 VDC (range: 10.8V - 31.2V)

• Networking: Ethernet compatibility

• Maximum Range Scale: 1/16 to 24 nautical miles

• Power Consumption: 17W in transmit mode, 7W in standby, 2W in sleep

• Duplexer: Circulator

• Pulse Widths at 3 dB: 40 ns to 14.7 seconds

• CHIRP Lengths: 400 ns to 20 seconds

• CHIRP Bandwidth: Up to 32 MHz

• IF Bandwidth: 26 MHz

• Noise Level: Less than 4 dB

• Polarization: Horizontal

• Waterproof Rating: IPX6

• Weight: 12.3 lbs
