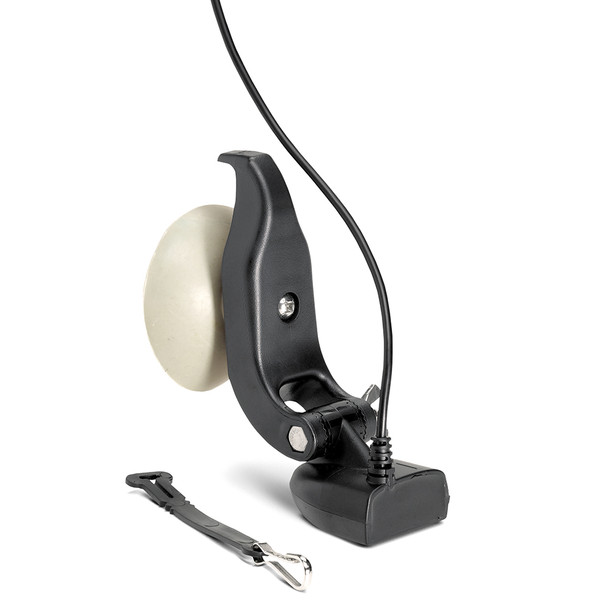

Humminbird XPT-9-HW-T Dual Spectrum CHIRP Portable Transducer with Temperature Sensor

XPT-9-HW-T Dual Spectrum CHIRP Portable Transducer with Temp

Portable Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Suction cup mount adheres to smooth surface hulls for easy installation. Includes all required mounting hardware, built-in temperature sensor and 20 cable. Not recommended for high speeds.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 GPS-equipped models only, HELIX 7 CHIRP G2/G3 GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N All models, HELIX 8 CHIRP G3N All models, HELIX 9 CHIRP G2N/G3N All models, HELIX 10 CHIRP G2N/G3N All models, HELIX 12 CHIRP G2N/G3N All models, ICE HELIX CHIRP G2 All models (In Open Water Mode).


• Side Imaging and Down Imaging units can support the XPT 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Humminbird XPT-9-HW-T is a versatile portable dual spectrum CHIRP transducer designed for anglers and boaters seeking reliable sonar performance. Supporting dual spectrum CHIRP 2D sonar with high frequency beam and wide cone angle, this transducer offers a CHIRP range from 150 to 220 kHz and can reach depths of up to 1200 feet. Its compact design makes it ideal for temporary or permanent installations on smooth hull surfaces, with a suction cup mount included for easy setup. The built-in temperature sensor allows for real-time water temperature monitoring, enhancing your fishing experience and aiding in fish location accuracy. The 20-foot cable provides ample reach for various vessel sizes, ensuring flexible installation options. This accessory is compatible with select Humminbird models including HELIX 5, 7, 8, 9, 10, and 12 CHIRP G2/G3 series, as well as ICE HELIX G2 models operating in open water mode. Please note that the XPT-9-HW-T is designed solely for 2D sonar support and does not support Side Imaging or Down Imaging features. Its dual spectrum frequencies—full (150-220 kHz), narrow (180-240 kHz), and wide (140-200 kHz)—allow users to customize their sonar view for optimal fish detection and bottom tracking. While highly effective, this transducer is not recommended for high-speed applications due to its mounting design. For safety and environmental considerations, be aware that this product contains chemicals including lead, which are recognized by California law for potential health risks. Detailed installation and operation instructions are available in the user manual accessible online.

Features:

• Supports dual spectrum CHIRP 2D sonar with high frequency beam and wide cone angle

• CHIRP range from 150 to 220 kHz with a maximum depth of 1200 feet

• Includes suction cup mount for easy attachment to smooth hull surfaces

• Built-in temperature sensor for water temperature monitoring

• 20-foot cable provides flexible installation options

• Compatible with select Humminbird HELIX and ICE series models

• Supports only 2D sonar; does not support Side Imaging or Down Imaging

• Multiple dual spectrum frequencies for customized sonar views
