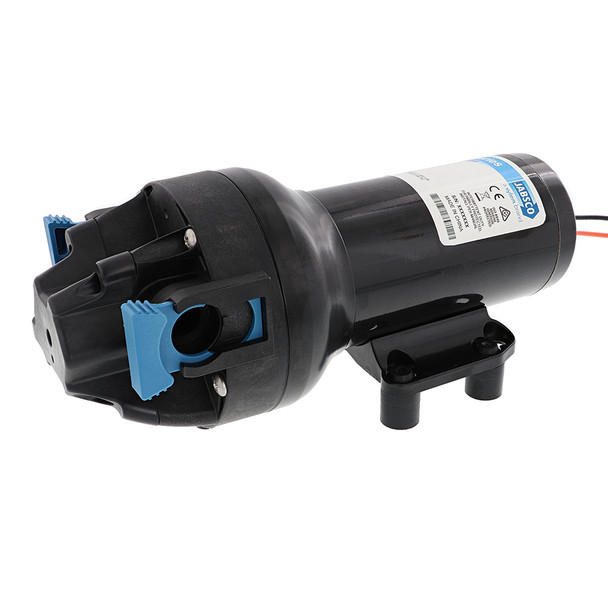

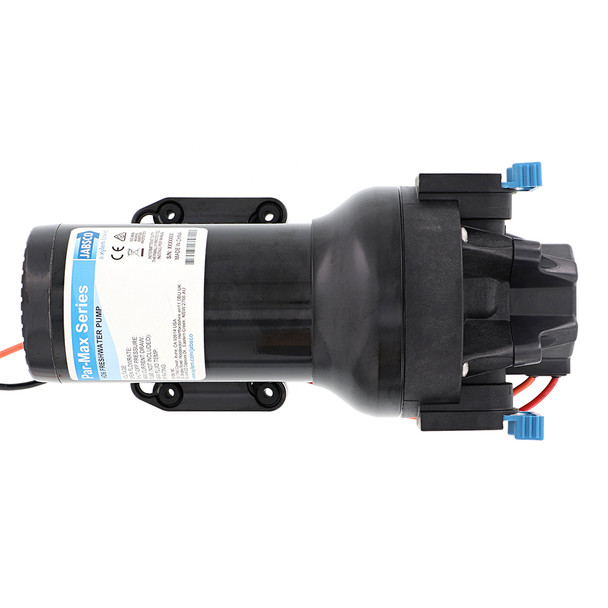

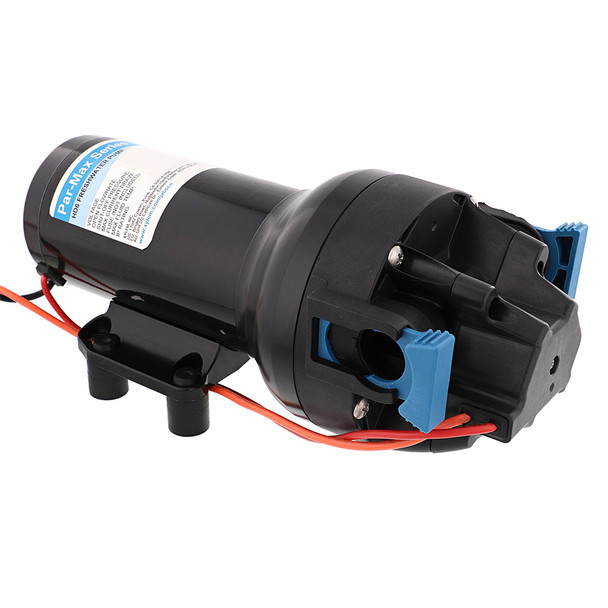

Jabsco Par-Max HD6 Heavy Duty 12V Water Pressure Pump – 6 GPM, 60 PSI

Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump offers reliable performance for demanding applications. Designed with a wider diameter motor and a powder-coated shell, this 12V pump features cast aluminum endbells and a durable lower housing to enhance pressure capacity and extend service life. Capable of delivering up to 6 gallons per minute at 60 PSI, it is well-suited for vessels and other setups requiring high-pressure water flow. The HD models include a heavy-duty motor and cast aluminum components that withstand high pressures and prolonged use, making them ideal for continuous operation. Its efficient and quiet operation ensures minimal noise disturbance, while the integrated sealed pressure switch allows for on-demand water flow activation, conserving energy and reducing wear. The self-priming feature enables versatile installation options, and the pump can run dry without damage, providing added reliability in various conditions. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet help reduce noise and vibration during operation. The integrated bypass module ensures smoother flow and reduces cycling, promoting longer component life. Constructed with a glass fiber reinforced polypropylene pumphead and co-molded TPV diaphragm, the pump is built for durability and corrosion resistance. Check valves made of EPDM further enhance performance, and the pump operates within a fluid temperature range of 32°F to 140°F. Certifications including CE, ISO8846, and RCM attest to its quality and safety standards. With an ingress protection rating of IPX6, the Jabsco Par-Max HD6 is designed to withstand tough environments. Please note, this product may contain chemicals known to cause health risks, including antimony oxide, as detailed in the California Proposition 65 warning. Overall, the Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump combines durability, efficiency, and ease of maintenance to meet the needs of demanding water delivery applications.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing for high-pressure performance

• Efficient and quiet operation for minimal noise disturbance

• Integrated sealed pressure switch for on-demand water flow control

• Self-priming capability allowing versatile installation options

• Can run dry without damage, ensuring reliability

• Quick connect ports facilitate easy installation, servicing, and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Integrated bypass module for smoother flow and reduced cycling
