Description

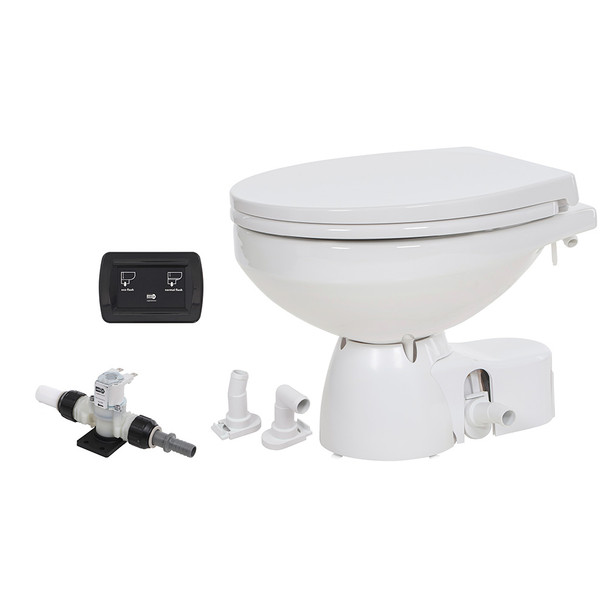

Quiet Flush E2 Fresh Water Toilet Regular Bowl - 12V - Soft Close Lid
From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.
Easy 2 Install
The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.
Easy 2 Service
Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.
Easy 2 Operate
Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.
Installation:
- Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
- Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
- Straight or 90 discharge port for easy install
Quick Release for Easy Servicing:
- Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
- C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time
Multi-Function Touch Panel:
- Stylish low-profile design
- Touch-sensitive operation
- Eco flush, full flush, or empty functions
- Only 1-litre (1-quart) per flush using eco mode
- Designed for wet room installations
- No spill empty feature to leave bowl dry when the boat is in motion
Specifications:
- Bowl Size: Regular
- Seat Lid: Composite
- Slow-Close Lid: Yes
- Water: On-board fresh water
- Device: Solenoid valve
- Flush Control Switch: Touch Panel
- Voltage DC: 12
- Recommended Fuse Size: 25 amp
Dimensions:
- Height: 14.4 in. (365 mm)
- Width: 14.8 in. (375 mm)
- Depth: 18.9 in. (480 mm)
- Weight: 38.6 lbs (17.5 kg)
The Jabsco Quiet Flush E2 marine toilet offers a reliable and user-friendly solution for boat owners seeking comfort and convenience. Designed specifically for marine environments, this award-winning toilet features a sleek touch sensor control panel, allowing effortless operation with options for eco-flush, full flush, or an empty function. Its innovative design ensures quiet operation and efficient water usage, with only 1 quart of water used per eco-flush cycle, making it an excellent choice for water conservation on board.
Installation is straightforward thanks to the adjustable base that can rotate to the left, right, or rear, enabling flexible fitment in tight spaces. The discharge pump can also be rotated 180 degrees to align with existing pipework, simplifying the setup process. The toilet's straight or 90-degree discharge port options provide further versatility, accommodating various boat configurations. Maintenance is simplified with the quick-release system, which allows for fast removal of the discharge pump and hose without tools. The C-clip design ensures a secure and easy service process, reducing downtime and effort.
The Quiet Flush E2 is built to withstand demanding marine conditions, whether on recreational or commercial vessels. Its low-profile, stylish design includes a durable composite seat and a slow-close lid for added comfort and safety. The toilet is intended for wet room installation, with features such as a no-spill empty cycle to keep the bowl dry during motion. Powered by a 12V DC system with a recommended 25-amp fuse, it integrates seamlessly into existing boat electrical systems. Its compact dimensions and manageable weight make it suitable for a variety of boat layouts, ensuring both performance and ease of installation.
Overall, the Jabsco Quiet Flush E2 provides a high-quality, efficient, and easy-to-maintain marine toilet option that enhances onboard comfort. Its combination of advanced features, flexible installation options, and simple servicing make it an ideal choice for boat owners seeking a dependable freshwater toilet solution that meets the rigors of marine life.
Features:
- Flexible installation with rotatable base and discharge options
- Easy tool-free quick-release system for maintenance
- Multi-function touch panel with eco-flush, full flush, and empty functions
- Uses only 1 quart of water per eco-flush cycle for water efficiency
- Quiet operation with soft-close lid and touch sensor control
