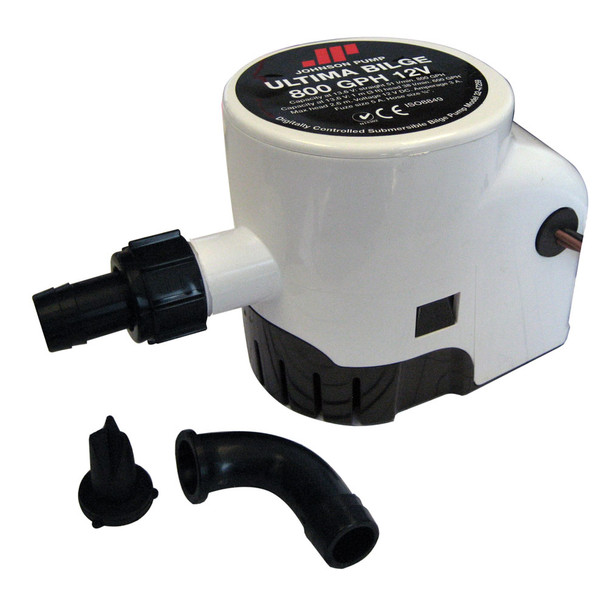

Johnson Pump Ultima Bilge Pump 800 GPH with Dura-Port Discharge - 12V DC

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit




• Integrated Ultima Switch sensing right into the pump body




• No Mercury




• Removable clip on basket design




• Removable impeller cover allows for easy clean out




• 3-wire device can be run in auto or manual override mode




• No tools needed for maintenance




• Extremely energy efficient




• Water-cooled motor for long service intervals




• Meets the international standard, ISO 8849 marine




• Pump Body: ABS




• Shaft Seal: Lip Seal




• Shaft: Stainless steel




• Voltage: 12 V DC




• Capacity 3 ft (0.9 m) head (13.6 V): 38 l/min - 600 GPH




• Capacity straight (13.6 V): 51 l/min - 800 GPH




• Amperage: 3 A




• Fuse Size: 5 A




• Connection: 3/4"




• Length:142 mm - 6"




• Width:82 mm - 3.2"




• Height:105 mm - 4.1"




• Weight:0.66 kg - 23.3 oz.

The Johnson Pump Ultima Bilge Pump model 32-47259-003 offers reliable bilge pumping performance in a compact, all-in-one design. Equipped with the innovative Ultima "field effect" sensing technology integrated directly into the pump body, it provides dependable automatic operation without the need for external sensors. This pump is engineered to deliver 800 gallons per hour at a 3-foot head, making it suitable for various marine bilge applications. Its 12V DC motor features water cooling for extended service life and high energy efficiency, ensuring consistent performance even during long periods of use. The built-in switch sensing mechanism allows for automatic activation when water is present, with manual override capability via the Johnson Pump bilge control panel for added versatility. The pump body, made from durable ABS, incorporates a removable check valve and a removable impeller cover for straightforward maintenance and cleaning. The design includes a sturdy stainless steel shaft with a lip seal to prevent leaks and corrosion, and a compact form factor that simplifies installation in tight spaces. The pump comes with Dura-Port discharge fittings—both straight and 90-degree smooth elbows—designed to prevent stress cracking from over-tightened hose clamps, enhancing durability. The 3/4" connection size ensures compatibility with standard marine fittings, and the unit weighs approximately 0.66 kg (23.3 oz). This CE-approved pump meets international standards (ISO 8849 marine), ensuring quality and safety for marine environments. The Ultima Bilge Pump’s efficient design, combined with features like a removable basket, easy-to-access impeller cover, and robust construction, makes it an excellent choice for long-lasting bilge management. For detailed installation and maintenance instructions, consult the owner’s manual available online. Whether for routine bilge drainage or emergency dewatering, the Johnson Pump Ultima Bilge Pump provides dependable, maintenance-friendly performance in a compact form factor.

Features:

• Compact, all-in-one unit for space-saving installation

• Integrated Ultima switch sensing technology for automatic operation

• No mercury, environmentally friendly design

• Removable clip-on basket for debris management

• Removable impeller cover for easy cleaning

• 3-wire configuration supports automatic and manual operation modes

• No tools required for routine maintenance

• Extremely energy efficient for low power consumption

• Water-cooled motor extends service intervals

• Meets ISO 8849 marine standards for quality assurance

• Durable ABS pump body with stainless steel shaft and lip seal for corrosion resistance

• Includes Dura-Port discharge fittings—straight and 90-degree elbows—to prevent stress cracking

• 3/4" discharge connection compatible with standard marine fittings

• Lightweight design with approximately 0.66 kg (23.3 oz) weight
