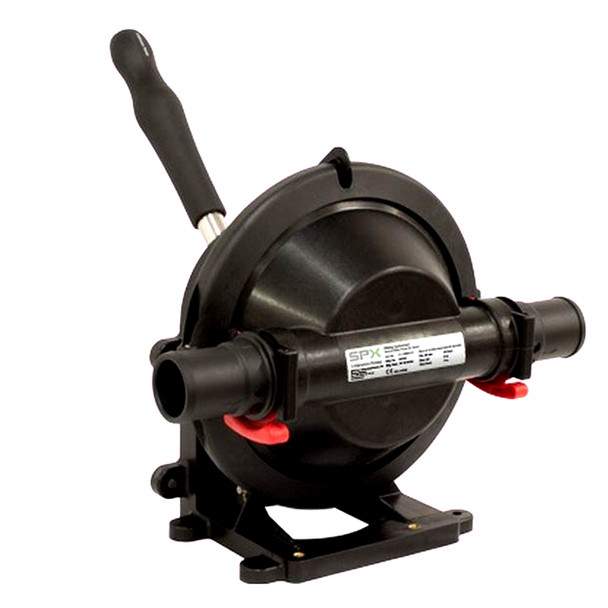

Johnson Pump Viking Universal Manual Bilge Pump - 1-1/2 Inch, Heavy Duty, Self-Priming

Viking Universal Manual Bilge Pump - 38mm

Heavy duty, self-priming, hand-powered bilge pump for nearly any type of installation

Viking Universal's mounting bracket allows for vertical or horizontal surface mounting. With the optional Through Deck kit the pump can be installed behind bulkheads or below the deck. To minimize required space the Viking Universal excels at adaption. The simple switching of the valves together with the connections allows you to choose flow direction. The included KlickTite straight and 90 hose connections can be used in combination. The hose connections and even the pump housing can be easily rotated for optimal positioning.

While designed as a powerful bilge pump, the Viking Universal's large 38mm (1-1/2") valves enable the pump to also be used for pumping toilet waste.

Fasteners are included for stowing the handle and the safety clasp ensures that the handle cannot be lost while not in use or during an emergency situation. Viking Universal meets ISO 15083, "Bilge pumping systems".

Specifications:

Body and cover:Polypropylene plastic reinforced with 30% fiberglass

Diaphragm and valves:Nitrile rubber

Wetted parts:PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber

Maximum suction:3M (10')

Maximum head:4M (13')

Combined suction/head:7M (23')

Connection:KlickTite connectors 38mm (1-1/2") hose. Both straight and 90 bends are included

Max. liquid temp:+60C (140F)

Weight:1,5 kg (3.3 lbs)

The Johnson Pump Viking Universal Manual Bilge Pump is a versatile and reliable solution for bilge pumping and waste removal on boats. Designed with a robust polypropylene body reinforced with 30% fiberglass, this pump is built to withstand harsh marine environments. Its 38mm (1-1/2 inch) valves allow for efficient water transfer, while the Nitrile rubber diaphragm and valves ensure durability and effective operation. The pump is capable of handling a maximum suction of 10 feet and a maximum head of 13 feet, making it suitable for various bilge and waste removal applications. The combined suction and head reach up to 23 feet, providing ample reach for most marine pumping needs.
The Viking Universal features a user-friendly mounting bracket that supports both vertical and horizontal installation. With the optional through-deck kit, it can be installed behind bulkheads or below deck level, offering flexible placement options. The pump's connections are compatible with KlickTite connectors, which include both straight and 90-degree hose fittings, and the connections and housing can be rotated for optimal positioning. The pump's design allows for quick valve switching to change flow direction, simplifying maintenance and operation. It comes with fasteners for handle storage and a safety clasp to prevent handle loss during emergencies or when not in use. Certified to meet ISO 15083 standards, the Viking Universal is a dependable choice for marine bilge and waste pumping needs.
This pump is also suitable for pumping toilet waste thanks to its large 38mm valves. It can operate with liquids at temperatures up to 140°F, making it adaptable for various marine sanitation systems. Weighing approximately 3.3 pounds, the Viking Universal is lightweight yet durable, ensuring ease of installation and handling. For detailed installation and operation instructions, refer to the manufacturer's manual available online.

Features:

• Heavy-duty polypropylene body reinforced with fiberglass for durability

• Large 38mm (1-1/2 inch) valves suitable for bilge water and waste

• Self-priming design for reliable startup

• Flexible mounting options with vertical or horizontal installation

• Optional through-deck kit for below-deck or bulkhead installation

• Quick valve switching for changing flow direction

• Includes KlickTite hose connections with straight and 90-degree fittings

• Rotatable connections and housing for optimal positioning

• Handle storage fasteners and safety clasp included

• Certified to meet ISO 15083 standards for bilge systems

• Operates with liquids up to 140°F, suitable for sanitation applications

• Lightweight design at approximately 3.3 lbs for easy handling
