Description

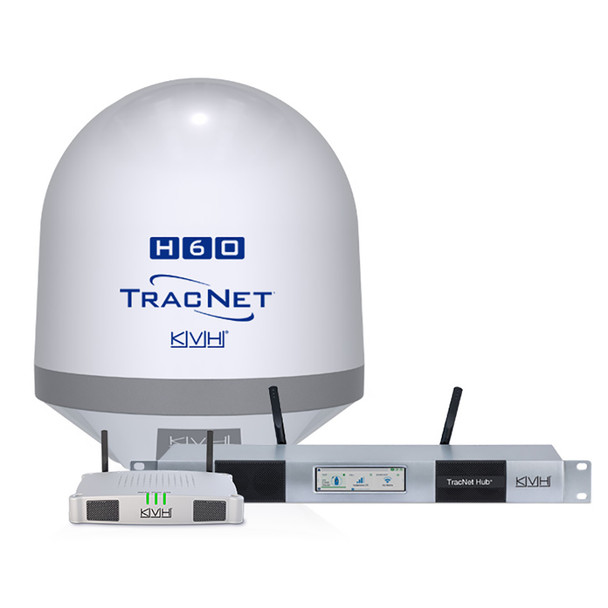

TracNet H60 Ku-Band Antenna with TracNet Hub
The TracNet H60 provides the fastest, most reliable connectivity with the KVH ONE hybrid network. The groundbreaking TracNet H60 is 42% lighter than leading competitors and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.
*Subscription required
KVH ONE Hybrid Network
- Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
- Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
- Compatible with shore-based Wi-Fi networks
Features:
- Automatically switches to the best connectivity option based on cost, data quality, and more
- Hybrid connectivity options (VSAT, Cellular, and WiFi)
- Stabilization - Three axis, stabilized skew
- Single cable install with DC and AC power BDUs (below deck units)
- Cybersecurity - Integrated terminal and network security; optional enterprise-level upgrade
- Up to 42% lighter than competitive systems
- For boats 60+ feet (18+ meters)
- Tuned antenna paired with KVHs exclusive RingFire technology ensures superior reception
Technical Specifications:
- Dome Diameter - 24" (60cm)
- Dome Weight - 53.6 lbs (24.3 kg)
- Maximum Speed Download/Upload - 10 Mbps/3 Mbps
- Elevation/Azimuth Range - 24 to 116/commercial-grade rotary joint for unlimited azimuth rotation
- Operating Temperature - -22F to 131F (-30C to 55C)
- Power Source - DC provided by the TracNet Hub or Hub+
- Single coax cable connection
The KVH TracNet H60 Ku-Band Antenna with TracNet Hub offers fast and reliable satellite communication for vessels over 60 feet. Designed to integrate seamlessly with the KVH ONE hybrid network, this system provides continuous connectivity through satellite, cellular, and Wi-Fi networks, automatically switching between them to ensure optimal performance in all sea states. Its lightweight design, being 42% lighter than comparable systems, makes it an ideal choice for large boats seeking enhanced communication capabilities without added weight. The system is compatible with shore-based Wi-Fi networks and supports cellular connectivity in over 150 countries, reaching as far as 20 miles offshore, making it suitable for extensive marine operations.
Features:
- Automatically switches to the best connectivity option based on cost, data quality, and other factors
- Hybrid connectivity options including VSAT, Cellular, and Wi-Fi
- Three-axis stabilization with stabilized skew for consistent signal reception
- Single cable installation with DC and AC power options for below deck units
- Integrated cybersecurity features with optional enterprise-level security upgrades
- Up to 42% lighter than comparable systems, reducing vessel weight impact
- Designed for vessels 60+ feet (18+ meters) in length
- Paired with KVH's RingFire technology for superior reception quality
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/95792OM.pdf |
