Description

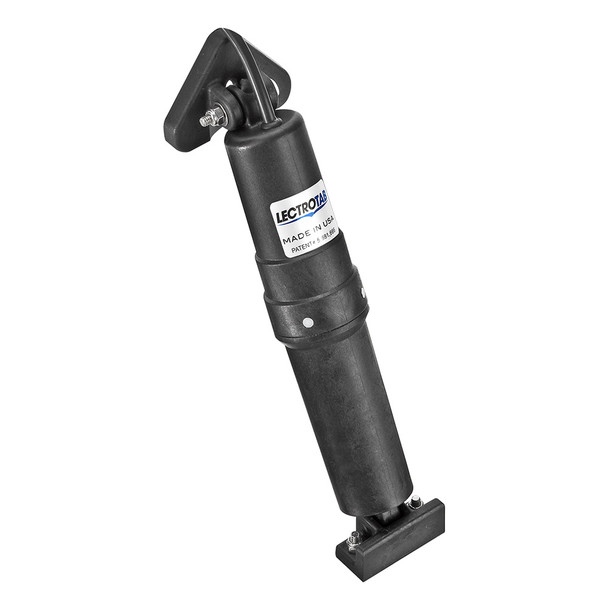

12 V Trim Tab Actuator - 23' Cable
Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing.
No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a transom mounting bracket.
Features:
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Upgrades to most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- All actuators fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Upper Mounting Bracket - Standard
- Lower Mounting Bracket - Standard
*Sold as an Individual
The Lectrotab 12 V Trim Tab Actuator with a 23-foot cable is engineered for reliable and quiet performance in marine applications. This precision device features a non-hydraulic, maintenance-free design that eliminates the need for oil-based components, reducing potential leaks and simplifying installation. Its corrosion-free, non-metallic external structure ensures durability against harsh environmental conditions, including prolonged sun exposure and submersion. The actuator is fully self-contained, with a transom mounting bracket included, allowing for straightforward setup without internal components inside the boat.
Designed to provide maximum lift force and highly accurate tab positioning, this actuator has been load-tested to push up to 1,000 pounds of force. Its internal pressure equalization system prevents damage to the upper ram seal from fouling or barnacle growth, ensuring long-term reliability. The internal brake system prevents unwanted movement during operation or backing down, giving boaters confidence in maintaining precise trim adjustments. Compatible with most hydraulic and electromechanical systems, it offers a seamless upgrade option for existing trim tab setups.
The actuator's stroke length measures approximately 2.25 inches, with a vertical height of nearly 12 inches. It is powered by a 12-volt DC supply, making it suitable for a wide range of marine vessels. The 23-foot cable length offers flexible installation options, and the standard upper and lower mounting brackets facilitate secure attachment. This product is sold individually and comes with a comprehensive owner’s manual for installation and maintenance guidance. Whether upgrading an existing system or installing a new trim tab mechanism, the Lectrotab 12 V Trim Tab Actuator ensures smooth, reliable, and maintenance-free operation for optimal vessel performance.
Features:
- Corrosion-free, non-metallic external structure resistant to sun and water deterioration
- Internal pressure equalization system prevents damage from fouling or barnacle growth
- Utilizes internal pressure balance for reliable operation
- Upgrades most hydraulic and electromechanical trim tab systems
- Internal brake system prevents unwanted tab movement during operation
- Quiet operation for smooth performance
- All actuators load tested to push up to 1,000 pounds of force
- Includes transom mounting bracket for easy installation
