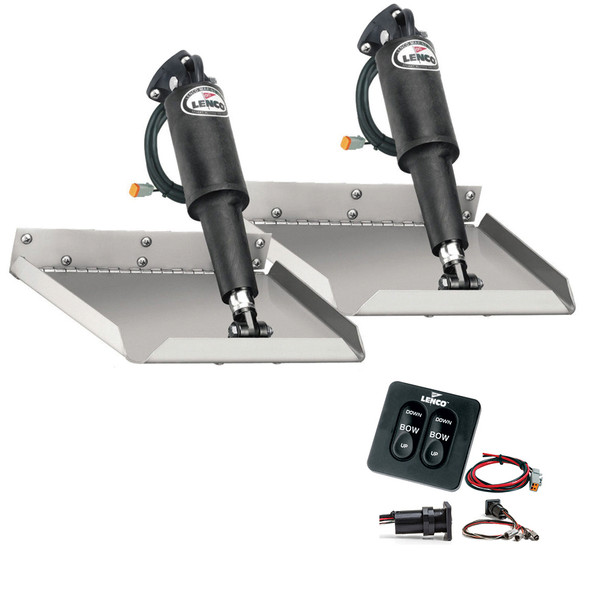

Lenco Marine 12" x 9" Edge Mount Trim Tab Kit with Standard Tactile Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance and safety with the Lenco Marine 12" x 9" Edge Mount Trim Tab Kit, part number TT12X9E. Designed for efficient installation, this kit mounts the actuator at the trailing edge of your vessel, reducing transom height requirements by four inches compared to traditional mounts. The edge mount configuration offers a sleek, low-profile setup that integrates seamlessly with your boat's design, providing a clean and space-saving installation. Made with durable, corrosion-resistant materials including 316 stainless steel rams and high-impact stainless steel trim planes, this kit is built to withstand harsh marine environments and years of use.

The kit features instant response electric actuators with self-locking ballscrews that prevent drift, even when backing down. These actuators are fully sealed, maintenance-free, and equipped with ultraviolet-resistant nylon cases, ensuring reliable operation and longevity. The included control system comprises a waterproof, sealed control box with solid-state electronics and a plug-and-play Deutsch connector, simplifying installation and providing precise, instantaneous control over the trim tabs. The built-in retractor feature enhances safety and convenience by automatically retracting the trim tabs when necessary.

This comprehensive kit includes two actuators with 6-foot leads and Deutsch plugs, stainless steel extension wiring harnesses, and all stainless steel mounting hardware, making it a complete solution for your boat. The 36-inch power pigtail and compact control box with a 2.75-inch overall size facilitate quick and straightforward installation. Whether you're upgrading a small skiff or a luxury yacht, this trim tab kit offers improved ride quality, increased speed, and enhanced safety. The durable construction and advanced features ensure long-lasting performance, making it an essential addition for serious boaters seeking optimal handling and stability.
Note: This product contains chemicals known to cause reproductive harm under California law. Please consult the provided safety information at P65Warnings.ca.gov. This product is not returnable to the original point of purchase; contact the manufacturer directly for support or concerns.

Features:

• Edge mount design reduces transom height requirements by four inches

• Instant response electric actuators with self-locking ballscrews prevent drift

• Fully sealed, maintenance-free actuators with UV-resistant nylon cases

• Corrosion-proof 316 stainless steel rams and high-impact trim planes

• Waterproof, sealed control box with solid-state electronics for reliable operation

• Built-in retractor feature for added safety and convenience

• Plug & Play installation with Deutsch connectors

• Includes all mounting hardware, wiring harnesses, and actuators for a complete setup

• Compact control box with easy wiring and quick installation
