Description

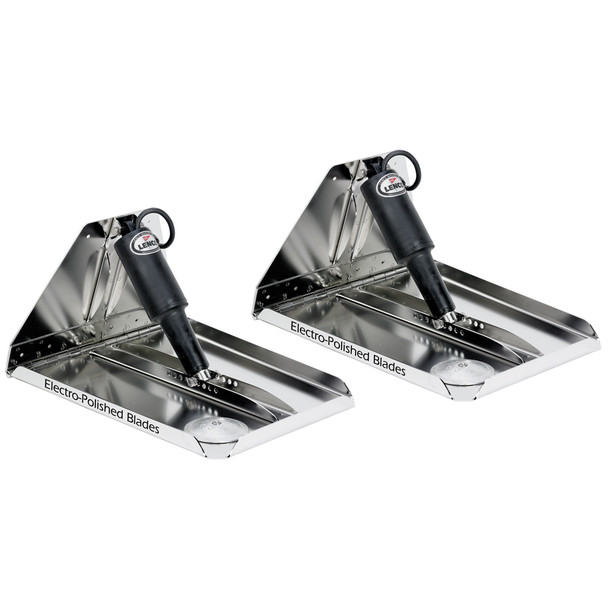

18" x 14" Heavy Duty Performance Trim Tab Kit w/o Switch Kit -12V
Lenco Electric Heavy Duty Polished Blade Trim Tab Kits are supplied with electric actuators for precise control. Fully submersible with all Plug Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges, 85 degree inside taper and 1/4" diameter hinge pin. Kits equipped with Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes. .
Kit Contents:
- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of #15055-001 XD extreme duty actuators with 6' leadand Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 1 each of the Lenco owners / installation manual
- Boat-mounting hardware supplied by customer
Specifications:
- Suggested Boat Length: 22' to 42'
- Length of Tab: 18"
- Width of Tab: 14"
- Minimum Transom Height: 10.5"
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Switch Required: 15069-001 or 15070-001
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine Part Number 15044-101 is an advanced, heavy-duty performance trim tab kit designed for boats ranging from 22 to 42 feet in length. This kit features polished stainless steel blades measuring 18 inches in length and 14 inches in width, constructed from 12-gauge electro-polished 304 stainless steel for durability and corrosion resistance. The blades are designed with 1-inch turned-up edges, an 85-degree inside taper, and a 1/4-inch diameter hinge pin, ensuring precise control and reliable operation in demanding marine environments. Equipped with factory-assembled components, the kit includes a full transom backplate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and sacrificial anodes for added protection against corrosion. The electric actuators are rated for 12 volts and feature extreme duty construction with 5/16-inch stainless steel bolts, providing robust performance and longevity. Fully submersible with Deutsch plug connections, the components ensure easy installation and maintenance without compromising seawater resistance. The kit is compatible with any boat and is CE certified, emphasizing safety and quality assurance. Note that this trim tab kit requires a separate switch, such as model 15069-001 or 15070-001, to operate the actuators effectively. The package includes two stainless steel blades, two Extreme Duty actuators with 6-foot leads, two 20-foot actuator extension wiring harnesses, and comprehensive installation instructions. As a fuel-efficient solution, this trim tab system enhances boat stability and maneuverability, providing a smoother ride under various conditions. Designed for professional installation, boat owners should supply the mounting hardware, and it is recommended to follow the detailed instructions for optimal performance. This product is CE certified and built to meet rigorous marine standards, making it suitable for a wide range of recreational and commercial vessels seeking reliable trim control. Please note that the product may contain chemicals like DEHP, which are subject to California's Proposition 65 warnings. For further details or concerns, contact the manufacturer directly.
Features:
- Heavy-duty electro-polished stainless steel blades for durability
- 12-volt extreme duty electric actuators for precise control
- Fully submersible design with Deutsch plug connections
- Factory-assembled with full transom backplate and mounting brackets
- Includes sacrificial anodes for corrosion resistance
- Suitable for boats from 22 to 42 feet in length
- CE certified and compliant with marine standards
- Requires separate switch (sold separately) for operation
