Description

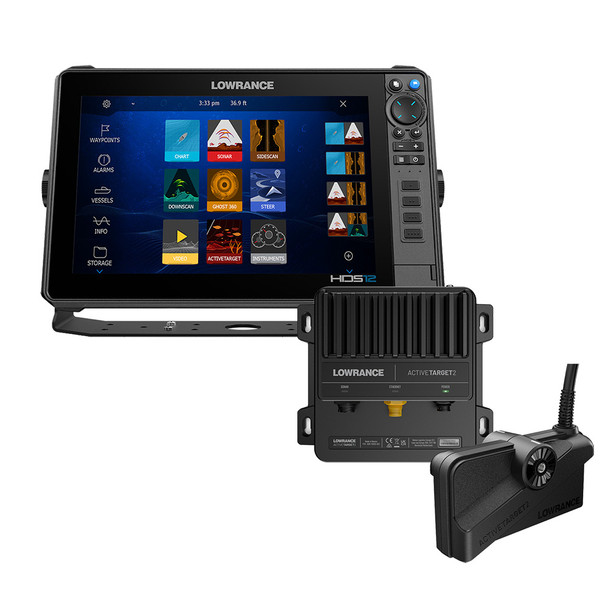

HDS PRO 12 with Preloaded C-MAP DISCOVER OnBoard - No Transducer ActiveTarget 2 Bundle
See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.
In the Box:
- HDS PRO fishfinder/chartplotter (12-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
Features:
- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses
- High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal with SideScan view, as well as DownScan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and Bluetooth connectivity plus smartphone notifications
Display:
- Backlight Color: Pure white LED
- Display Resolution: 1280 x 800
- Viewing Angles: 80 top/bottom, 80 left/right
Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network
- Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
Electrical:
- Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
- Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
- Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
- Recommended Fuse Rating: 5A
- Supply Voltage: 12 v DC (10.8-17VDC)
Environment:
- Operating Temperature Range: 5F to 131F (-15C to 55C )
- Storage Temperature Range: 4F to 140F (-20C to 60C )
GPS:
- GPS Receiver Channels: 16
- Update rate: 10 Hz
MFD (Multi-Function Display):
- Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
- Internal Storage: 8.0 GB Internal
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
*Sidescan Fish Reveal requires S3100 module and a compatible transducer
ActiveTarget 2 Live Sonar with Transducer
ActiveTarget 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish. Catching fish is easier when you can see them interacting with structure and responding to your lure in real-time with Lowrance high-resolution ActiveTarget 2 Live Sonar. Quickly recognize if your lure presentation is working or if you need to adjust to get fish to strike information that is harder to get from traditional sonar or structure imaging.
Features:
- High-resolution, live-action images clearly reveal whats happening underwater in real time
- Clearest live-action views of fish and structure
- Widest underwater images for quicker interpretation
- See all around your boat with Forward, Down, and Scout views
- See multiple views simultaneously and enable Forward+Back and Scout Wide views with second ActiveTarget 2 (HDS PRO Only)
- Compatible with HDS LIVE, HDS Carbon, and Elite FS
The Lowrance HDS PRO 12 fishfinder/chartplotter combines a 12-inch SolarMAX HD touchscreen with advanced sonar, charting, networking, and boat-control capabilities. This bundle includes preloaded C-MAP DISCOVER OnBoard charts and ActiveTarget 2 support, but does not include a transducer.
Use high-resolution ActiveTarget 2 Live Sonar to view fish and structure in real time and see how fish respond to your lure. The unit also supports high-definition Active Imaging HD, including Lowrance CHIRP, SideScan, and DownScan Imaging. FishReveal is available with SideScan, while DownScan FishReveal requires an S3100 module and compatible transducer.
Preloaded C-MAP DISCOVER OnBoard charts provide 1-foot contours on more than 19,000 U.S. lakes and 9,400 Canadian lakes. C-MAP Genesis Live enables real-time mapping, while support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views helps provide additional on-water information.
Networking and control features include NMEA 2000, wireless and Bluetooth connectivity, smartphone notifications, dual Ethernet ports, and touchscreen control for Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot. The display has a 1280 x 800 resolution, an 80-degree viewing angle in each direction, integrated GPS with 16 receiver channels and a 10 Hz update rate, 8 GB of internal storage, and support for two microSD cards up to 32 GB each.
Features:
- Display: 12-inch SolarMAX HD touchscreen with a 1280 x 800 resolution and viewing angles of 80 degrees top/bottom and left/right
- Charting: Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on more than 19,000 U.S. lakes and 9,400 Canadian lakes
- Live Sonar: High-resolution ActiveTarget 2 support with Forward, Down, and Scout views
- Imaging: High-definition Active Imaging HD support for Lowrance CHIRP, SideScan, and DownScan Imaging
- FishReveal: SideScan FishReveal support; DownScan FishReveal requires an S3100 module and compatible transducer
- Mapping: C-MAP Genesis Live support for real-time mapping
- Networking: NMEA 2000, integrated Bluetooth 4.0, wireless connectivity, smartphone notifications, and two Ethernet ports
- Boat Control: Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- GPS: Integrated 16-channel GPS receiver with a 10 Hz update rate
- Storage: 8 GB of internal storage and support for two microSD cards up to 32 GB each
- Waypoints and Routes: Supports 3,000 waypoints, 100 routes, and 100 trails with up to 10,000 points per trail
- Power: 12V DC supply voltage with a recommended 5A fuse
- Bundle Contents: HDS PRO fishfinder/chartplotter, preloaded C-MAP DISCOVER OnBoard charts, and ActiveTarget 2 bundle; transducer not included
