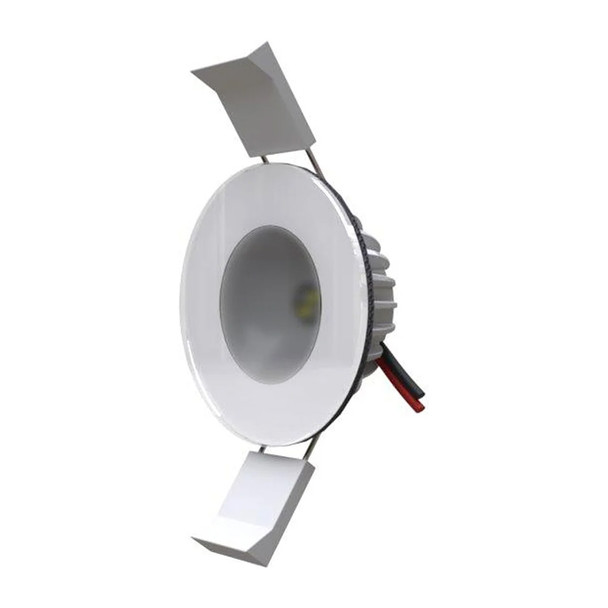

Lumishore ECLIPSE DL55 White & RGB Downlight – White Finish, IP67 Waterproof Marine Lighting

ECLIPSE DL55 White RGB Downlight - White Finish

Lumishores ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.

They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83).

Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boats aesthetic.

Features:

• White + RGB


• 3 Year Warranty


• ECLIPSE Collection

Specifications:

• LED Type: 2 x 3W White RGB LEDs


• Customer Control Options: On/Off Switch or ECLIPSE Command Center


• Electrical Installation: Simple 2-Wire Installation


• Supply Voltage Range: 12V DC Only (10 - 15V DC)


• Max Current Draw (12/24V DC): 0.4A


• Ingress Protection: IP67


• Front Diamater (Bezel): 64.0mm (2.519)


• Profile: 3.5mm (0.137)


• Hole Diameter for fitting: 50.8mm (2.0)


• Mechanical Installation: Stainless Steel Spring Clips

The Lumishore ECLIPSE DL55 White & RGB Downlight is designed to deliver versatile and vibrant lighting for both indoor and outdoor marine environments. With a sleek white finish, this LED downlight seamlessly integrates into your boat’s aesthetic while providing exceptional illumination. Its fully water-sealed construction with an IP67 rating ensures reliable operation in harsh marine conditions, making it ideal for overhead lighting on board vessels. The installation process is simple and efficient, requiring just a straightforward 2-wire connection and a shallow profile of only 0.137 inches, which allows for flexible placement even in tight spaces. The fixture comes with stainless steel spring clips for secure mounting and features a 64mm bezel diameter, blending functionality with a clean, unobtrusive appearance. Designed for versatile control, it supports operation via a standard on/off switch or through the Lumishore ECLIPSE Command Center, offering customizable lighting options. Powered by 2 x 3W White and RGB LEDs, this downlight provides vibrant color options, including dual blue and white or single-color blue or white modes, to create the perfect ambiance or highlight specific areas. Its electrical requirements are minimal, operating on 12V DC within a voltage range of 10 to 15V DC and drawing a maximum of 0.4A at 12V, ensuring energy-efficient performance. Backed by a 3-year warranty, the Lumishore ECLIPSE DL55 is a durable, high-quality solution for marine lighting needs. Whether for functional illumination or aesthetic enhancement, this downlight combines reliable waterproof performance with versatile color options, making it an excellent choice for boat owners seeking quality and ease of installation in a compact package.

Features:

• White + RGB LED illumination for vibrant color options

• Waterproof design with IP67 rating suitable for marine environments

• Simple 2-wire electrical installation for quick setup

• Operates on 12V DC with a voltage range of 10-15V DC

• Compact profile with a shallow depth of 0.137 inches

• Secure stainless steel spring clips for easy mounting

• Versatile control options via standard switch or ECLIPSE Command Center

• Durable construction with a 3-year warranty
