Description

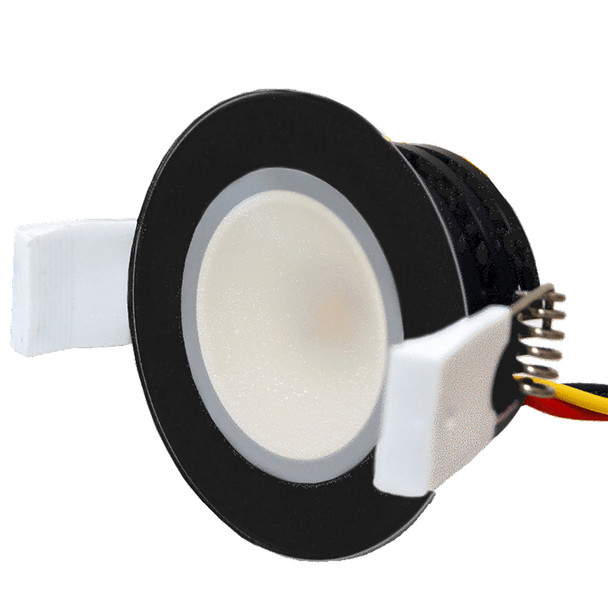

LUX DL50 Downlight - 5 Watt - Black Bezel
LUX Downlights are the perfect solution for interior or exterior overhead lighting needs. The DL50 delivers incredible output and a profile that is among the slimmest.
Full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tunable (from 2700k to 6500k) in a single downlight unit.
Completely sealed and IP68 rated, it is perfectly suited for a variety of indoor or outdoor overhead lighting needs.
Choose between a white or black bezel and a hard anodised aluminium body to complement the style of your boat.
LUX Downlights are easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable as standard and powered by the LUX Light Control Module.
Specifications:
- Available Colors: Full Spectrum CRGBW and white color temperature tunable from 2700K to 6500K
- Ingress Protection: IP68
- Supply Voltage Range: 10.5 - 31v DC
- Max Current Draw: 0.5A/0.25A
- Front Diameter (Bezel): 64mm
- Hold Diameter for Fitting: 50mm
- Mechanical Installation: Spring clip
- Number of Downlights Per Control Module: 16
- Control Options: Momentary switch with option to upgrade to full MFD and optional Lumishore Display
The Lumishore LUX DL50 Downlight is designed to meet a wide range of interior and exterior lighting requirements with exceptional efficiency and versatility. Featuring a slim profile, this 5-watt LED offers high output while maintaining a discreet presence, making it ideal for both residential and marine applications. Its durable, fully sealed construction with an IP68 rating ensures reliable performance in challenging outdoor environments, including boats, patios, and architectural settings. The black bezel option adds a sleek, modern touch to any space, complemented by a hard anodized aluminum body that resists corrosion and enhances durability.
This advanced downlight provides a full spectrum of CRGBW colors, along with tunable white light from 2700K to 6500K, allowing seamless customization of ambiance and color effects. The versatile control system supports simple operation via a momentary switch, with the potential for integration into larger smart lighting systems through compatible Multi-Function Displays (MFDs) or Lumishore Displays. Dimmable as a standard feature, the DL50 is powered by the LUX Light Control Module, enabling precise brightness adjustments to suit different settings and moods.
Installation is straightforward with a spring clip mechanism, accommodating a 50mm hold diameter for secure fitting. The front bezel measures 64mm in diameter, ensuring a clean aesthetic and easy integration into various fixtures. The system supports up to 16 downlights per control module, making it suitable for both small and large lighting schemes. With an operating voltage range of 10.5 to 31 volts DC and a maximum current draw of 0.5A, the DL50 offers reliable, energy-efficient performance suitable for diverse applications. Whether upgrading existing lighting or designing a new installation, the Lumishore LUX DL50 downlight delivers flexibility, durability, and vibrant illumination in a compact form factor.
Features:
- Full Spectrum CRGBW and tunable white light from 2700K to 6500K for customizable illumination
- IP68 rated sealed construction suitable for indoor and outdoor use
- Hard anodized aluminum body with black bezel option for corrosion resistance and style
- Slim profile with a 64mm front diameter and 50mm fitting hold diameter for versatile installation
- Dimmable via standard controls, compatible with control modules for precise brightness adjustment
- Supports up to 16 downlights per control module for scalable lighting setups
- Low power consumption with a maximum current draw of 0.5A, operating within 10.5-31V DC
- Easy installation with spring clips, designed for quick setup in various environments
- Compatible with MFD and Lumishore Display for advanced integration and control
