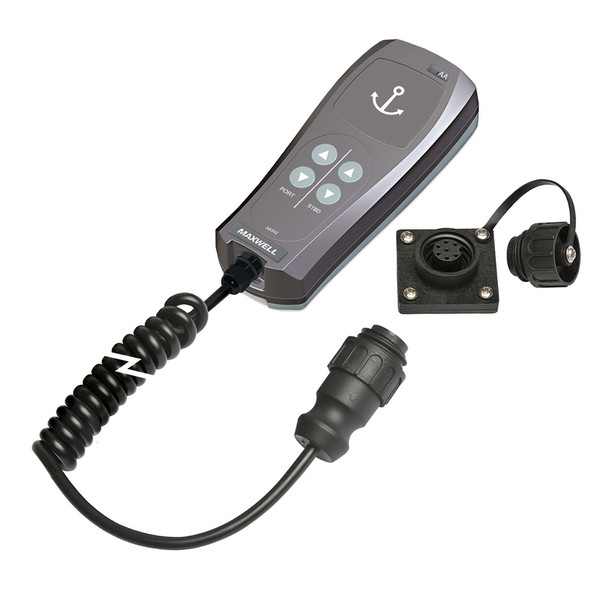

Maxwell AA342 Remote Control for Dual Windlasses with 4 Outputs

AA342 Remote for Dual Windlasses - 4 Outputs

This is a handheld wired roving dual windlass controller. The remote has 4 outputs unit that can be installed to meet your specific requirements.

Features:

• 2 buttons up and 2 buttons down Designed for dual windlass control

Specifications:

• Maximum Operating Voltage: 25V AC (RMS) / 30VDC
• Contact Current Rating: SA Resistive Load / 3A Inductive Load
• Operating Temperature Range: -15 C to 70 C (23 to 140 F)
• IP Rating1: IP67
• Dimensions Handset (HxWxD): 5.92" X 2.53" X 1.87'' (150.36 mm x 64.37 mm x 47.42 mm)
• Standard Cable Extension: 11.5 ft / 3.5 m
• Flying Lead from Deck Socket: 6.5 ft. / 2 m

The Maxwell AA342 remote control is a reliable handheld wired device designed for dual windlass operation on boats and marine vessels. Featuring four outputs, this controller offers flexible installation options to meet your specific anchoring and mooring needs. Its ergonomic design includes two buttons dedicated to raising the windlass and two buttons for lowering, ensuring intuitive and precise control during operation. Built for durability, the AA342 remote withstands harsh marine environments with an IP67 rating, providing protection against dust and water ingress. The device is suitable for maximum operating voltages of up to 25V AC (RMS) or 30V DC, with a contact current rating of 3A for resistive loads and inductive loads, ensuring reliable performance under demanding conditions. The standard 11.5 ft cable extension and 6.5 ft flying lead from the deck socket facilitate flexible installation options, allowing you to position the remote conveniently in your vessel's cockpit or helm station. Operating within a temperature range of -15°C to 70°C, the AA342 remote maintains consistent functionality across diverse marine environments. Its compact dimensions make it easy to handle and install, while the robust construction ensures longevity and dependable operation. For detailed instructions, refer to the owner’s manual available online. Please note, this product may not be returned to the original point of purchase; contact Maxwell directly for support or warranty issues.

Features:

• Four outputs for versatile dual windlass control

• Two buttons for raising and two for lowering windlasses

• IP67 rated for dust and water resistance

• Maximum operating voltage of 25V AC (RMS) / 30V DC

• Contact current rating of 3A for resistive and inductive loads

• Standard cable extension of 11.5 ft and 6.5 ft flying lead for flexible installation

• Operates reliably across temperatures from -15°C to 70°C

• Compact dimensions for easy handling and installation
