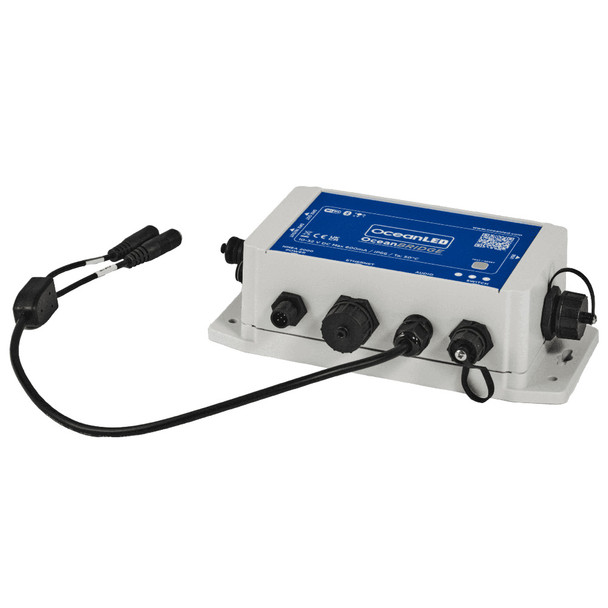

OceanLED OceanBridge Control Unit – Multi-Zone Lighting Controller with Wi-Fi and Bluetooth

OceanBridge Control Unit

The OceanBridge is a patented multizone lighting controller designed specifically for controlling all of the boats lights from an MFD, smartphone, or tablet. This innovative system allows users complete control of the entire OceanLED range of lights and accessories, as well as most third-party (DMX or on/off) DC-powered lights. The OceanBridge gives users complete control over color change, music sync, color fade, color transitions, brightness, zone creation, and OceanLED's patented movement-to-color functionality.

Ideal for All Types of Boats

At OceanLED, they understand the need to control all the boat lights from a single interface. Whether users have a small rib, large sport fishing boat, sailing yacht, or motor cruiser, the OceanBridge ensures easy and seamless control. The small unit is quick to install and doesnt require much space. Control is easy via an MFD, or if the boat isnt equipped with an MFD, simply control the lights via a smartphone or tablet, thanks to the integrated Wi-Fi module.

Custom Scene Zone Control

With the OceanBridge, you can create an incredible 10 lighting zones as standard and up to 10 lighting scenes. No matter how large the vessel is, the agility of fully customizable control means the possibilities are almost endless. OceanBridge scenes allow users to save pre-set lighting colors and modes, which can be easily assigned to any zone. Users can set OceanLED's unique sweep scene mode to any zone using lights of the same type, creating the Knight Rider effect. The additional flexibility of adding up to four instant-on switches means control can be tailored to specific areas of the boat.

Control Lights Accessories Easily

The advanced OceanBridge system allows you to create and control a lighting system with up to 64 (DMX or on/off) lights at one time; even non-OceanLED lights can be added to the system. With the use of splitters, the system can be expanded to over 150 lights. Plug-and-play control compatibility is ensured thanks to the system NMEA 2000 compatibility and supporting MFD network connectivity. You now have complete flexibility in one system.

Intelligent Lighting Commands

The OceanBridge makes syncing the underwater and onboard lights to music effortless. With the built-in AUX socket or via Bluetooth audio connection, users can set light colors and modes to automatically match music using the base, midtones, and treble. Alternatively, the unique addition of the built-in gyroscope allows the system to go even further. OceanLED's patent-pending design allows users to set the lights to change with the movement of a boat. OceanLED's timer function goes a step further, allowing users to trigger specific scenes at set times of the day or night.

Universal Compatibility and Control

The OceanBridge is compatible with all major MFD units, including Garmin, Simrad, Lowrance, B G, Raymarine, and Furuno. OceanLED built the OceanBridge with complete accessibility in mind; no matter the boat, MFD, or lights, the OceanBridge is the complete control solution.

Features:

• Color control
• Expandable system
• Touch-sensitive
• Universal compatibility
• 10 dynamic scenes
• 10 lighting zones
• Dynamic audio control
• Wave Motion Mode

Technical Specifications:

• Water Protection Rating: IP66
• Power Consumption: 6W (500mA @12V DC)
• Operating Voltage: 12/24V DC (Max 32V DC)
• Power Input: NMEA 2000 Connector Port
• Input Cable Glands: IP68
• Output Cable Glands: IP68
• Wi-Fi: Built-In
• External Switch Inputs: Supports Four External Switch Inputs
• Bluetooth: Built-In
• On-board Sensors: Gyroscope Sensor Thermal Sensor
• Operating Temperature: -10C to 50C ambient
• Network Connections: NMEA 2000 connection Ethernet connection
• Audio: 1 x Audio-In 3.5mm | 1 x Audio-Out 3.5mm

Physical Specifications:

• Dimensions: 210mm x 91m x 65mm
• Weight: 490g
• Material: Robust Polycarbonate

The OceanLED OceanBridge Control Unit is a versatile, patented multizone lighting controller designed to provide seamless lighting management for all types of boats. Whether operating a small RIB, a large sport fishing vessel, a sailing yacht, or a motor cruiser, this compact system offers comprehensive control via MFD, smartphone, or tablet thanks to its integrated Wi-Fi module. Its user-friendly interface allows boat owners to manage OceanLED lights and accessories, as well as most third-party DC-powered lights, with ease. The system supports dynamic color changes, music synchronization, color fading, transitions, brightness adjustments, and unique movement-to-color functionality, delivering a customizable and immersive lighting experience.

The OceanBridge is engineered for flexibility, enabling the creation of up to 10 lighting zones and 10 pre-set scenes. These scenes can be tailored and saved for instant recall, allowing for personalized lighting modes suited to different activities or moods. The system’s ability to assign scenes to specific zones, along with features like OceanLED’s sweep scene mode for a Knight Rider effect, enhances the visual impact and operational convenience on any vessel. Additionally, up to four external switches can be integrated for quick access to preferred lighting modes, making control intuitive even from remote areas of the boat.

Supporting up to 64 lights simultaneously, the OceanBridge system is expandable with splitters to accommodate over 150 lights, including non-OceanLED options. Its compatibility with NMEA 2000 and various MFD brands such as Garmin, Raymarine, Lowrance, and Furuno ensures broad integration within existing marine electronics setups. The system also features advanced audio synchronization capabilities, allowing underwater and onboard lights to change color and mode in sync with music through Bluetooth or AUX input. The inclusion of a gyroscope sensor enables the lights to respond to vessel movement, creating dynamic effects that enhance onboard ambiance. The timer function further adds automation, enabling scenes to activate at specified times, enriching the overall lighting experience.

Constructed from durable polycarbonate with an IP66 water protection rating, the OceanBridge is built to withstand harsh marine environments. It operates efficiently on 12 or 24 volts DC, consuming just 6 watts, and offers flexible connectivity options including Ethernet and NMEA 2000. Its compact dimensions and lightweight design make installation straightforward without sacrificing robustness or functionality. This comprehensive control unit from OceanLED transforms boat lighting into a sophisticated, easily managed system, elevating the aesthetic and functional quality of any vessel's lighting setup.

Features:

• Color control for dynamic lighting customization

• Expandable system supporting over 150 lights with splitters

• Touch-sensitive interface for intuitive operation

• Universal compatibility with major MFD brands like Garmin and Raymarine

• Supports up to 10 dynamic light scenes and zones

• Music synchronization with onboard or underwater lights

• Wave Motion Mode for moving light effects

• Built-in Wi-Fi and Bluetooth for remote control and audio synchronization

• Supports external switch inputs for quick access

• Robust IP66 rated enclosure for marine durability
