OceanLED Sport 3116d DockLight - Ultra White Underwater LED Light for Docks

Sport 3116d DockLight - Ultra White

The OceanLED Sport DockLight is the perfect underwater LED light to create a stunning light display at your dock.

Packing an impressive 5,000 fixture lumens into a small body, combined with advanced optics, creates a truly remarkable Best-In-Class performance.

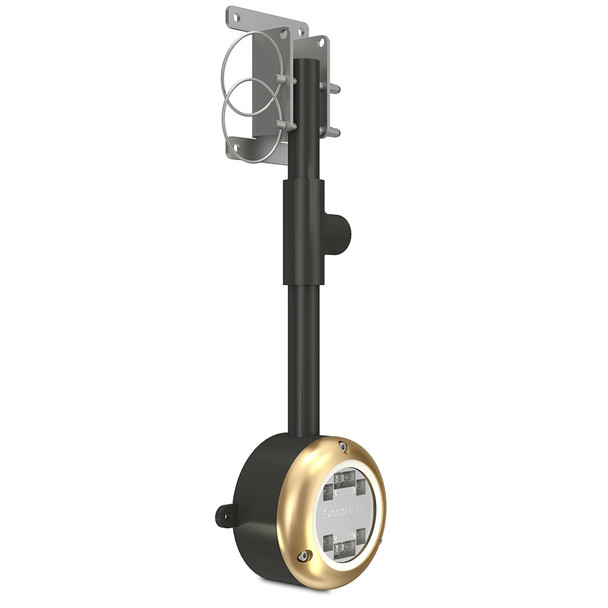

Compact, simple design with a small footprint. Easy to install and maintain with a choice of standard fixed dock or optional floating dock brackets.

Features:

• Brightest dock light in its class provides safety and security at your dock
• Create a stunning backdrop to your dock parties
• Increase interest and value in your property with stunning pictures for any marketing material
• 11,600 Lumens / 5,000 Fixture Lumens - Best-in-class performance from this ultrabright light makes it the obvious choice for those who want to stand out
• 90/20 Beam Angle - A true wide-angled, focused beam lights up a large area of the water around the dock

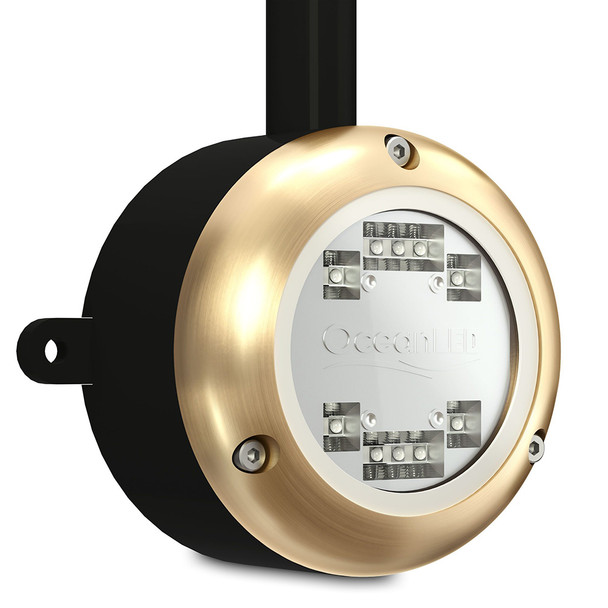

• Compact Simple Design - Made from corrosion resistant Alu Bronze, there is a lot packed into this 100mm / 4 light Simple plastic brackets keep footprint to a minimum
• Simple to Install - A choice of fixed or floating brackets, depending on tidal factors or dock type
• Easy to Clean - Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it. Optional Easi-Kleen floating bracket mechanism makes it simple to swing the light out of the water to clean
• Active Thermal Control - ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely

Specifications:

• Lumens: 11600
• Fixture Lumens: 5000
• Typical LED life expectancy: 40,000+ Hours
• Minimum-Maximum operating voltage DC: 20-32V DC
• Current / Amp draw (DC): 24V DC 2.4A
• Driver type: Internal, Reverse Polarity Protected
• Dock spacing: 5-10 (1.5-3m)
• Installation depth (To top of fixture): 12 (30cm)
• Total weight: 1.2kg
• Extension cable length (standard): 32.8 (10M)
• Hole cut-out for cable entry: 0.5 (12.5mm)
• Material: AB2 Aluminium Bronze

Specifications:

• Warranty: 2 years

The OceanLED Sport 3116d DockLight in Ultra White is engineered to enhance your dock's safety, security, and visual appeal. With an impressive output of 11,600 lumens, including 5,000 fixture lumens, this ultra-bright LED light ensures your dock area is well illuminated for both practical use and aesthetic enhancement. Its advanced optics and high lumen output create a stunning visual backdrop, perfect for dock parties, special events, or simply highlighting your waterfront property.

Constructed from corrosion-resistant AB2 Aluminum Bronze, the compact design features a minimal footprint, making installation straightforward whether using fixed or floating brackets. The versatile mounting options allow for easy adaptation to tidal variations or dock type, and the integrated Tritonium coating simplifies maintenance by preventing underwater growth buildup, which can be wiped off easily. Optional Easi-Kleen floating brackets facilitate quick cleaning by allowing the light to be swung out of the water, reducing maintenance time.

The Sport 3116d DockLight is equipped with active thermal control (ATC), which prevents overheating by adjusting the LED power levels or turning off the fixture if necessary, thereby extending the lifespan of the LEDs, which are rated for over 40,000 hours of operation. This fixture operates on 20-32V DC with a typical current draw of 2.4A at 24V, and features an internal, reverse polarity protected driver for reliable operation. Its wide beam angle of 90/20 degrees illuminates a large water area, providing both safety and aesthetic appeal. The lightweight design, weighing just 2.6 pounds, and the included 10-meter extension cable make installation flexible and efficient. Backed by a two-year warranty, the OceanLED Sport 3116d DockLight is an optimal choice for property owners seeking a high-performance, durable underwater lighting solution that elevates their waterfront experience.

Features:

• Brightest dock light in its class for enhanced safety and security

• Creates a stunning visual backdrop for dock parties and events

• Boosts property interest and marketing visuals with impressive illumination

• High lumen output of 11,600 lumens with 5,000 fixture lumens for superior brightness

• Wide beam angle of 90/20 degrees illuminates large water areas

• Corrosion-resistant AB2 Aluminum Bronze construction for durability

• Compact design with minimal footprint for easy installation

• Flexible mounting options with fixed or floating brackets

• Easy maintenance thanks to Tritonium coating and optional Easi-Kleen bracket

• Active thermal control (ATC) prevents overheating and prolongs LED lifespan

• Low power consumption with reliable internal driver and reverse polarity protection

• Lightweight and includes a 10-meter extension cable for installation versatility
