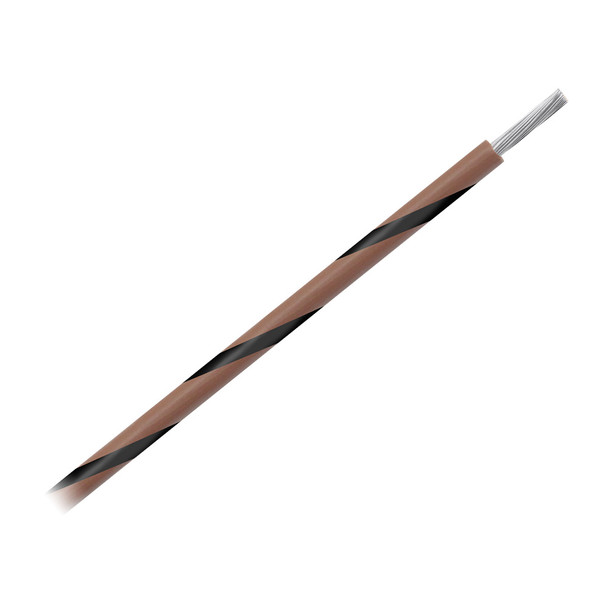

Pacer 14 AWG Gauge Striped Marine Wire 1000' Spool - Brown with Black Stripe

14 AWG Gauge Striped Marine Wire 1000' Spool - Brown with Black Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacer's primary striped wire meets the standards and requirements of UL, ABYC, and NMMA.

How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of its way to offer just that. By offering a variety of options, users are guaranteed to find the ideal combination. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today. This particular brown marine wire has a black stripe and comes in a 1000 ft. spool.

Features:

• Stranded, Tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Spool Length: 1000 ft.


• Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC


• Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer 14 AWG Gauge Striped Marine Wire offers a reliable solution for complex wiring projects on boats and marine equipment. Constructed with stranded, tinned copper conductors, this wire ensures excellent conductivity and resistance to corrosion, making it ideal for marine environments. Its flexible PVC insulation, which is color-coded with a black stripe on a brown base, facilitates easy identification among multiple wires, increasing installation efficiency. Manufactured in Sarasota, FL, USA, all Pacer marine wires meet stringent standards such as UL, ABYC, and NMMA, ensuring safety and durability in demanding conditions.
Designed for both versatility and durability, this 1000-foot spool of marine wire can handle a wide range of applications including point-to-point wiring and internal connections within panels and motors. The insulation remains flexible across a broad temperature range, from -20°C to 105°C, and supports a voltage rating of 600 volts. Its resistance to acids, alkalis, abrasion, flame, gasoline, oil, and moisture makes it suitable for challenging marine environments. Pacer offers over 100 color-coded and striped options, allowing users to select the ideal combination for their specific wiring needs.Compliance with industry standards such as UL 1426, AWM 1015/1230, AWM 1028/1231, MTW, and CSA TEW confirms the wire’s safety and quality. Its robust construction and detailed specifications make it suitable for critical electrical systems on boats, yachts, and other marine vessels. Whether performing new installations or repairs, this marine wire provides a dependable connection that withstands the rigors of marine life, ensuring long-term performance and safety.Trust Pacer’s expertise and quality manufacturing to deliver a product that simplifies complex wiring tasks while maintaining high standards of safety and durability.

Features:

• Stranded, Tinned copper conductors

• Highly flexible color-coded insulation

• Annealed Finely Stranded Tinned Copper ASTM b172 Class K

• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
