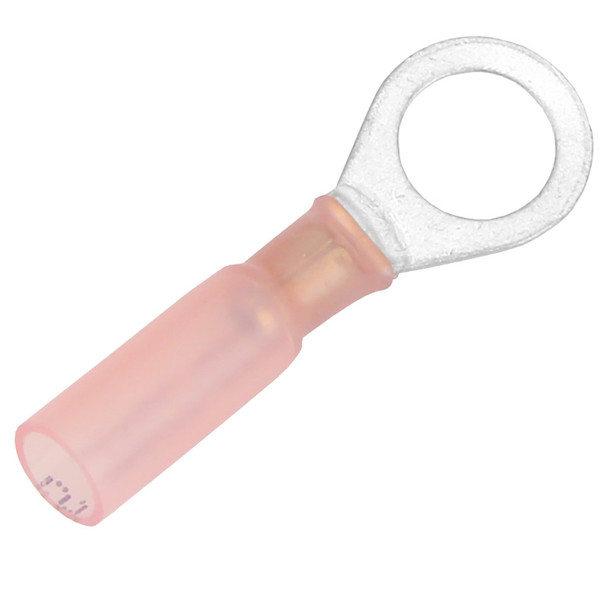

Pacer 22-18 AWG Heat Shrink Ring Terminal with 5/16" Stud Size - 25 Pack

22-18 AWG Heat Shrink Ring Terminal - 5/16 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion


• Added vibration protection in rugged environments


• Provides strain relief


• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion


• Conforms to automotive manufacturers specifications for wiring repairs


• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL


• CSA


• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C


• Operating Temp: -55 C - 125 C


• Vol. Resistivity: 1015 Ohm-cm3


• Dielectric Strength: 900-V/mil


• Voltage Rating: 600-V

Specifications:

• Wire: 22-18 AWG


• Stud Size: 5/16


• Terminal Pad Width: 0.47


• Package Size: 25

The Pacer TE18-56R-25 heat shrink ring terminals are designed for secure and reliable electrical connections in demanding environments. Compatible with 22-18 AWG wires and featuring a 5/16 inch stud size, these terminals provide a robust solution for automotive, industrial, and marine wiring applications. The heat shrink design includes an adhesive-lined polyolefin tubing that ensures a moisture-resistant, environmentally sealed connection, effectively preventing water ingress, corrosion, and contamination. This makes them ideal for use in environments exposed to moisture, salt spray, and vibrations, where long-term durability is essential. The translucent tubing with color coding and wire gauge imprint facilitates quick and accurate identification during installation. The heat shrink ratio of approximately 3:1 at 135°C allows for easy application, conforming to industry standards, and providing strain relief and vibration protection. The terminals are rated for up to 600 volts and can operate efficiently within a temperature range of -55°C to 125°C, ensuring versatility across various applications. Constructed to meet UL, CSA, and RoHS compliance, these ring terminals guarantee safety and environmental standards are maintained. The package contains 25 terminals, offering a cost-effective solution for large-scale wiring projects. Whether repairing or installing new wiring, users can trust the Pacer heat shrink ring terminals for a durable, sealed, and vibration-resistant connection that stands the test of time.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief

• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion

• Conforms to automotive manufacturers specifications for wiring repairs

• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
