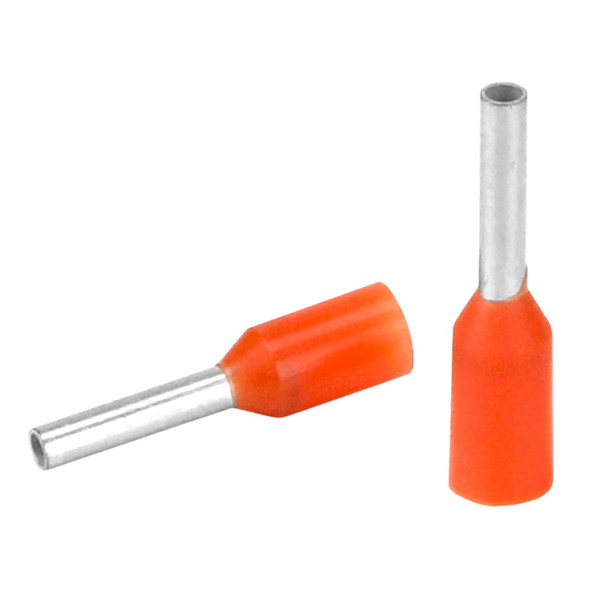

Pacer Orange 20-22 AWG Wire Ferrules - 6mm Length, 25 Pack

Orange 20-22 AWG Wire Ferrule - 6mm Length - 25 Pack

Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.

How are wire ferrules properly used The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose.

Features:

• Prevent strand separation while minimizing strand breakage


• Insulated ferrules provide additional electrical insulation


• Increase connection reliability when terminating stranded wire in terminal blocks

Specifications:

• Package Size: 25


• Wire Size (AWG): 20-22


• Insulation Color: Orange


• Ferrule Length: 6mm (0.24 in.)


• Stripping Length: 8mm (0.31 in.)

Wire fraying can compromise the safety and reliability of electrical connections, especially when working with IEC-style terminal blocks. The Pacer Orange 20-22 AWG Wire Ferrules are designed to prevent strand separation and minimize strand breakage, ensuring a secure and durable connection. These insulated ferrules cover stranded wire, making it behave like solid wire, which significantly enhances connection reliability and reduces the risk of connection failure in your electrical projects. The orange insulation provides additional electrical insulation, further protecting your connections from accidental shorts or environmental factors. Proper application involves stripping the wire to the recommended length, sliding the ferrule over the exposed wire, and crimping with the correct tool to ensure a solid connection. For added durability, heat shrink tubing can be applied after crimping to provide extra protection against environmental stressors. These ferrules are ideal for terminating stranded wire in terminal blocks, offering a dependable solution for electrical wiring tasks. The package includes 25 ferrules, each measuring 6mm in length, suitable for wire sizes ranging from 20 to 22 AWG. With easy-to-use features and reliable performance, Pacer wire ferrules are an essential component for professional electrical installations and maintenance. Whether you're working on industrial automation, residential wiring, or maintenance projects, these ferrules help ensure your connections remain secure over time, reducing downtime and increasing safety.

Features:

• Prevent strand separation while minimizing strand breakage

• Insulated ferrules provide additional electrical insulation

• Increase connection reliability when terminating stranded wire in terminal blocks
