Description

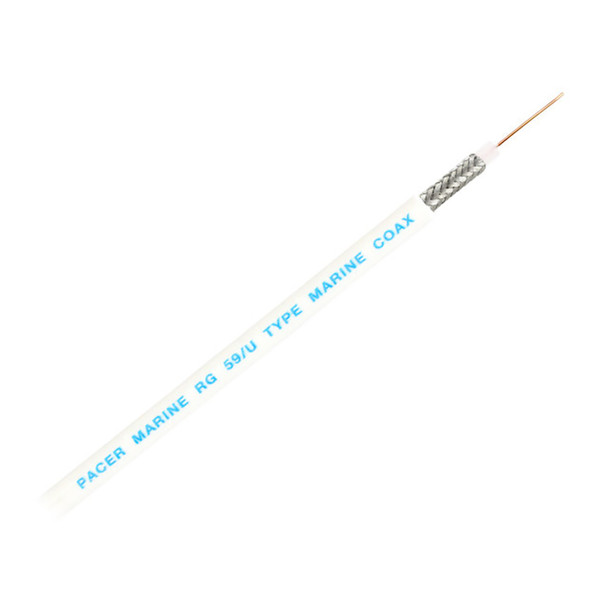

RG59UW Coax Cable - White - 200
Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. Youll recognize this cable style if youve looked at the back of your cable box or modem. Many people dont even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean
The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.
Why use Coaxial Cable RG59U This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6 making it ideal where limited space is an issue.
Specifications:
- Conductor AWG: 22 Solid Copper Clad Steel
- Insulation Material: Solid Polyethylene
- Shield Coverage: 95% Tinned Copper Braid 2.6/M
- Jacket Material/Nom. O.D.: White PVC 0.260
- Nom. Cap pF/ft: 20.5
- Velocity of Prop. (% pF/m): 66
- Nominal Impedance (Ohms): 73
The Pacer RG59UW coax cable is an essential component for transmitting low-power video, RF, and communication signals in various applications. Featuring a white PVC jacket, this 200-foot cable is designed for durability and ease of installation in residential, commercial, and industrial settings. Its compact size makes it suitable for environments where space is limited, without compromising signal quality. The cable's construction includes a solid copper-clad steel conductor with a 22 AWG gauge, ensuring reliable conductivity and signal integrity. The insulation is made of solid polyethylene, providing excellent dielectric properties that help maintain signal clarity over long distances. The shield coverage consists of a 95% tinned copper braid, which effectively minimizes electromagnetic interference and crosstalk, preserving high-quality signal transmission. With an impedance of approximately 75 ohms, the RG59UW is compatible with most video and RF equipment, such as cable TV systems, security cameras, and antennas. Its design restricts electromagnetic fields within the cable, reducing external interference and leakage, thereby improving overall performance. Whether you are setting up a home theater, surveillance system, or broadcast installation, this coax cable delivers dependable performance and straightforward connectivity for your media and communication needs.
Features:
- Conductors: 22 AWG solid copper clad steel for reliable conductivity
- Insulation: Solid polyethylene to maintain dielectric integrity
- Shielding: 95% tinned copper braid for effective electromagnetic interference reduction
- Jacket Material: White PVC with a durable, flexible outer layer
- Impedance: Approximately 75 ohms suitable for video and RF signals
- Length: 200 feet, ideal for extended runs without signal degradation
