Pacer Tinned Lug 1 AWG - 1/4 inch Stud Size - Pack of 10

Tinned Lug 1 AWG - 1/4 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated


• No exposed seams


• Rated for 600V


• Made from seamless tubes of 99.9% copper for higher conductivity


• Designed for stranded copper wires


• Larger pad area for better contact


• Cable size and stud hole stamped on pad


• Can be crimped or soldered


• Highly controlled flare to allow easy cable insertion


• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110


• ASTM-B-152 copper rated at 100% conductivity


• UL CSA Approved


• RoHS Compliant


• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 1


• Stud Size: 1/4


• Length: 1.719


• Width: 0.692


• Clearance: 0.406


• Package Size: 10

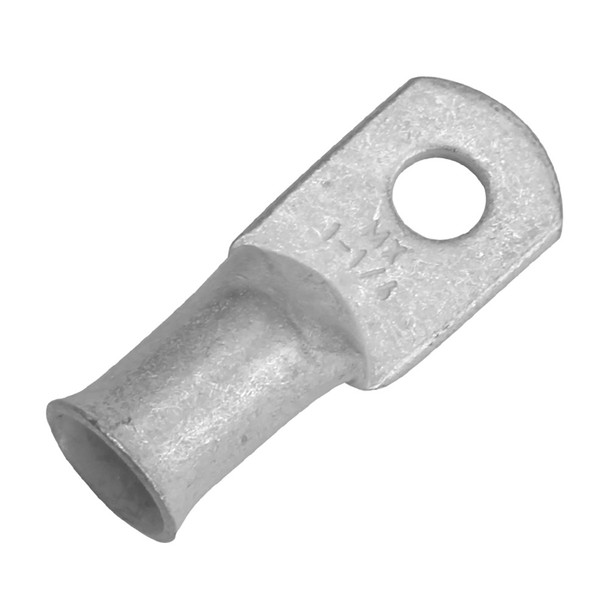

The Pacer Tinned Lug Part Number TAE1-14R-10 is designed to provide reliable and durable electrical connections, especially suited for marine and outdoor applications where waterproofing is essential. Crafted from seamless 99.9% copper tubing, these lugs offer high conductivity and strength, ensuring a secure connection for stranded copper wires. The tin-plated finish enhances corrosion resistance, making them ideal for harsh environments. With no exposed seams, these closed-end lugs prevent moisture ingress and provide long-lasting performance.

Installation is straightforward: strip the wire to the appropriate length, slide the lug over the conductor, and crimp using the proper tool. For extra durability and protection against the elements, epoxy-lined heat shrink can be applied, fully enveloping the conductor and leaving no exposed metal. The larger pad area improves contact quality, while the highly controlled flare facilitates easy cable insertion. The transition from barrel to pad is tightly designed to maximize barrel length, ensuring a robust connection.

Measuring approximately 1.72 inches in length and compatible with 1/4-inch studs, these lugs are rated for 600 volts and meet industry standards such as UL and CSA approvals. They are suitable for wire sizes from 8 AWG up to 4/0 AWG, providing versatility across various electrical systems. Each package includes 10 lugs, clearly stamped with cable size and stud hole for easy identification. Whether used in marine, industrial, or other demanding applications, Pacer's closed-end lugs deliver dependable, long-lasting performance with ease of installation.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for waterproofing

• Rated for 600V electrical systems

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for better contact

• Cable size and stud hole stamped on pad for easy identification

• Can be crimped or soldered for flexible installation

• Highly controlled flare for easy cable insertion

• Tight transition from barrel to pad for longer usable length
