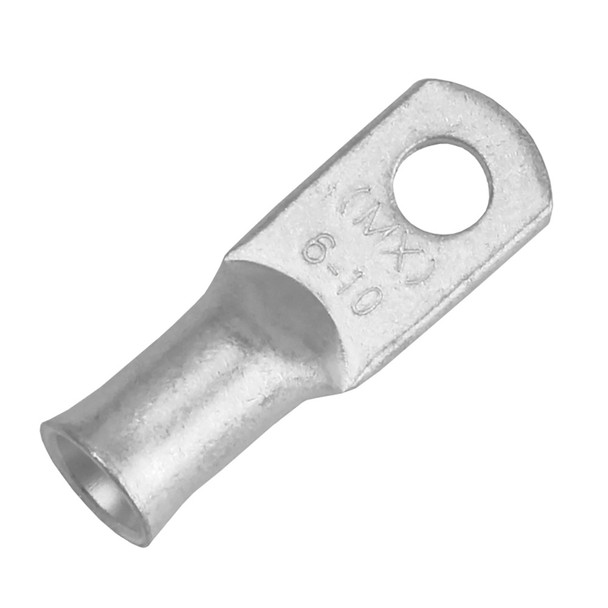

Pacer Tinned Lug 6 AWG with #10 Stud Size - 10 Pack for Reliable Marine and Electrical Connections

Tinned Lug 6 AWG - #10 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated


• No exposed seams


• Rated for 600V


• Made from seamless tubes of 99.9% copper for higher conductivity


• Designed for stranded copper wires


• Larger pad area for better contact


• Cable size and stud hole stamped on pad


• Can be crimped or soldered


• Highly controlled flare to allow easy cable insertion


• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110


• ASTM-B-152 copper rated at 100% conductivity


• UL CSA Approved


• RoHS Compliant


• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 6


• Stud Size: #10


• Length: 1.266


• Width: 0.438


• Clearance: 0.344


• Package Size:10

Ensure durable and corrosion-resistant electrical connections with the Pacer Tinned Lug 6 AWG, available in a convenient 10-pack. Crafted from seamless tubes of 99.9% copper, these lugs provide high conductivity and are designed specifically for stranded copper wires. The tin-plated finish offers excellent corrosion resistance, making them ideal for marine environments where waterproof connections are essential. The no-exposed-seam construction enhances durability and reduces potential points of failure, extending the lifespan of your electrical system. These closed-end lugs are easy to install: strip the wire to the proper length, slide the lug over the conductor, and crimp securely with the appropriate tool. For added protection and longevity, epoxy-lined heat shrink can be applied, fully enveloping the conductor and providing a waterproof seal against the elements. The larger pad area ensures better contact, while the tight transition from barrel to pad maintains a longer, usable connection length. The lugs are rated for 600 volts, suitable for a variety of low-voltage applications, and feature stamped cable size and stud hole markings for quick identification. They can be crimped or soldered to suit your preferred connection method, offering flexibility in installation. Compliant with industry standards such as ASTM-B-152, UL and CSA approvals, and RoHS regulations, these lugs meet rigorous quality and environmental standards, ensuring safe and reliable performance. The Pacer Tinned Lug 6 AWG with #10 stud size is an essential component for professional electrical installations, especially in marine or outdoor settings where corrosion resistance and waterproof connections are critical. Whether upgrading existing wiring or installing new systems, these lugs provide the dependable, high-quality connection you need for long-lasting results.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for durability

• Rated for 600V applications

• Made from seamless 99.9% copper tubing for high conductivity

• Designed for stranded copper wires

• Larger pad area for improved contact

• Cable size and stud hole stamped on the pad for easy identification

• Compatible with crimping or soldering methods

• Highly controlled flare facilitates easy cable insertion

• Tight transition from barrel to pad ensures longer usable length
