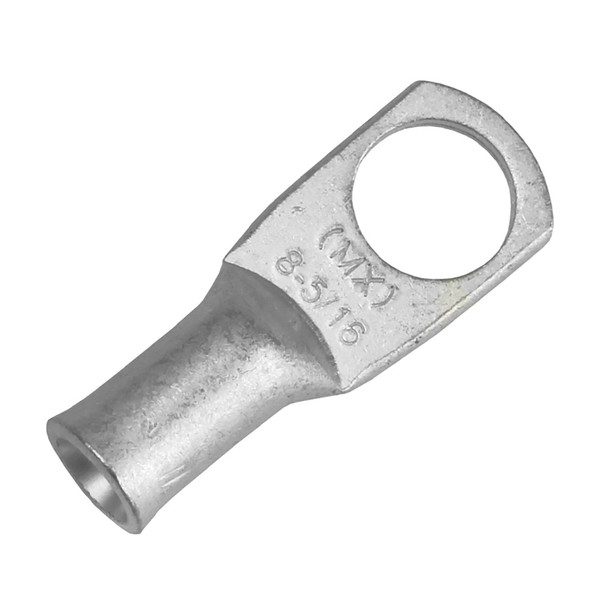

Pacer Tinned Lug 8 AWG - 5/16 inch Stud Size - 10 Pack for Reliable Electrical Connections

Tinned Lug 8 AWG - 5/16 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed-end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy-lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated


• No exposed seams


• Rated for 600V


• Made from seamless tubes of 99.9% copper for higher conductivity


• Designed for stranded copper wires


• Larger pad area for better contact


• Cable size and stud hole stamped on pad


• Can be crimped or soldered


• Highly controlled flare to allow easy cable insertion


• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110


• ASTM-B-152 copper rated at 100% conductivity


• UL CSA Approved


• RoHS Compliant


• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 8


• Stud Size: 5/16


• Length: 1.187


• Width: 0.438


• Clearance: 0.344


• Package Size: 10

The Pacer Tinned Lug Part TAE8-56R-10 is designed to provide secure and durable electrical connections for 8 AWG stranded copper wires. Made from seamless tubes of 99.9% copper, these lugs offer high conductivity and are tin-plated to resist corrosion, making them ideal for marine and outdoor applications. Their no-exposed-seam construction ensures a waterproof seal when used with epoxy heat shrink, protecting against moisture and environmental damage. The larger pad area enhances contact quality, ensuring a stable and reliable connection. These lugs are rated for 600V and are suitable for both crimping and soldering, offering versatility in installation. The precise flare facilitates easy cable insertion, and the tight barrel-to-pad transition provides a longer usable barrel length for increased reliability. The stud size of 5/16 inch makes these lugs compatible with a variety of terminal configurations, while the stamped cable size and stud hole on the pad aid in quick identification and proper assembly.

Features:

• Tin plated for corrosion resistance

• No exposed seams for waterproof sealing

• Rated for up to 600 volts

• Constructed from seamless 99.9% copper tubing for optimal conductivity

• Designed for stranded copper wires

• Larger contact pad for improved connection stability

• Cable size and stud size stamped on the lug for easy identification

• Suitable for crimping or soldering applications

• Highly controlled flare for easy cable insertion

• Tight barrel to pad transition extends usable barrel length
