Description

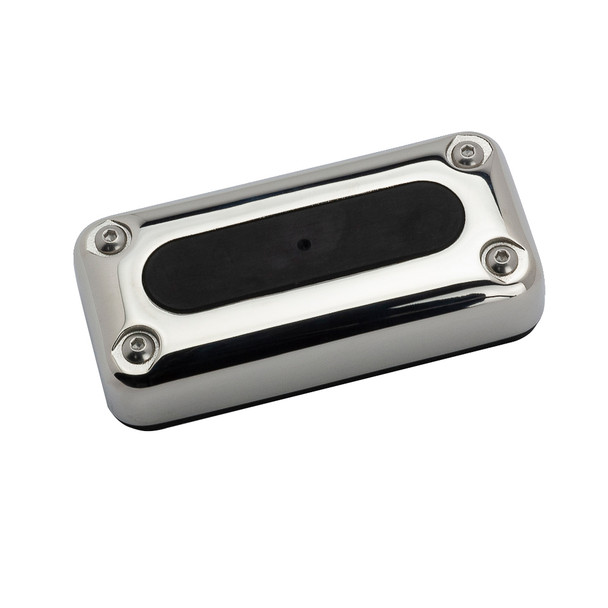

Polished Stainless Steel Cable Seal - Multi Cables (up to 2-17mm Each)
The Seaview Cable Seals (also known as CableClams, Cable Glands or Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 17mm to 34mm (0.67 to 1.38) connectors, making it ideal for almost every installation.
Features:
- No need to remove connectors - The split seal design eliminates the need to remove cable connectors during installation
- Watertight installation - Tapered rubber seal forms watertight installation. Base gasket also provided for clean, watertight installation. Waterproof rating of IPX6 and IPX7
- Improved shape and design - Low profile design for a strong, impact-resistant and clean installation. No sharp edges
- Drill tubes included - Each cable seal comes with 4 brass drill tubes (6, 8, 10 12mm). These are used to drill very clean and easy holes vs a typical drill bit. Some other brands do come with pre-drilled rubbers but we choose to include metal drill tubes that can be recycled or reused when finished vs the extra rubber pieces that will end up in the landfill from others
Note:
*All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.
The Seaview CGM17-SS Polished Stainless Steel Cable Seal offers a reliable waterproof solution for routing multiple cables through a single entry point. Crafted from durable marine-grade 316 stainless steel, these seals are designed for demanding environments where strength and corrosion resistance are essential. They accommodate cables ranging from 0.67 to 1.38 inches in diameter, making them highly versatile for various installation needs. The split seal design allows for installation without removing cable connectors, simplifying setup and maintenance. The tapered rubber seal ensures a watertight fit, providing an IPX6 and IPX7 waterproof rating to protect against water ingress in harsh conditions. A base gasket is included to ensure a clean, secure, and watertight seal, contributing to a professional and reliable installation. The low-profile design minimizes impact resistance issues and features smooth edges for safety and ease of handling. Each package includes four brass drill tubes (6mm, 8mm, 10mm, 12mm) that facilitate precise and clean drilling, making installation straightforward and reducing waste compared to typical pre-drilled rubber options. These reusable drill tubes promote environmental sustainability and cost efficiency. The Seaview Cable Seal is compatible with multiple cables provided each cable has its own hole, with a minimum of 0.125 inches of rubber around each opening, ensuring secure and waterproof cable management. Whether used in marine, industrial, or outdoor settings, these seals provide a professional-grade solution for cable entry points that require durability and waterproof integrity.
Features:
- No need to remove connectors - split seal design allows for easy installation without disconnecting cables
- Watertight installation - tapered rubber seal and base gasket ensure IPX6 and IPX7 waterproof ratings
- Low profile, impact-resistant design with smooth edges for a clean and secure fit
- Includes four reusable brass drill tubes for precise drilling of cable entry holes
