Description
AP44 VRF High Capacity Autopilot Pack with HS65 GNSS Compass
The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full colour display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.
Features:
- Rotary-dial course adjustment with intuitive autopilot control
- Optically bonded 4.1-inch color display
- Easy setup with auto-tuning and calibration
- Simrad Continuum steering technology
- Intuitive autopilot control
- Automated turn patterns
- No Drift steering
- Depth contour tracking
- Low-profile Glass Helm design
- Low power consumption
- Certified NMEA 2000 connectivity
Intuitive Autopilot Control
The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dial.
Automated Turn Patterns
Your Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.
Simrad Continuum Steering
Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachtings autopilot research hub in Norway.
Easy Setup with Auto-Tuning Calibration
Autopilot installation and commissioning doesnt have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.
NAC-3
The NAC-3 Autopilot Computer is the brain behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components, including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 meters (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

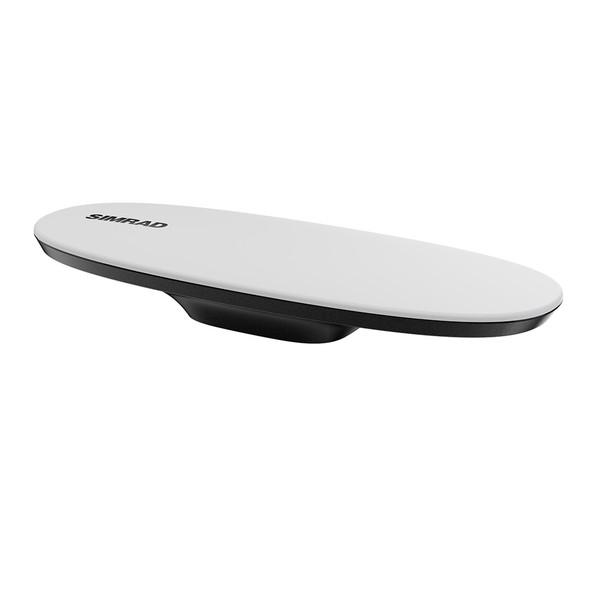

HS65 GNSS Compass
Simplicity of a compass and a GNSS receiver in one. Heading, Rate of Turn, Pitch, Heave, and Roll. Accurate heading based on dual GNSS data, free from magnetic interference. Easy Installation with NMEA2000 connectivity, Heading derived by dead reckoning using accelerometers when the signal is lost. Supports satellite-based augmentation systems (SBAS). Multiple mount options. Unique Selling Points: Heading accuracy without the restriction of magnetic interference to account for. Heading Accuracy of <2 RMS 10Hz ideal for Autopilot and MARPA applications. <90seconds cold start, Dead Reckoning for heading up 3 minutes following loss of satellite data. Position <1 Meter 10Hz Pitch/Roll Accuracy <1.5 RMS Sleek design Backup magnetic compass with <3 RMS* Heave <30CM RMS Supports GPS, GLONASS, Galileo, BEIDOU, QZSS1 Constellation options with SBAS Options for Flush, Raised or Pole mount 640mm/2ft NMEA2000 Fly-lead Low profile mounting adaptor for various installation types.
SteadySteer Flow Switch
Smoother steering. Use the helm to control the autopilot for greater ease of use. Steer manually through turns - convenient manual override. Autopilot engages automatically on straight legs. Seamless and intuitive boat control. Fuzz-free autopilot operation for hydraulic steering. Navigate safely with SteadySteer, functionality for autopilot systems that allows boaters to take immediate, manual control of the vessel through turns without having to disengage the autopilot. Coming out of turns, SteadySteer automatically reengages the autopilot once a new heading is established.
Control the Autopilot with the Helm
SteadySteer automatically disengages the autopilot when you turn the vessel manually and then reengages the autopilot when you have established a new heading. No key-presses, no alarms just turn the helm.
Less Distractions Just Drive
No need to look at a display or push buttons to change course; merely point the bow to your destination.

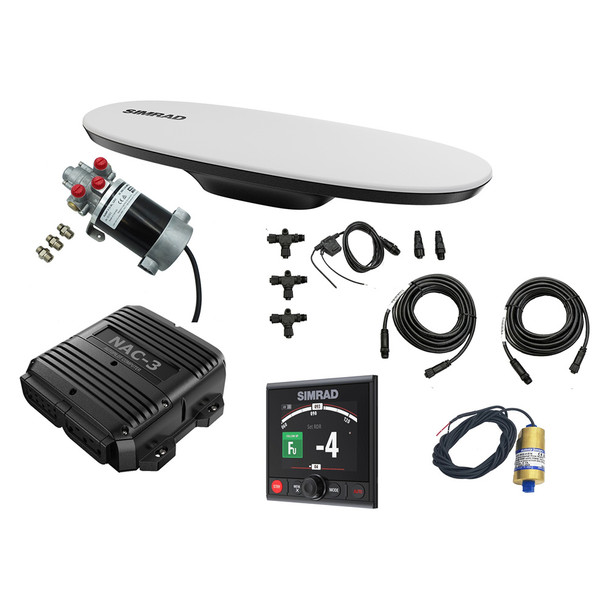

In The Box:
- 000-13289-001 - AP44 Controller
- 000-13250-001 - NAC-3 Computer
- 000-16235-001 - HS65 Compass -
- 000-15445-002 - Pump-3
- 000-10760-001 - N2K Autopilot Backbone Starter Kit
- 000-15734-001 - SteadySteer Flow Switch
- 000-0119-86 - N2K Cable - 4.5m (15ft)
The Simrad AP44 VRF High Capacity Autopilot Pack is a comprehensive solution designed to enhance vessel navigation and control. Featuring the latest Simrad Continuum steering technology, this autopilot system offers precise, reliable performance suitable for vessels 33 feet and larger. Its full-color, optically bonded 4.1-inch display provides clear visibility in various lighting conditions, while the intuitive rotary dial and four-button interface enable quick access to essential functions such as automated turn patterns, No Drift steering, and depth contour tracking. The system's modern glass helm design ensures a sleek profile that complements contemporary boat interiors. Autopilot setup is straightforward, with auto-tuning and calibration features that simplify installation and commissioning, reducing time spent on configuration while ensuring optimal performance.
The NAC-3 autopilot computer acts as the system's control hub, managing helm commands and interfacing seamlessly with hydraulic or mechanical drives rated for high current operation. The HS65 GNSS Compass integrated into the system provides highly accurate heading data, utilizing dual GNSS signals and dead reckoning to maintain precise navigation even in challenging environments. Its ability to support multiple satellite augmentation systems enhances reliability and positional accuracy, making it ideal for demanding maritime applications. The compact, low-profile design allows for flexible installation options, while the NMEA 2000 connectivity ensures compatibility with other onboard electronics.
Additional features include the SteadySteer Flow Switch, which enables smoother steering and manual override capabilities for greater control during turns. The autopilot engages automatically on straight legs, and the system re-engages seamlessly after manual helm inputs, providing a safe and intuitive user experience. This system allows boaters to focus on navigating rather than managing controls, reducing distractions and enhancing safety. The package includes all necessary components, such as the autopilot controller, NAC-3 computer, HS65 compass, pump, backbone starter kit, and control switches, ensuring a ready-to-install solution for professional or do-it-yourself boaters. The Simrad AP44 Autopilot Pack delivers advanced navigation features combined with user-friendly operation for a more confident and enjoyable boating experience.
Features:
- Rotary-dial course adjustment with intuitive autopilot control
- Optically bonded 4.1-inch color display for clear visibility
- Easy setup with auto-tuning and calibration
- Simrad Continuum steering technology for precise navigation
- Automated turn patterns for fishing and maneuvering
- No Drift steering capability for steady course keeping
- Depth contour tracking for navigation assistance
- Low-profile, glass helm design for modern aesthetics
- Low power consumption for efficient operation
- Certified NMEA 2000 connectivity for system integration
- HS65 GNSS Compass provides accurate heading data with dual GNSS and dead reckoning
- SteadySteer Flow Switch allows manual control during turns and automatic re-engagement
- Seamless autopilot engagement and manual override for safe navigation
