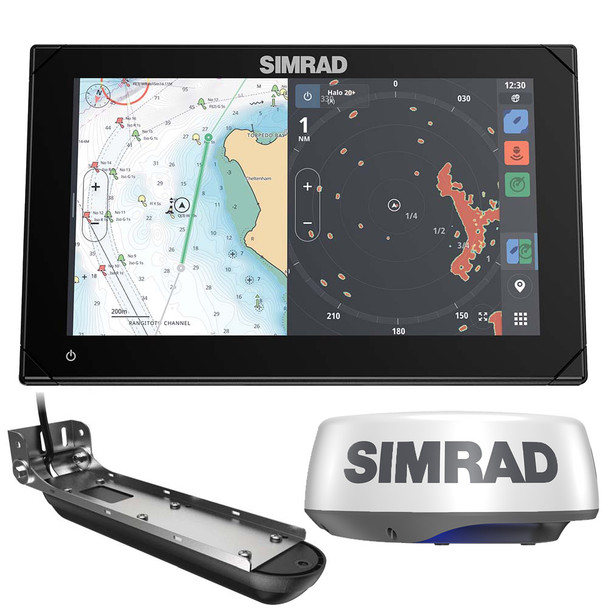

Simrad NSX 3009 Marine Chartplotter with Active Imaging 3-in-1 Transducer and HALO20+ Radar Bundle

NSX 3009 Radar Bundle - HALO20+ Radar Dome Active Imaging 3-in-1 Transducer

NSX 3009 9" Chartplotter Fishfinder with Active Imaging 3-in-1 Transducer

Everything about NSX is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal, DownScan Imaging, and SideScan.

Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.

An Intuitive Touchscreen Experience

Easily access all NSX features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.

Bring Navigation to Life with NSX

See map details in a different way with next-generation C-MAP DISCOVER X and REVEAL X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad Companion App plan trips, review Tracks, plot Waypoints, and sync directly.

Full Suite of Simrad Technology at Your Fingertips

Expand your system with advanced Simrad technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging, and compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO radars, and stay on course with legendary Simrad Autopilots.

Simple to Set Up, Easy to Manage

Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad App allows access to the best planning tools and hassle-free software updates and data transfer.

Features:

• Features a marine-optimized C-MAP DISCOVER X chart with a fresh, intuitive chart presentation and daily updates plus support for C-MAP REVEAL X charts


• High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses


• Active Imaging 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging, plus support for 1kW transducer capability to reach greater depths


• Quickly identify fish with FishReveal


• Setup Wizard to get you up and running quickly, plus a simpler sonar setup


• Full integration with the capability to expand the system with Simrad sonar, autopilot, radar, and more


• Faster Autorouting with seamless accessibility


• See near and far simultaneously (up to 48nm), with HALO Radar support and get ultra-fast updates every second


• Stay on course with full Simrad autopilot integration


• Clean and simple interface


• Simrad App integration keep your chart data at your fingertips, both on and off the water


• Third-party app integration


• Wireless connectivity, plus full Ethernet and NMEA 2000 networking capability


• IP Video Support

HALO20+ 20" Radar with 10M Cable

See Far And Near With One Compact Dome

Perfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far-away weather cells while watching for collision hazards up close. HALO20+ radars pulse compression technology means no compromises in detection at the either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Best View To Avoid Collision

HALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets.

Built-in VelocityTrack Doppler Technology

VelocityTrack technology grands instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; theres no need to manually select individual targets and no limit to the number of targets on screen at one time.

Ready Whenever You Are

HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.

Easy-to-Use Radar

Harbor, offshore, weather, and custom modes tune HALO20+ Radars advanced signal processing to help ensure that targets can be seen vividly even in the toughest environmental conditions.

Features:

• 36 nm range from a compact 20-inch dome


• Advanced pulse compression technology with beam sharpening


• Simultaneous Dual Range operation sees both far and near


• Ultra-fast 60 RPM operation at ranges up to 1.5 nm


• VelocityTrack Doppler technology to avoid collision


• Easy operation with harbor, offshore, weather, and custom modes


• MARPA target tracking (up to 10 targets, 20 in dual range)


• Ready instantly from standby


• Low power consumption

Included:

• 20" dome


• 10m cable (000-14548-001)


• Ethernet Adapter Cable (000-14552-001)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Simrad NSX 3009 Marine Chartplotter offers a comprehensive navigation and fishfinding solution designed for serious anglers and boaters. Featuring a 9-inch SolarMAX IPS touchscreen, this system provides vibrant, high-resolution visuals that remain clear from any viewing angle, even in direct sunlight or through polarized lenses. The intuitive interface allows easy access to all features, including drag-and-drop customization, day/night modes, and a setup wizard for quick installation. The system supports the latest C-MAP DISCOVER X charts, with daily updates and compatibility with C-MAP REVEAL X charts, delivering detailed marine mapping that enhances navigation accuracy. Advanced sonar capabilities are integrated through the Active Imaging 3-in-1 transducer, which supports CHIRP, SideScan, and DownScan Imaging, enabling anglers to identify fish precisely and explore underwater structures with clarity. Compatibility with a wide range of 1 kW transducers allows for extended depth reach and target resolution, making this system ideal for various fishing environments.

Experience seamless connectivity with wireless options, Ethernet, and NMEA 2000 networking, enabling integration with autopilots, radars, and other marine electronics. The system's fast Autorouting, combined with the Simrad App, allows planning trips, reviewing tracks, and managing waypoints both on and off the water. The full suite of Simrad technologies ensures you stay on course and aware of your surroundings, with features like advanced autopilot controls and third-party app support. The bundle also includes the HALO20+ radar, a compact 20-inch dome offering high-quality detection at short, mid, and long-range distances. Its industry-first 60 RPM rotation speed provides near real-time updates for collision avoidance and situational awareness, with VelocityTrack Doppler technology offering instant visual cues on target movement. The radar’s dual-range capability allows simultaneous monitoring of near and far targets, enhancing safety in diverse maritime conditions.Designed for rapid deployment, the HALO20+ radar features quick startup times and low power consumption, suitable for both harbor and offshore use. Its multiple modes—harbor, offshore, weather, and custom—are tailored to different operational needs, ensuring optimal target detection even in challenging environments. The package includes the radar dome, a 10-meter cable, and an Ethernet adapter cable for straightforward installation. Together, the Simrad NSX 3009 chartplotter, Active Imaging 3-in-1 transducer, and HALO20+ radar create a powerful, integrated marine electronics system that elevates navigation, fishfinding, and safety on the water.

Features:

• Marine-optimized C-MAP DISCOVER X charts with daily updates and support for C-MAP REVEAL X charts

• High-definition IPS touch screen with vibrant visuals and wide viewing angles

• Active Imaging 3-in-1 transducer supporting CHIRP, SideScan, and DownScan Imaging with 1 kW transducer compatibility

• FishReveal technology for quick and accurate fish identification

• Setup Wizard for easy installation and sonar configuration

• Expandable system compatible with Simrad sonar, autopilot, radar, and other marine electronics

• Faster Autorouting with intuitive, seamless access

• Simultaneous near and far viewing up to 48 nautical miles with HALO20+ radar support

• Real-time updates with ultra-fast 60 RPM radar rotation at ranges up to 1.5 nautical miles

• VelocityTrack Doppler technology for instant target movement feedback and collision avoidance

• Quick startup from standby mode for immediate operation

• Multiple operation modes including harbor, offshore, weather, and custom

• Wireless connectivity, Ethernet, and NMEA 2000 network integration

• Supports IP Video for enhanced situational awareness
