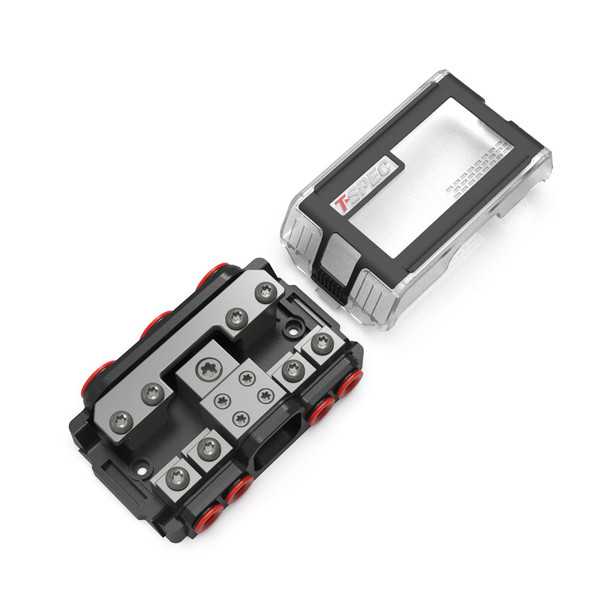

T-Spec VPNB4 MANL 4-Position All-In-One Distribution Block with Cover for High-Current Power and Ground Management

VPNB4 MANL 4 Position All-In-One Distribution Block with Cover

T-Spec designed VPNB4 distribution block to handle the high-current power and ground distribution for four (4) power sources, and protect them each with a mini-ANL fuse. This hefty little block distributes power from one (1) 1/0-gauge positive power cable to four (4) 4 to 8 gauge power leads, each routed through a mini-ANL fuse.

Then, the same block receives the amps' two ground wires and combines them for a single 1/0 to 4 gauge ground cable.

Fuses sold separately.

Features:

• (2 positive) 1/0 to 4 AWG in to (4 positives) 4/8 AWG out
• (1 negative) 1/0 to 4 AWG in to (4 negatives) 4/8 AWG out
• TPEwrapped soft touch
• Dual sizes gasket set
• Water-resistant
• Solid brass construction
• Black nickel finish
• T20 Torx screws
• Gate Lock technology

In the Box:

• Distribution block for both power and ground
• Plastic cover (attached)
• 3 Rubber grommets and sleeves on power inputs (installed)
• 2 Rubber grommets and sleeves on power outputs (installed)

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The T-Spec VPNB4 MANL distribution block is engineered to provide robust power and ground distribution for high-current automotive and audio systems. Designed with precision, this all-in-one unit connects a single 1/0-gauge positive wire to four 4 to 8 gauge outputs, each protected by a mini-ANL fuse (fuses sold separately). The device also consolidates two ground wires into a single 1/0 to 4 gauge ground cable, simplifying wiring architecture and enhancing system reliability. Constructed from solid brass with a durable black nickel finish, the VPNB4 offers excellent conductivity and corrosion resistance. Its TPE-wrapped soft-touch exterior and water-resistant design make it suitable for demanding environments, ensuring consistent performance even in challenging conditions. The distribution block features dual-sized gasket sets for secure sealing and includes T20 Torx screws for easy installation. Its innovative Gate Lock technology enhances safety by preventing accidental disconnections and ensuring stable connections. The unit comes with a protective plastic cover, rubber grommets, and sleeves for added protection of input and output cables, facilitating a tidy and secure wiring setup. Perfect for high-power audio systems, car audio, or other automotive electrical applications, the VPNB4 provides a reliable and organized solution for distributing high current loads efficiently. Note that fuses are sold separately, allowing users to select the appropriate ratings for their specific application. This versatile distribution block is an essential component for professionals and enthusiasts seeking a professional-grade power management solution in their vehicle or custom electrical projects.

Features:

• Two positive 1/0 to 4 AWG inputs distributing power to four 4/8 AWG outputs with mini-ANL fuse protection

• Single negative 1/0 to 4 AWG input consolidating two ground wires into one ground cable

• TPE-wrapped soft-touch exterior for durability and ease of handling

• Dual-sized gasket set for enhanced sealing and water resistance

• Constructed from solid brass for optimal conductivity and corrosion resistance

• Black nickel finish providing a sleek, corrosion-resistant exterior

• Includes T20 Torx screws for secure mounting and connection

• s Gate Lock technology for added safety and connection stability

• Comes with a protective plastic cover and rubber grommets for tidy wiring and protection
