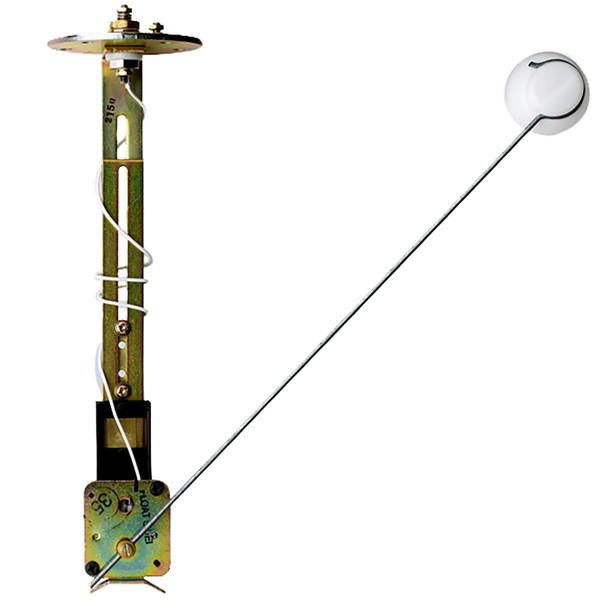

VDO ALAS Adjustable Fuel Sender - 6-3/4 to 23 Inches, 240-33 Ohm for Severe-Duty Vehicles

ALAS Adjustable Fuel Sender - 6-3/4 to 23" - 240-33 Ohm

VDO ALAS 12/24 V adjustable swingarm senders are engineered for severe-duty use. The sender main body features a plated steel construction to help eliminate damage caused by fuel slosh.

These units contain an SAE standard 5-hole metal mounting flange and body components, which can be adjusted from 6 in. to 23 in. tank depth, and are adaptable to right or left hand swingarm. For maximum durability, the wiper and thick film resistor are shielded (from fuel slosh) and the float arm stops to ensure the wiper remains in contact with its resistor board when tank is full or low.

Features:

• Connection - M4 Stud
• Voltage: 6-24V

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO ALAS Part Number 226-007 is a high-performance adjustable fuel sender designed for demanding applications. Crafted with a plated steel body, this unit offers enhanced durability to withstand rough conditions and resist damage caused by fuel slosh. Its adjustable design allows for precise installation in tanks ranging from 6 inches to 23 inches in depth, making it versatile for various vehicle configurations. The sender features an SAE standard 5-hole metal mounting flange and body components, ensuring secure installation and reliable operation. Equipped with a shielded wiper and thick film resistor, it maintains consistent contact regardless of fuel slosh, and the float arm stops prevent disconnects when the tank is full or nearly empty. The device operates on a voltage range of 6 to 24 volts and connects via an M4 stud, providing compatibility with numerous vehicle electrical systems. As a severe-duty component, it is engineered to deliver accurate fuel level readings in demanding environments, supporting vehicle safety and operational efficiency.

Features:

• Adjustable from 6 inches to 23 inches to accommodate various tank depths

• Constructed with plated steel for increased durability and resistance to damage

• Includes SAE standard 5-hole metal mounting flange for secure installation

• Shielded wiper and thick film resistor to prevent fuel slosh interference

• Float arm stops ensure consistent contact when tank is full or low

• Voltage range of 6 to 24 volts for versatile electrical compatibility

• Connection via M4 stud for reliable electrical connection
