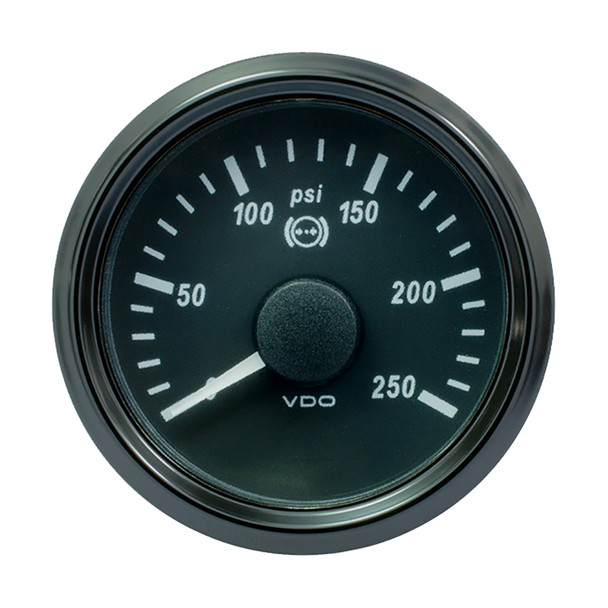

VDO SingleViu 52mm Brake Pressure Gauge - 250 PSI with 0-4.5V Analog and J1939 CAN Compatibility

SingleViu 52mm (2-1/16") Brake Pressure Gauge - 250 PSI - 0-4.5V

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

*0 - 4.5V Sender Required

Features:

• 0 - 4.5V Default Input
• RGB LED Illumination (default illumination set to White)
• Water Resistant Front Rear
• Includes Wire Harness
• Voltage 12-24V
• Molex MX 150 8 Pin Connector
• Spin-Lok Mounting Hardware
• Analog Input

Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO SingleViu 52mm brake pressure gauge offers advanced technology combined with reliable performance for professional and enthusiast applications. With a 2-1/16 inch diameter, this gauge measures up to 250 PSI, providing precise pressure readings essential for maintaining optimal brake system operation. Its innovative design allows seamless integration with both traditional analog senders and modern J1939 CAN networks, thanks to its built-in microprocessor that supports dual-input switching via dedicated configuration software. This flexibility ensures compatibility with a wide range of vehicle systems, simplifying installation and enhancing diagnostic capabilities by displaying J1939 fault codes directly on the gauge. Constructed with waterproof and fog-proof materials, the SingleViu gauge maintains clear visibility in challenging environments. The RGB LED illumination, set to white by default, enhances readability in low-light conditions, while the advanced stepper motor ensures accurate and steady needle movement. Additionally, the gauge includes a wire harness and features a Molex MX 150 8-pin connector along with Spin-Lok mounting hardware for secure installation. Its operating voltage range of 12 to 24 volts makes it suitable for various vehicle electrical systems, ensuring reliable operation across different applications. Whether used for traditional pressure monitoring or integrated into modern CAN-based systems, the VDO SingleViu 52mm brake pressure gauge delivers precise, versatile, and durable performance that meets the demands of professional vehicle diagnostics and maintenance.

Features:

• 0 - 4.5V default analog input, compatible with traditional sensors

• RGB LED illumination with adjustable colors, default set to white

• Water-resistant front and rear construction for durability in harsh environments

• Includes a wire harness for straightforward installation

• Operating voltage range from 12 to 24 volts for versatile use

• Molex MX 150 8-pin connector ensures secure electrical connections

• Spin-Lok mounting hardware for easy and stable installation

• Supports dual input with switchable analog and J1939 CAN communication

• Displays J1939 fault codes for comprehensive system diagnostics

• Designed by VDO for reliable performance and advanced features
