Veratron Deep-Pipe Level Sender 420mm for Fuel and Water Tanks

Deep-Pipe Level Sender - 420mm - 240 to 33 OHM

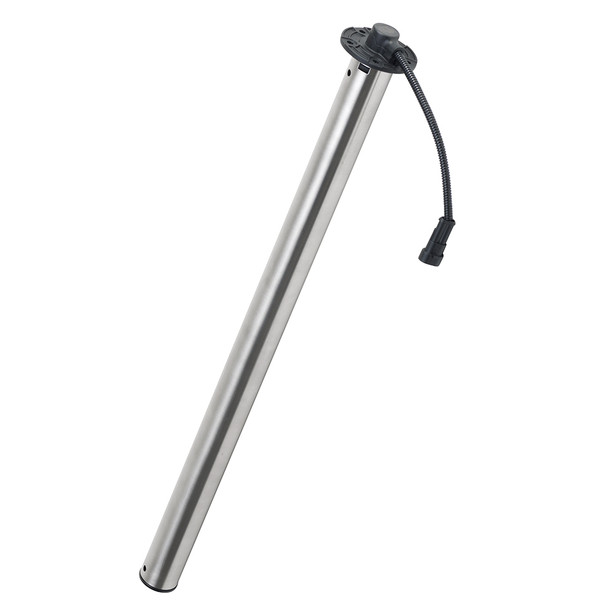

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 420 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 240 to 33 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender, part number A2C1747160001, is a reliable solution designed for accurate liquid level measurement in fuel tanks and water containers. This 420 mm stainless steel tubular sensor features a float mechanism that provides consistent readings even during rough sea conditions, thanks to small holes at the top and bottom of the tube acting as baffles to minimize fuel sloshing effects. Its robust construction ensures durability and long-term performance in demanding environments, making it suitable for marine, industrial, and automotive applications.
The sensor's design includes a 5-hole SAE flange made from PA66 GF30, facilitating straightforward installation. It operates within a temperature range of -25°C to 65°C (-13°F to 149°F) and supports an input voltage of 6 to 24 VDC. The device communicates via an analog signal with a resistance range of 240 to 33 ohms, providing precise level readings. The included wiring harness measures 8 inches long, simplifying wiring connections, while the TE Superseal 2-Pole IP67 connector guarantees protection against dust and water ingress. The sensor's versatile design allows compatibility with various liquids, including petroleum, diesel, gasoline, and water.
This sensor is available in various lengths, starting at 150 mm up to 1200 mm, allowing customization to specific tank depths. When selecting a length, ensure it is at least 4 mm shorter than the tank's depth for proper installation. The package includes the sensor, installation kit, safety instructions, and detailed installation guidelines, ensuring a smooth setup process. This product is sold individually and is ideal for applications requiring reliable liquid level monitoring in challenging environments. For any issues or concerns, contact the manufacturer directly, as this item may not be returned to the point of purchase.

Features:

• Tubular sensor made from stainless steel for durability

• Suitable for measuring fuel (oil, petroleum, diesel, gasoline) and water

• 420 mm length for versatile installation

• Includes flange: 5-hole SAE, 54mm diameter, made from PA66 GF30

• Operates within -25°C to 65°C (-13°F to 149°F)

• Supports 6 to 24 VDC operating voltage

• Provides analog signal output with resistance range of 240 to 33 ohms

• TE Superseal 2-Pole IP67 connector for water and dust resistance

• Wiring harness length of approximately 8 inches for easy connections

• s a compensation chamber to ensure stable readings during movement
