Veratron Deep-Pipe Level Sender 550mm - 240 to 33 OHM for Fuel and Water Tanks

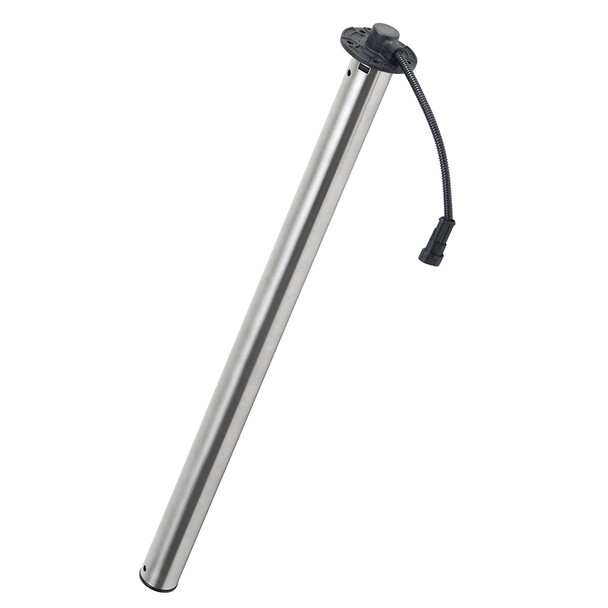

Deep-Pipe Level Sender - 550mm - 240 to 33 OHM

Deep-Pipe Level Sensor is ideal for usage in fuel tanks. Its 38 mm diameter vertical tube contains a float inside, which measures a level of the liquid. Small holes at the top and bottom of the tube act as a baffle to fuel sloshing around in the fuel tank, so the float position remains stable at any sea state.

Sensors are made in various lengths starting at 150 mm increasing to 1200 mm please ensure that the length chosen is at least 4 mm from the base of the fuel tank once fitted.

Features:

• Tubular Sensor Stainless Steel


• Suitable for Fuel (Oi -Petroleum-Diesel-Gasoline) and Water


• Length: 550 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67


• Operating Temp.: -25C to 65C or -13F to 149F


• Operating Voltage: 6 to 24 VDC


• Compensation chamber


• Flange: 5-Hole SAE Flange 54mm PA66 GF30


• Wiring harness with length of 200 mm


• Signal ranges: 240 to 33 OHM


• IP67 protection rating


• Communication: Analog

In the Box:

• Deep-Pipe Level Sensor


• Installation Kit


• Safety Instructions


• Installation Instructions

*Sold as an Individual

The Veratron Deep-Pipe Level Sender model A2C1747260001 is designed for precise liquid level measurement in fuel tanks and water reservoirs. This 550 mm stainless steel tubular sensor features a float mechanism that accurately detects the level of liquids such as gasoline, diesel, petroleum, or water. The sensor's design incorporates small holes at the top and bottom of the tube, acting as a baffle to prevent fuel sloshing during movement or in rough sea conditions, ensuring consistent readings.

Constructed from durable stainless steel, this sensor is built to withstand harsh environments with an operating temperature range from -25°C to 65°C (-13°F to 149°F). It includes a TE Superseal 2-Pole IP67 connector for reliable, waterproof electrical connections and operates within a voltage range of 6 to 24 VDC. The sensor's signal output varies from 240 to 33 ohms, which is suitable for many fuel gauging systems, and it communicates via an analog signal. The flange is a 5-hole SAE type with a 54 mm PA66 GF30 material, ensuring a secure and stable installation.

Designed for ease of installation, the sensor comes with a wiring harness measuring 8 inches (200 mm) and an installation kit with safety and instruction manuals. When fitting this sensor, ensure it is at least 4 mm above the tank's base for accurate measurement. Its IP67 protection rating guarantees resistance to dust and water ingress, making it suitable for marine, automotive, and industrial applications. This individual sensor is sold separately, and customers are advised to contact the manufacturer directly for any support or concerns, as returns to the original point of purchase may not be accepted.

Features:

• Tubular sensor made of stainless steel for durability

• Suitable for measuring fuel (oil, petroleum, diesel, gasoline) and water

• Length: 550 mm with float mechanism for liquid level detection

• Built-in baffle holes to prevent fuel sloshing and ensure stable readings

• IP67 rated for dust and water resistance

• Operating temperature range from -25°C to 65°C (-13°F to 149°F)

• Voltage range: 6 to 24 VDC for versatile power options

• Signal output: 240 to 33 ohms for compatibility with gauge systems

• Includes TE Superseal 2-Pole IP67 connector and 8-inch wiring harness

• 5-hole SAE flange with durable PA66 GF30 material for secure mounting
