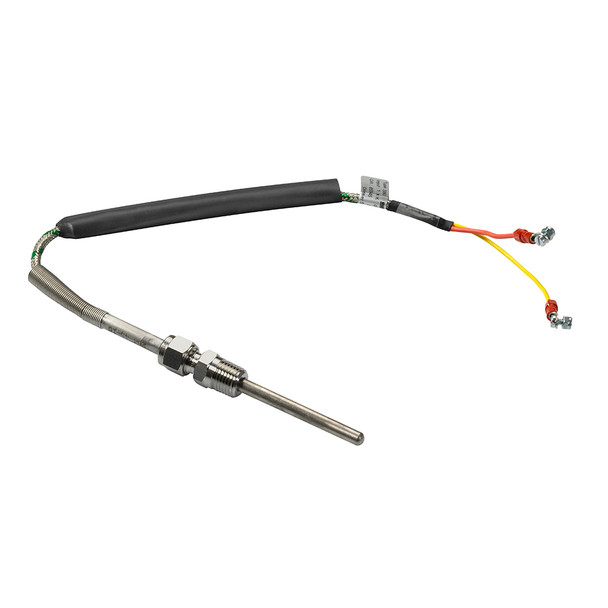

Veratron N03-320-264 Pyrometer Sensor for Exhaust Gas and Engine Oil - 100-900°C / 250-1650°F

Pyrometer Sensor - 100-900C/250-1650F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

• Plug-and-Play installation and configuration


• NMEA 2000 certified

Technical Specifications:

• Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel


• Input Signal - LIN bus


• Operating Voltage - 6 - 24 VDC


• Pyrometer Sensor


• Thermocoupler Element


• Measurement Range - 100-900C/250-1650F


• Communication - Analog


• Signal Output - 0 - 37 MV TC


• Sensor Connector - Ring Tongue


• Thread - R 1/4" Male


• Warning Contact - None


• Connector Type - Kabeloog


• Sender element length + thread (L) - Adjustable maximal 60 mm


• Sensor diameter - 6 mm


• Torque - 20 Nm

*Sold as an Individual

The Veratron N03-320-264 pyrometer sensor is designed for precise temperature measurement in various automotive and industrial applications. Compatible with the LinkUp Gateway Module, this sensor is ideal for monitoring exhaust gas, coolant, water, air, engine oil, transmission oil, and fuel temperatures. Its robust thermocouple element ensures accurate readings across a wide range from 100°C to 900°C (250°F to 1650°F), making it suitable for both high-temperature exhaust systems and engine components. The sensor features a compact 6 mm diameter design with an R 1/4" male thread, enabling easy installation in tight spaces. Its adjustable sender element length, with a maximum of 60 mm, provides flexibility to accommodate different setups. The sensor operates on a voltage range of 6 to 24 VDC and communicates via analog signal output, specifically 0-37 mV thermocouple voltage, compatible with LIN bus systems. The design incorporates a ring tongue sensor connector for reliable connections and a torque specification of 20 Nm to ensure secure installation. Certified as NMEA 2000 compatible, this plug-and-play sensor simplifies integration with existing vehicle networks, reducing installation time and complexity. Whether used for engine diagnostics or real-time temperature monitoring, the Veratron N03-320-264 sensor offers durability and precision in demanding environments. Each unit is sold individually and is built to meet the rigorous standards required for automotive and industrial applications. Please contact the manufacturer directly for any support or warranty inquiries, as returns are not accepted at the point of purchase.

Features:

• Plug-and-play installation and configuration simplifies setup process

• NMEA 2000 certified for seamless integration with marine and vehicle networks

• Wide measurement range from 100°C to 900°C (250°F to 1650°F) for versatile applications

• Compact design with 6 mm diameter and adjustable length for flexible installation

• Operates on 6-24 VDC power supply with analog output for accurate readings

• Robust thermocouple element ensures durability in demanding environments

• Secure R 1/4" male thread for reliable mounting and connection

• Includes a ring tongue sensor connector for stable electrical contact

• Designed for use with exhaust gas, engine oil, coolant, water, air, and fuel temperature monitoring
