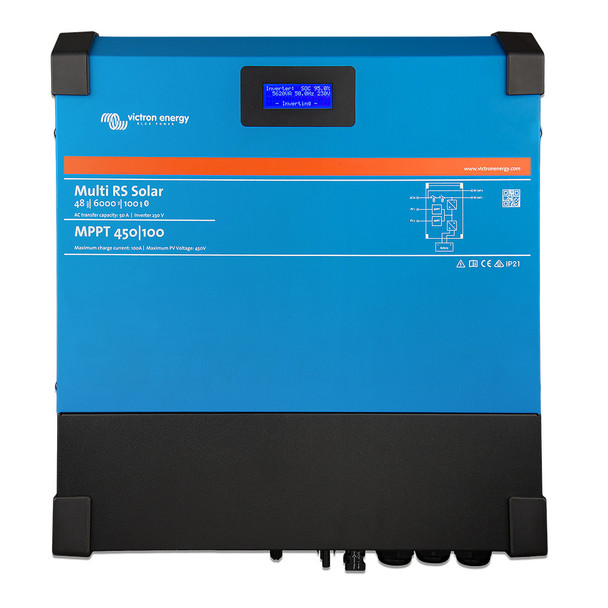

Victron Energy Multi RS Solar 48/6000 Inverter/Charger

Multi RS Solar 48/6000 Inverter/Charger

The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent 3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct grid connection without batteriesperfect for starting simple and adding storage later.

Updated in mid-2023 to a dual tracker design, its high-frequency technology delivers exceptional efficiency in a quiet, lightweight package with low standby power. Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trends, firmware updates, and configuration tools. Connect to a Cerbo GX for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.

Operating Modes:

• Hybrid mode Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
• Backup mode Switches to backup mode during a grid outage.
• Off-grid mode Operates without a grid connection.
• Generator mode Controls the generator to minimize run hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.
• PV Inverter mode Works as a PV inverter without a battery.

PowerControl PowerAssist - Boosting the capacity of the grid or a generator

A maximum grid or generator current can be set. The Multi RS will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi RS will compensate insufficient generator or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

Display, Bluetooth VictronConnect app

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device , using the VictronConnect app.

Extendable PV capacity, both AC -coupled DC -coupled

The integrated 6 kWp PV capacity can be extended by adding solar chargers to the system. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated frequency shift power control.

Communication Ports

VE.Can connection to a GX device for system monitoring, energy meter (11), data logging, and remote firmware updates.

VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O Connections

Programmable relay, temperature sensor and voltage sensor connections

The Victron Energy Multi RS Solar 48/6000 Inverter/Charger is a versatile and efficient power management solution designed for solar and hybrid energy systems. With a 48V rating and a 6kVA inverter capacity, it features two independent 3kWp PV MPPT trackers supporting a total of 6kWp panel capacity, enabling optimal solar energy utilization. This model is ideal for both new installations and system expansions, supporting direct grid connection without requiring batteries, making it suitable for simple setups with future storage integration.

Updated in mid-2023, the Multi RS 48/6000 incorporates dual trackers and high-frequency technology, ensuring high efficiency while maintaining a lightweight and quiet operation. The integrated display provides real-time monitoring of battery, inverter, and solar parameters, with additional control and data access via the VictronConnect app on Bluetooth-enabled devices. The system supports connection to a Cerbo GX for advanced energy management functions such as zero-export grid feed-in and backup mode to sustain critical loads during outages.

This inverter/charger supports multiple operating modes including hybrid, backup, off-grid, generator, and PV inverter modes. Hybrid mode allows for storing excess solar energy in batteries for night use or during high demand. Backup mode activates during grid failures to supply essential loads. Off-grid mode enables independent operation without grid connection, while generator mode manages generator operation to minimize run hours and optimize power supply. PV inverter mode allows the unit to work solely as a PV inverter without batteries, providing flexible system configurations.

PowerControl and PowerAssist features enhance system capacity and reliability by managing maximum grid or generator current, preventing overloads, and compensating for peak power demands with battery power. When the load reduces, excess power is used to recharge batteries, maintaining system balance. The system's extendable PV capacity supports both AC-coupled and DC-coupled configurations, allowing system expansion by adding solar chargers or PV inverters, with automatic power control ensuring system stability.

Communication options include VE.Can ports for system monitoring via GX devices and energy meters, as well as VE.Direct connectivity for remote data logging through GlobalLink 520. The inverter also features programmable I/O connections such as relays, temperature, and voltage sensors for customized integration. Designed with a compact form factor, the Multi RS 48/6000 is suitable for a variety of solar power applications, providing efficient, flexible, and reliable energy management.

Features:

• Dual MPPT trackers supporting up to 6kWp solar capacity

• High-frequency technology for efficiency and quiet operation

• Multiple operating modes including hybrid, backup, off-grid, and generator

• PowerControl and PowerAssist for peak load management

• Integrated display and Bluetooth connectivity via VictronConnect app

• Supports system expansion with additional solar chargers and PV inverters

• Communication ports for system monitoring and remote management

• Programmable relays, temperature, and voltage sensors for customization
