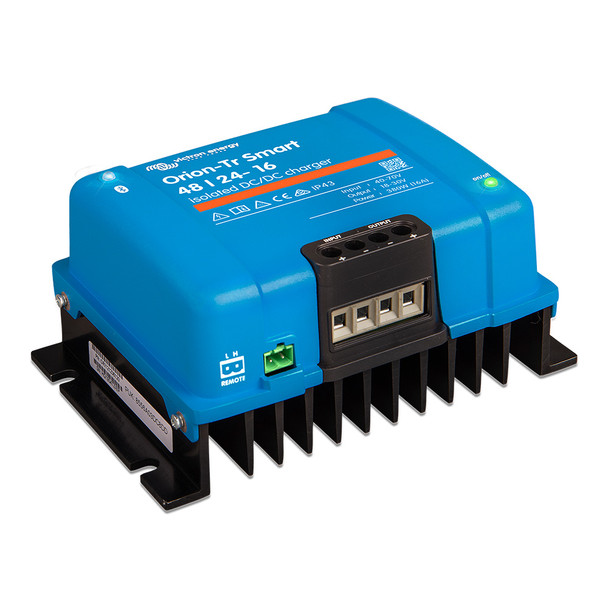

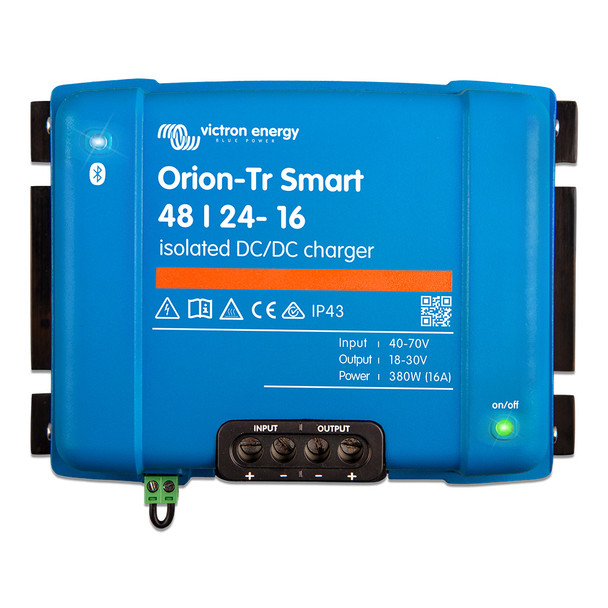

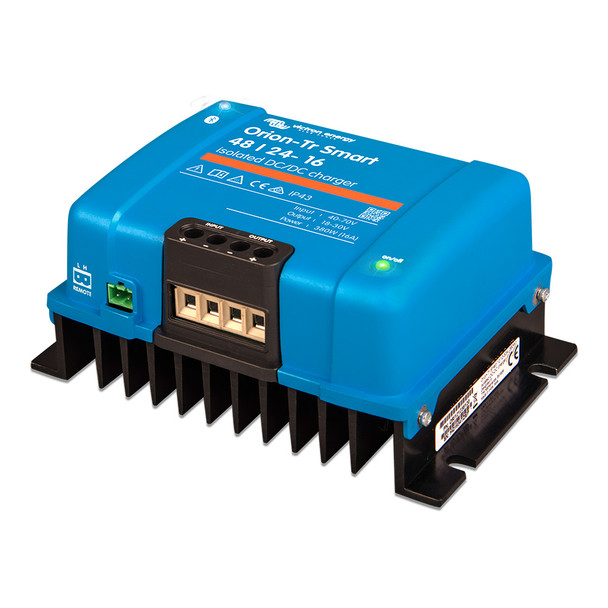

Victron Energy Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger with Bluetooth

Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55C with a full rated output up to 40C.

Bluetooth Smart enabled

• Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.


• Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.

Fully programmable

• Battery charge algorithm (configurable) or fixed output.


• Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk absorption float

• For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.


• For lithium batteries absorption time is fixed, default 2 hours.


• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)

• The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.

Remote on/off

• A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

• An unlimited number of units can be connected in parallel.

High temperature protected

• The output current will reduce at high ambient temperatures.

IP43 protection

• When installed with the screw terminals oriented downward.

Screw terminals

• No special tools are needed for installation.

Input fuse (not replaceable)

The Victron Energy Orion-Tr Smart 48/24-16A (380W) Isolated DC-DC Charger is a professional-grade device designed for dual battery systems in vehicles and boats. This adaptive 3-stage charger features built-in Bluetooth connectivity, allowing users to monitor and configure the unit remotely via compatible smartphones or tablets using the VictronConnect app. The charger supports both 12V and 24V systems and is compatible with lead acid and lithium batteries, making it versatile for various applications. It includes a fully programmable charge algorithm, with options for adjustable absorption and float stages, ensuring optimal battery health and performance across different chemistries. The unit's smart alternator compatibility and engine running detection mechanism enable it to work effectively with Euro 5 and Euro 6 engines, preventing unwanted discharge of the starter battery when the engine is off. Its robust construction includes protection against high temperatures and short circuits, and it can be connected in parallel with unlimited units to increase output power, providing flexibility for larger setups. The device features a remote on/off switch and is IP43 rated for protection when installed with screw terminals downward, offering ease of installation without the need for special tools. Additionally, the built-in engine shutdown detection ensures the charger operates only when the engine is running, further safeguarding your batteries and vehicle systems. Suitable for demanding environments, the Orion-Tr Smart charger is an efficient solution for maintaining reliable power in mobile or marine applications, combining advanced features with straightforward control and installation. Its compact design and compatibility with various battery types make it a practical choice for professional and recreational users seeking a dependable DC-DC charging solution.

Features:

• Bluetooth Smart enabled for remote monitoring, configuration, and software updates

• Adaptive 3-stage charging algorithm for optimal battery health, including bulk, absorption, and float stages

• Supports 12V and 24V systems, compatible with lead acid and lithium batteries

• Engine running detection and compatibility with Euro 5 and Euro 6 smart alternators

• Remote on/off control via switch or relay contact

• Short circuit proof with unlimited parallel unit connections for increased power

• High temperature protection with output current reduction at elevated temperatures

• IP43 rated enclosure for outdoor or challenging environments

• Screw terminals for easy installation without special tools

• Built-in engine shutdown detection to prevent battery drain when engine is off
