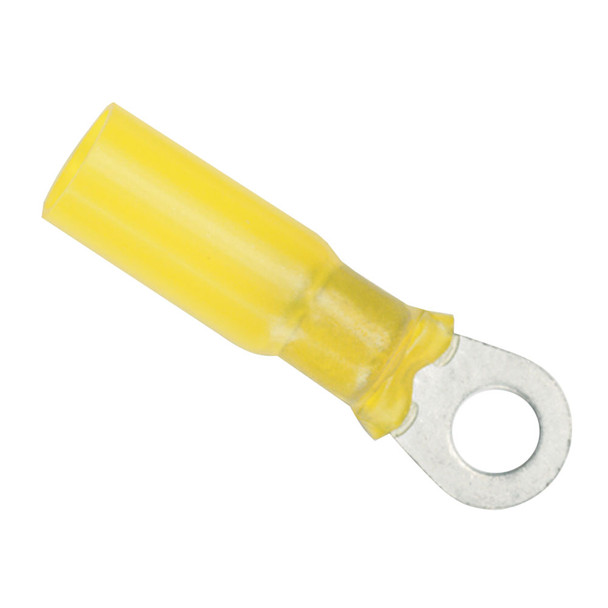

Ancor 12-10 Gauge 1/4 inch Heat Shrink Ring Terminal - 25 Pack

12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

Gauge Size: 12-10
Screw Size: 1/4"
Quanitity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257 F/125 C




• Operating temperature range 40 C to 110 C




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief




• Tinned for corrosion resistance




• Pure copper for maximum current flow




• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Gauge 1/4 inch heat shrink ring terminals are designed for reliable electrical connections in demanding environments. Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger and more durable than standard PVC options, offering increased resistance to heat, chemicals, and physical stress. The heat-activated adhesive lining ensures a watertight seal around the wire, providing superior protection against salt water, oils, acids, and sunlight while also delivering strain relief to prevent connection failures. These features make them ideal for marine, automotive, and industrial applications where durability and corrosion resistance are critical.
The nylon insulator used in these terminals is preferred by professionals for its outstanding resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. Tinned copper construction ensures maximum current flow and corrosion resistance, while a brazed seam enhances overall strength and reliability. The high shrink ratio allows the tubing to shrink to one-third of its original size, providing a tight, secure fit after heating. These terminals are designed to shrink at approximately 257°F (125°C) and operate effectively within a temperature range of 40°C to 110°C, making them suitable for a variety of demanding electrical applications.
UL listed and CSA recognized, the Ancor heat shrink ring terminals ensure safety and quality standards are met. The design features a water-tight seal and vibration resistance, essential for maintaining secure electrical connections in harsh environments. Tinned for corrosion resistance and made from pure copper, these terminals facilitate efficient current flow and long-term performance, even in challenging conditions. Each pack contains 25 ring terminals with a 1/4 inch screw size, providing a reliable supply for multiple connections and installations. Overall, Ancor's heat shrink ring terminals offer a combination of strength, protection, and ease of use, making them an essential component for professional electrical work in marine, automotive, and industrial settings.

Features:

• Cross linked polyolefin tubing provides superior strength and heat resistance compared to PVC tubing

• Heat activated adhesive lining ensures a waterproof seal against salt water, oils, acids, and sunlight

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage

• UL listed and CSA recognized for compliance with safety standards

• Shrinks to one-third of original size for a secure fit

• Shrinks at approximately 257°F (125°C)

• Operational temperature range from 40°C to 110°C

• Built-in heat activated adhesive provides strain relief and water-tight sealing

• Tinned copper construction for maximum corrosion resistance and current flow

• Brazed seam enhances overall strength and durability
