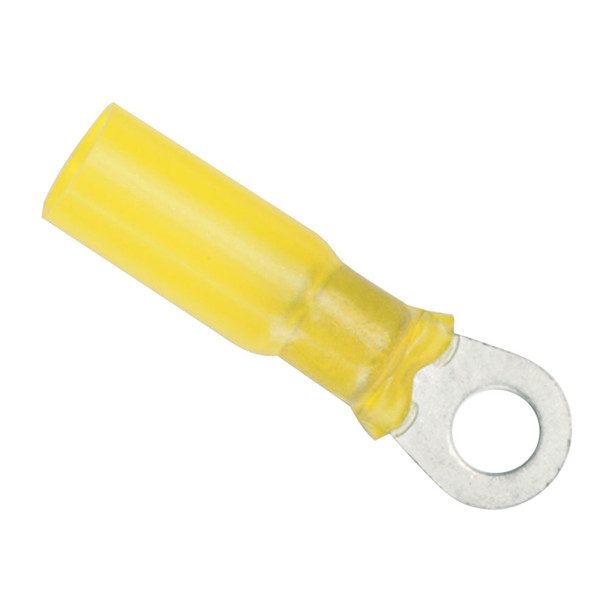

Ancor 12-10 Gauge 3/8 Inch Heat Shrink Ring Terminal - 25 Pack

12-10 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Gauge Size: 12-10
Screw Size: 3/8"
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257 F/125 C




• Operating temperature range 40 C to 110 C




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief




• Tinned for corrosion resistance




• Pure copper for maximum current flow




• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Gauge 3/8 inch heat shrink ring terminals are designed for reliable, high-quality electrical connections in demanding environments. Manufactured with cross-linked polyolefin tubing, these terminals are significantly stronger than standard PVC and resistant to burning. The heat-activated adhesive lining ensures an impervious seal against saltwater, oil, acids, and sunlight, providing excellent strain relief and preventing corrosion. The nylon insulator, preferred by marine and electrical professionals, offers superior resistance to UV exposure, water, oil, chemicals, vibration, and mechanical damage, ensuring longevity and durability in harsh conditions. UL listed and CSA recognized, these terminals meet rigorous safety and quality standards. The high shrink ratio allows the tubing to shrink to one-third of its original size when heated to 257°F (125°C), creating a water-tight seal and offering maximum vibration and strain relief. Constructed from pure copper with a brazed seam, these terminals facilitate maximum current flow and strength, and are tinned for enhanced corrosion resistance. The product’s operating temperature range from 40°C to 110°C makes it suitable for a variety of electrical applications. Designed for ease of installation, the terminals feature a 3/8 inch screw size, providing a secure connection point for heavy-duty wiring tasks. Whether used in marine, automotive, or industrial settings, the Ancor heat shrink ring terminals deliver dependable performance and long-lasting connections that withstand the test of time and environment. This 25-pack offers an economical solution for maintenance, repair, and installation projects requiring high-performance, corrosion-resistant terminals.

Features:

• Cross-linked polyolefin tubing for increased strength and heat resistance

• Heat-activated adhesive lining provides a water-tight seal and strain relief

• Nylon insulator offers UV, water, oil, chemical, vibration, and cut-through resistance

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size for secure fit and reliable sealing

• High-temperature shrinkage at 257°F (125°C)

• Operating temperature range from 40°C to 110°C

• Corrosion-resistant tinned copper construction for maximum conductivity

• Brazed seam enhances strength and durability
