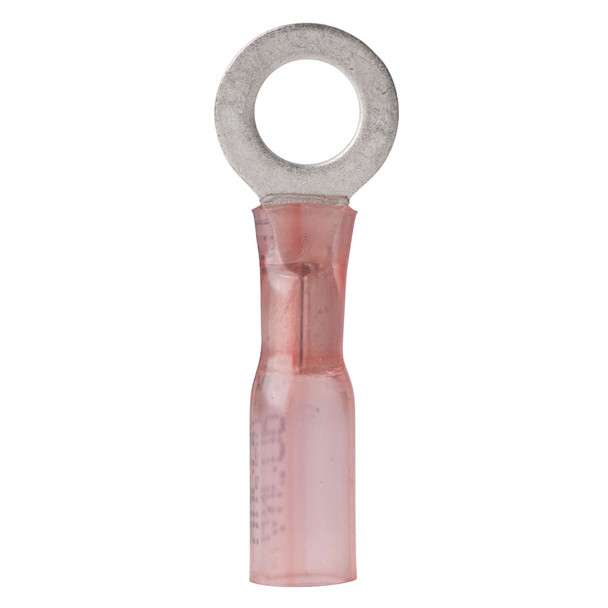

Ancor 22-18 Gauge Heat Shrink Ring Terminals, 3/8 inch, 25-Pack

22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 25-Pack

Wire Range:22-18
Screw Size: 3/8"
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257 F/125 C




• Operating temperature range 40 C to 110 C




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief




• Tinned for corrosion resistance




• Pure copper for maximum current flow




• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 22-18 Gauge Heat Shrink Ring Terminals provide a reliable and professional connection solution for marine, automotive, and electrical applications. Constructed with cross-linked polyolefin tubing, these terminals are significantly stronger and more durable than traditional PVC options, offering excellent resistance to heat, chemicals, and sunlight. The heat-activated adhesive lining ensures a sealed connection that resists saltwater, oil, acids, and UV exposure, making them ideal for harsh environments. With a nylon insulator favored by experts, these terminals provide superior resistance to vibration, water, and chemical damage, ensuring long-lasting performance even in demanding conditions. They are UL listed and CSA recognized, confirming their safety and quality standards. The high shrink ratio allows them to shrink down to one-third of their original size, providing a tight, waterproof seal that enhances vibration and strain relief. Designed to operate efficiently at temperatures from 40°C to 110°C (104°F to 230°F), these connectors are made from pure copper with a brazed seam, maximizing current flow and mechanical strength. Tinned for added corrosion resistance, they are suitable for a wide range of electrical wiring projects where durability and reliability are critical. Whether you are working on marine wiring, automotive projects, or industrial installations, the Ancor heat shrink ring terminals deliver secure, moisture-proof connections that stand the test of time.

Features:

• Cross-linked polyolefin tubing for increased strength and heat resistance

• Heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight

• Nylon insulator offers marine-grade resistance to UV, water, oil, chemicals, vibration, and cut-through damage

• UL Listed and CSA Recognized for safety and quality assurance

• High shrink ratio shrinks to one-third of original size for a tight, waterproof seal

• Shrinks at 257°F (125°C) for quick and reliable installation

• Operating temperature range from 40°C to 110°C (104°F to 230°F)

• Built-in heat-activated adhesive ensures vibration and strain relief

• Tinned copper construction for maximum corrosion resistance and current flow

• Brazed seam enhances strength and durability
