Description

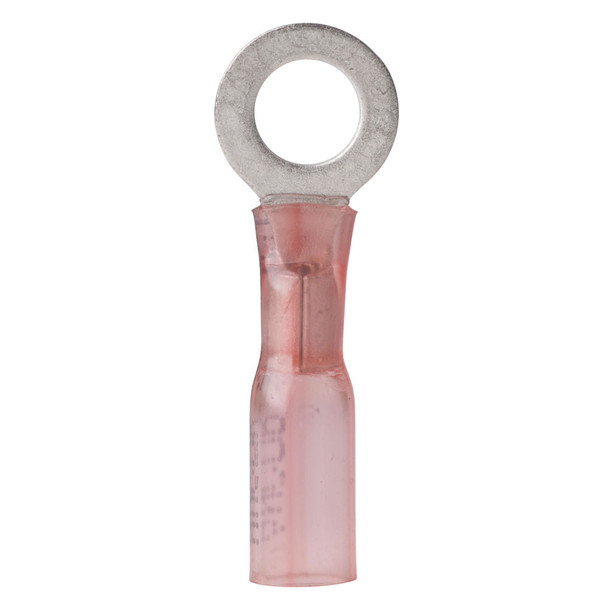

22-18 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack
Gauge Size: 22-18
Screw Size: #8
Quantity: 25
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 22-18
- mm: 0.3-0.8
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 22-18 Gauge #8 Heat Shrink Ring Terminal provides a reliable connection solution for marine, automotive, and electrical applications. Constructed with cross-linked polyolefin tubing, this terminal offers a significant strength advantage over traditional PVC insulation and resists burning, ensuring durability in demanding environments. The heat-activated adhesive lining creates an impervious seal that protects against saltwater, oil, acids, and sunlight, while also providing strain relief for a secure and long-lasting connection. The nylon insulator, favored by industry professionals, grants superior resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these terminals suitable for harsh conditions. UL listed and CSA recognized, these connectors meet rigorous safety standards. They feature the highest shrink ratio—shrinking to just one-third of their original size at 257°F (125°C)—ensuring a tight, waterproof fit. With an operating temperature range from 40°C to 110°C, they are versatile for various environments. The tinned copper construction enhances corrosion resistance and ensures maximum current flow, while the brazed seam adds structural strength. These terminals accommodate wire sizes from 22 to 18 gauge, with a screw size of #8, and are designed for quick, secure crimping. The package includes 25 pieces, making them ideal for large projects or ongoing maintenance. Ancor's heat shrink connectors deliver excellent vibration and strain relief, waterproof sealing, and corrosion resistance, making them a trusted choice for professional and DIY wiring tasks. Note that this product contains chemicals known to the State of California to cause reproductive harm; for more information, visit P65Warnings.ca.gov.
Features:
- Cross linked polyolefin tubing offers superior strength and fire resistance compared to PVC.
- Heat activated adhesive lining provides an impervious seal against environmental contaminants and strain relief.
- Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
- UL listed and CSA recognized for safety and quality assurance.
- Shrinks to one-third of original size at 257°F (125°C) for a secure fit.
- Operates effectively within a temperature range of 40°C to 110°C.
- Built-in heat-activated adhesive ensures waterproof sealing and vibration resistance.
- Tinned for corrosion resistance and made from pure copper for maximum current flow.
- Brazed seam construction enhances overall strength and durability.
- Designed for wire ranges from 22 to 18 gauge with #8 screw size.
