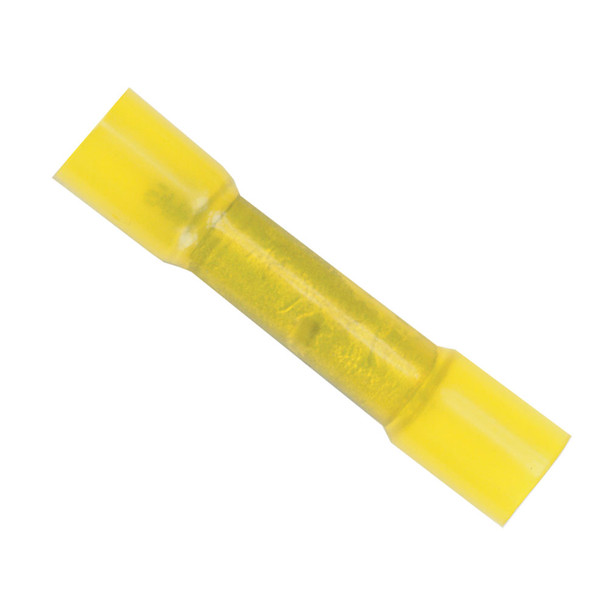

Ancor 12-10 Heatshrink Butt Connectors – 3-Pack for Marine and Automotive Wiring

12-10 Heatshrink Butt Connectors - 3-Pack

Guage Size: 12-10
Quantity: 3

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire range: 12-10




• mm: 3-5



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 12-10 Heatshrink Butt Connectors in a convenient 3-pack are designed for reliable electrical connections in marine, automotive, and industrial applications. Crafted from cross-linked polyolefin tubing, these connectors are significantly stronger and more durable than traditional PVC options, ensuring longevity even in harsh environments. The heat-activated adhesive lining provides a watertight seal that protects against salt water, oil, acids, and sunlight, while also offering strain relief to prevent connection failure. The nylon insulator, favored by industry professionals, delivers superior resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, making these connectors ideal for demanding conditions. UL listed and CSA recognized, these connectors meet high safety and quality standards for professional use. With a high shrink ratio that reduces to one-third of their original size when heated to 257°F (125°C), they ensure a tight and secure fit. Their operating temperature range from 40°C to 110°C allows for versatile application across various environments. Ancor’s heat shrink connectors feature built-in adhesive that shrinks to form a waterproof seal, providing excellent vibration and strain relief, which is critical in mobile and marine setups. Tinned for corrosion resistance and made of pure copper, these connectors facilitate maximum current flow and durability. The brazed seam enhances strength, ensuring a long-lasting connection. Suitable for wire sizes 12-10 AWG, these connectors are a reliable choice for professional installers seeking high-quality, corrosion-resistant, and weatherproof electrical connections in demanding applications.

Features:

• Cross-linked polyolefin tubing provides superior strength over PVC and resists burning.

• Heat-activated adhesive lining creates a waterproof, saltwater, oil, acid, and sunlight resistant seal.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL listed and CSA recognized for quality and safety compliance.

• High shrink ratio shrinks to one-third of original size for a secure fit.

• Shrinks at 257°F (125°C) for quick installation.

• Operating temperature range from 40°C to 110°C ensures durability in various environments.

• Built-in adhesive forms an airtight seal and enhances strain relief.

• Tinned copper construction provides corrosion resistance and optimal current flow.

• Brazed seam for maximum mechanical strength.

• Designed to accommodate wire sizes 12-10 AWG.
