Description

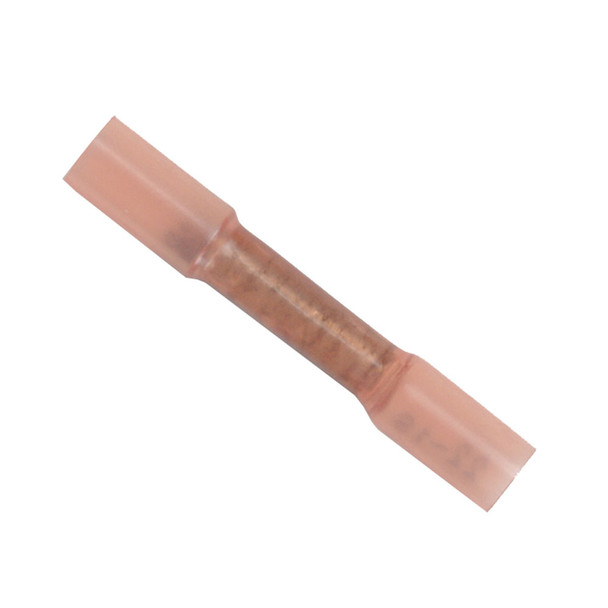

22-18 Heatshrink Butt Connetors - 25-Pack
Guage Size: 22-18
Quantity: 25
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire range: 22-18
- mm: 0.3 - 0.8
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor Part Number 309025 22-18 Heatshrink Butt Connectors offer reliable and durable connections for marine, automotive, and electrical applications. Crafted with cross-linked polyolefin tubing, these connectors are significantly stronger than PVC and resist burning when exposed to heat. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, ensuring long-lasting protection and strain relief in harsh environments. The nylon insulator, favored by professionals, offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these connectors suitable for demanding conditions.
Each connector is UL Listed and CSA Recognized, confirming their safety and performance standards. They feature a high shrink ratio, shrinking to one-third of their original size when heated to 257°F (125°C), and operate effectively within a temperature range from 40°C to 110°C. The tinned copper construction enhances corrosion resistance and maximizes current flow, while the brazed seam ensures maximum strength and durability. These connectors are designed to accommodate wire gauges from 22 to 18, with a range of approximately 0.3 to 0.8 millimeters.
Ideal for securing electrical connections in marine, automotive, and industrial applications, the Ancor heat shrink butt connectors provide a water-tight seal, vibration resistance, and strain relief. Their design ensures a secure, long-lasting connection that withstands exposure to harsh elements, vibrations, and mechanical stress. The package includes 25 connectors, making it suitable for both small and large projects. With a focus on safety, these connectors are manufactured with corrosion-resistant materials and meet rigorous industry standards, offering dependable performance in critical wiring tasks.
Features:
- Cross-linked polyolefin tubing for superior strength and heat resistance
- Heat-activated adhesive lining creates a waterproof, saltwater, and chemical-resistant seal
- Nylon insulator provides marine-grade resistance to sunlight, water, and chemicals
- UL Listed and CSA Recognized for safety and quality assurance
- Shrinks to one-third of original size for a secure fit
- Operates effectively within temperature range from 40°C to 110°C
- Tinned copper for maximum corrosion resistance and optimal current flow
- Brazed seam for added strength and durability
- Suitable for wire gauges 22-18, approximately 0.3-0.8 mm
- Provides water-tight sealing, vibration, and strain relief in harsh environments
