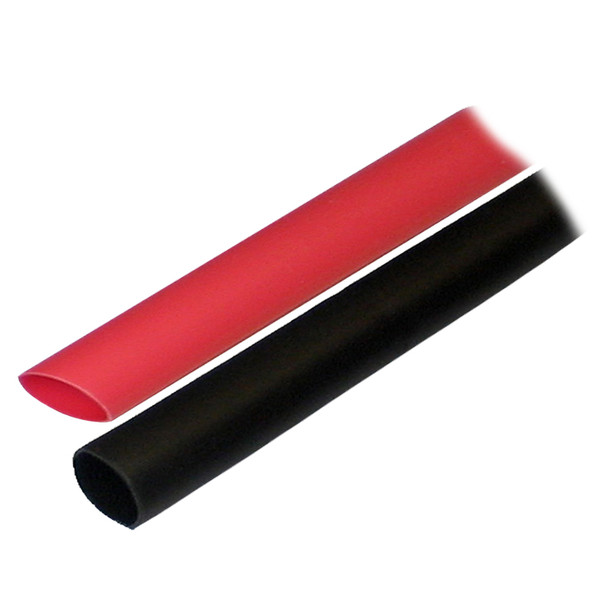

Ancor 305602 Adhesive Lined Heat Shrink Tubing (ALT) - 1/2 Inch x 3 Inch, Black and Red, 2-Pack

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 3" - 2-Pack - Black/Red

Package of 1 Black/1 Red 3"(7.6cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)

Wire Range: 8-4 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This package includes two sections of Ancor's high-quality adhesive lined heat shrink tubing, each measuring 3 inches in length with a 1/2 inch diameter that shrinks to 5/32 inch. Designed for durability and reliability, these tubes are suitable for wiring applications where a secure, sealed connection is essential. The dual-color (black and red) design allows for easy identification and organization of electrical lines, reducing installation errors and enhancing system clarity. The tubing's cross-linked polyolefin construction offers superior strength compared to PVC, ensuring long-lasting performance even in demanding environments. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight while also offering strain relief to protect connections from mechanical stress. These features make the tubing ideal for marine, automotive, and outdoor electrical projects where moisture and environmental resistance are critical. The tubing shrinks to one-third of its original size when exposed to 257°F (125°C), ensuring a tight fit around wiring and connectors. Its operating temperature range spans from -40°C to 110°C, allowing it to perform reliably in extreme conditions. Certified under UL 224, this heat shrink tubing adheres to rigorous safety standards, ensuring peace of mind during installation and operation. Please note that the product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks; consult the P65Warnings.gov website for detailed safety information.

Features:

• Cross-linked polyolefin tubing provides superior strength over PVC and resists burning

• Heat-activated adhesive lining creates an impervious seal against moisture, saltwater, oils, and acids, while also providing strain relief

• Highest shrink ratio, reducing to one-third of its original size for a secure fit

• Shrinks uniformly at 257°F (125°C)

• Operates effectively within a temperature range of -40°C to 110°C, suitable for harsh environments
