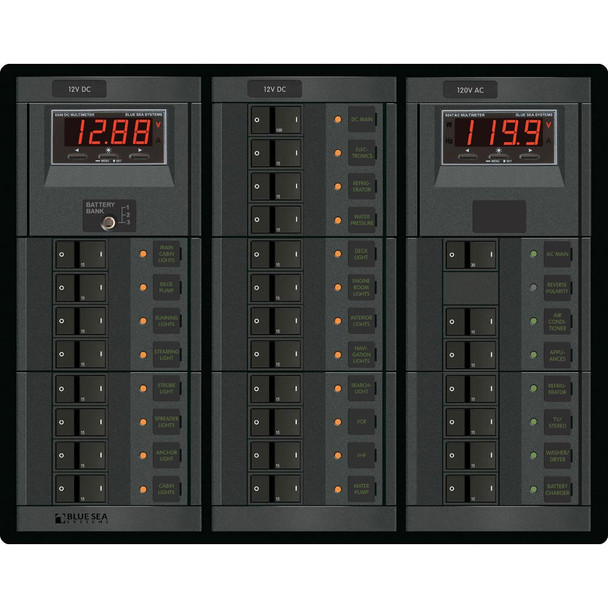

Blue Sea Systems 1218 12V DC Main and 120V AC Main Panel with 19 and 6 Positions

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application

• AC and DC panel amperage determined by AC Main and DC Main circuit breakers

• Modular manufacturing design reduces manufacturing time

• Interchangeable modular design eliminates custom engineering and metal fabrication

• Flexible modifications

• Flexible panel orientation (panels without meters)

Specifications:

• Positions: 6-AC / 19-DC

• Nominal Voltage: 120V AC / 12V DC

• Height: 10.75" (273.05mm)

• Width: 13.63" (346.2mm)

• Depth: 4.00" (101.6mm)

• Weight: 12.80lb (5.81kg)

Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1218 panel offers a versatile solution for managing both DC and AC electrical systems in a compact design. Featuring a 12-volt DC main circuit breaker with six positions and a 120-volt AC main breaker with nineteen positions, this panel provides reliable control and distribution capabilities for a variety of applications. Its modular manufacturing design ensures quick assembly and straightforward modifications, reducing installation time and eliminating the need for custom engineering or metal fabrication. The panel’s flexible orientation options without meters make it adaptable to different installation environments, providing a streamlined solution for electrical distribution needs.

This panel is equipped with main circuit breakers rated up to 100A per pole, suitable for demanding electrical setups. The amperage for AC and DC circuits is determined by the respective main circuit breakers, allowing for customizable protection levels. The sturdy construction measures approximately 10.75 inches in height, 13.63 inches in width, and 4 inches in depth, with a weight of around 12.8 pounds. The design supports efficient organization and easy access to circuit breakers and meters, enhancing system reliability and maintenance.

Included with the panel are essential components such as black square labels for both AC and DC circuits, flat rocker circuit breakers ranging from 15A to 100A for various branch and main circuits, and digital multi-function meters with alarms for both AC and DC systems. These features enable comprehensive monitoring and control, ensuring safety and operational efficiency. The panel’s robust construction and flexible configuration options make it suitable for marine, RV, or other mobile and stationary electrical systems, providing a dependable power management solution tailored to your specific needs.

Features:

• 12V DC main circuit breaker with six positions for flexible DC power management

• 120V AC main circuit breaker with nineteen positions for comprehensive AC control

• Main breakers rated up to 100A per pole to suit demanding electrical applications

• Modular manufacturing design for quick assembly and easy modifications

• Interchangeable modular components eliminate the need for custom engineering

• Flexible panel orientation options without meters for versatile installation
