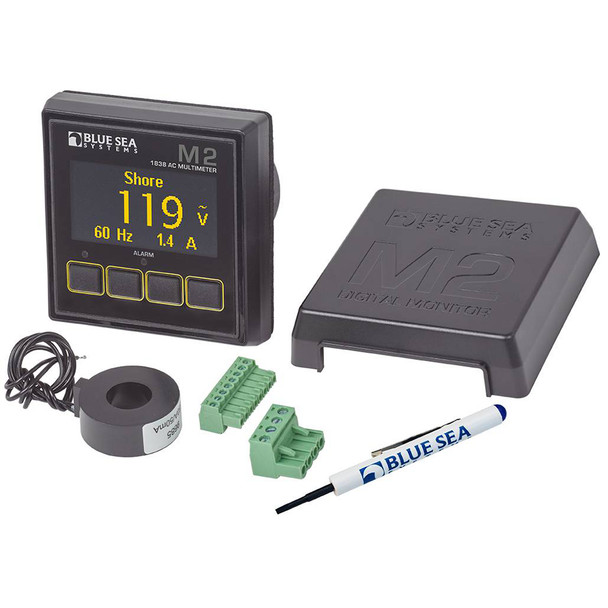

Blue Sea Systems 1838 M2 AC Multimeter for Monitoring AC Amps, Volts, and Hz

M2 AC Multimeter

Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)

Features:

• Auto-dimming, bright OLED display is easy to read

• Easy to adjust

• 92dB alarm on all models

• Isolated MOSFET relay

Specifications:

• Meter: Current, Frequency, Power, Voltage

• Function: 50 to 250V to 300A

• Alarms: High/Low Current, High/Low Frequency, High/Low Voltage

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC

• Maximum Power Consumption: 1.00Watt

• Minimum Power Consumption: 0.3 Watt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1838 M2 AC Multimeter is a versatile tool designed for accurate measurement and monitoring of AC electrical parameters. Featuring a large, bright OLED display, it provides clear readings of AC amperage, voltage, and frequency, making it suitable for electrical professionals and technicians. The multimeter supports programmable current transformer ratios, allowing for flexible configuration in various applications. With its ability to measure two voltages and two circuits simultaneously, this device enhances efficiency and precision in electrical diagnostics. Its compact design and user-friendly controls facilitate easy adjustments and quick setup, ensuring reliable performance in demanding environments. The device includes alarms for high or low current, voltage, and frequency, with a loud 92dB alert to notify users instantly of critical conditions. The isolation MOSFET relay ensures safe operation and accurate switching. Its power requirements are modest, consuming less than 1 watt during operation, with an input voltage range from 7V to 70V DC. The multimeter's dimensions are designed for ease of handling, providing a balance between functionality and portability. With comprehensive features and robust construction, the Blue Sea Systems 1838 M2 AC Multimeter is an essential instrument for electrical measurements where precision and reliability are paramount. For detailed operation instructions, refer to the owner’s manual available online. Note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are recognized to cause health risks; please review the safety information at P65Warnings.ca.gov.

Features:

• Auto-dimming, bright OLED display for easy readability

• Simple adjustment controls for quick setup

• 92dB alarm for immediate alert on critical conditions

• Isolated MOSFET relay for safe switching

• Supports programmable current transformer ratios

• Measures AC amperage, voltage, and frequency simultaneously

• High/Low alarms for current, voltage, and frequency monitoring

• Compatible with 50 to 250V and up to 300A measurements

• Low power consumption with a maximum of 1 watt
