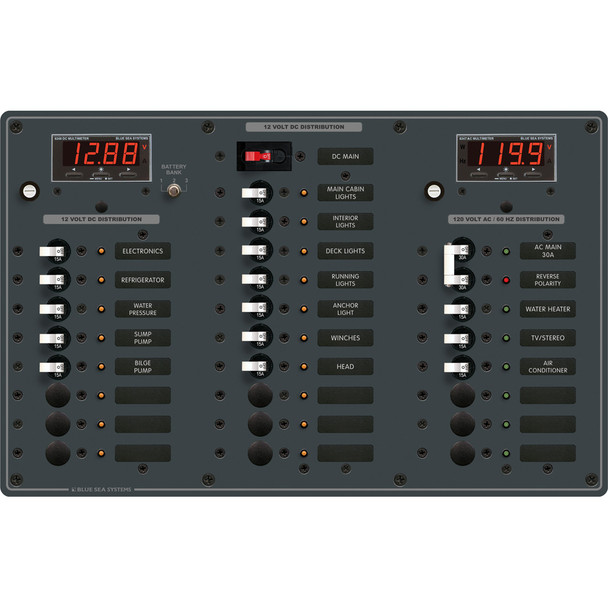

Blue Sea Systems 8408 AC Main and DC Main Distribution Panel with Digital Multimeters

• 120V AC

• 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Detailed installation instructions and cutout template included

• Countersunk mounting holes throughout

• Includes set of 60 common AC and DC Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8408 distribution panel provides a comprehensive solution for managing AC and DC electrical systems in marine, RV, or industrial applications. Designed with durability and ease of installation in mind, this panel features a 6-position AC main breaker and an 18-position DC main breaker, supporting up to 100 amps of AC and 50 amps of DC load capacity. The panel comes pre-wired with all AC and DC buses installed, ensuring a straightforward setup process. All circuit positions are equipped with ON-indicating LEDs for quick status recognition and label backlighting pre-installed for clear identification of circuits. The integrated AC breakers include a 30A main and three 15A breakers, while the DC side features a 100A main breaker and twelve 15A breakers. Included digital multimeters with alarms—model 8247 for AC and 8248 for DC—allow for real-time voltage monitoring and alert you to potential issues, enhancing system safety and reliability. Constructed from heavy-duty 1/8-inch aluminum alloy with a corrosion-resistant polyurethane finish, the panel is built to withstand harsh environments. Countersunk mounting holes and comprehensive installation instructions facilitate secure mounting and proper setup. Additionally, the panel includes a set of 60 large format labels for circuit identification, with over 500 labels available for custom labeling needs. The product is designed with safety and compliance in mind, featuring warning labels regarding chemical exposure, and is suitable for a variety of electrical distribution applications. For detailed installation guidance, the owner’s manual is available online.

Features:

• AC Main + 6 Positions / DC Main + 18 Positions for flexible power distribution

• Pre-wired with all AC and DC buses for quick installation

• Integrated ON-indicating LEDs in all circuit positions for status monitoring

• Includes digital multimeters with alarms for AC and DC voltage monitoring

• Heavy-duty 1/8-inch aluminum alloy construction with corrosion-resistant polyurethane finish

• Countersunk mounting holes and comprehensive installation instructions included

• Set of 60 large format labels with over 500 additional labels available for circuit identification

• Supports maximum panel amperage of 100A AC and 50A DC for reliable operation
